Model
Whirlpool WED8410SW2
27" Electric Dryer
Parts Sections (5)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelWhirlpool
WED8410SW227" Electric Dryer
5 diagrams142 parts
Parts Sections (5)

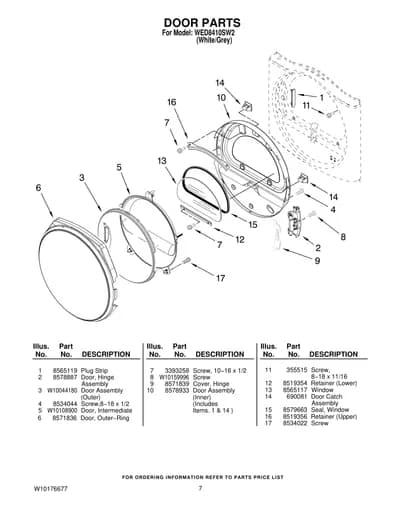

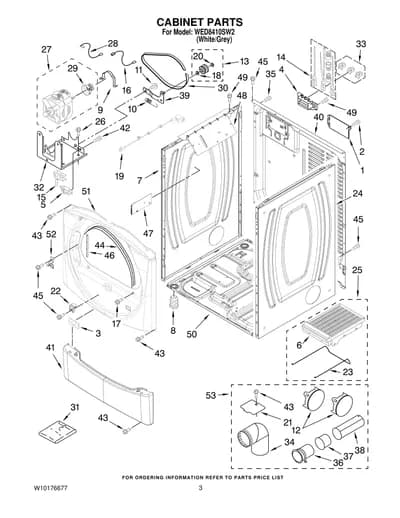

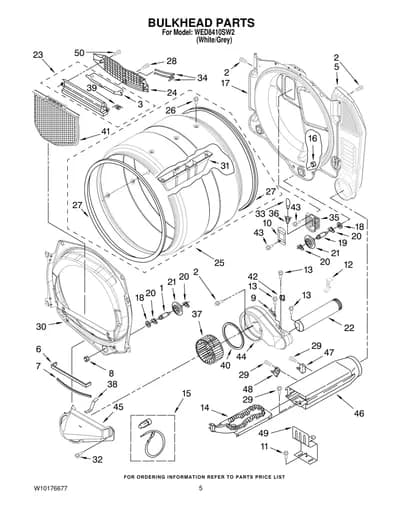

Diagram

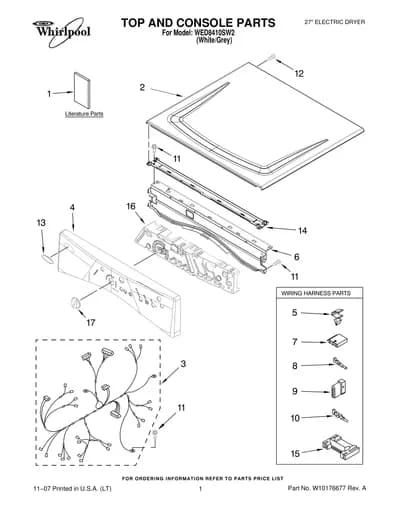

TOP AND CONSOLE PARTS
Parts in TOP AND CONSOLE PARTS
19 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | W10057250 Use & Care Guide | - |
| 1 | – | W10068660 Tech Sheet | - |
| 1 | – | W10057240 Guide, Quick Start | - |
| 2 |  | WPW10336080replaces 8563730 Top | $152.95 RepairClinic |
| 3 |  | Harness, Main | - |
| 4 | | Panel, Console | - |
| 5 |  | WP3394427replaces 3394427 Clip, Harness | $3.38 Part Advantage |
| 6 |  | WP8565237replaces 8565237 Bracket, Console | $72.86 Part Advantage |
| 7 |  | Connector, Sensor | - |
| 8 |  | WP94614replaces 94614 Terminal | $4.95 ApplianceParts Pro |
| 9 |  | Plug, Terminal | - |
| 10 |  | WP596797replaces 94613 Terminal | $7.95 ApplianceParts Pro |
| 11 |  | WP488729replaces 3390647 Screw, 8−18 x 1/2 | $2.41 Part Advantage |
| 12 | – | 3400238 Screw, 2−28 x 1/2 | - |
| 13 | – | W10117943 Badge, Assembly | - |
| 14 |  | WPW10266747replaces 8574968 Channel, Water | - |
| 15 |  | Connector, | $40.40 ApplianceParts Pro |
| 16 |  | WP8571920replaces 8571920 Assembly, User Interface | - |
| 17 | | 8574974NLA Knob, Assembly | Discontinued |
