Model
Whirlpool WED9400VE0
Electric Dryer
Parts Sections (5)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelWhirlpool
WED9400VE0Electric Dryer
5 diagrams173 parts

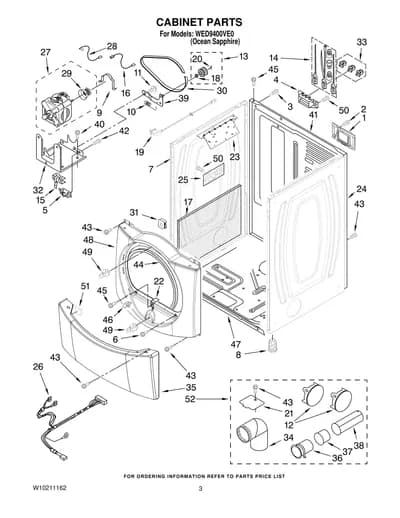

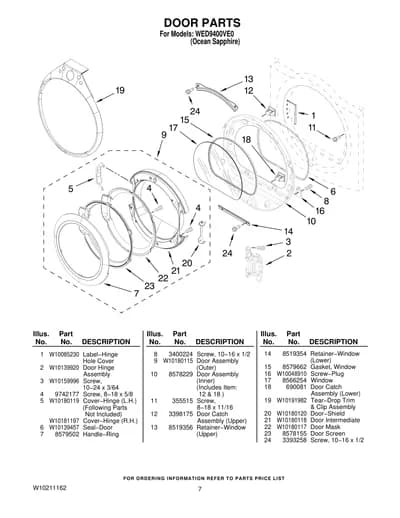

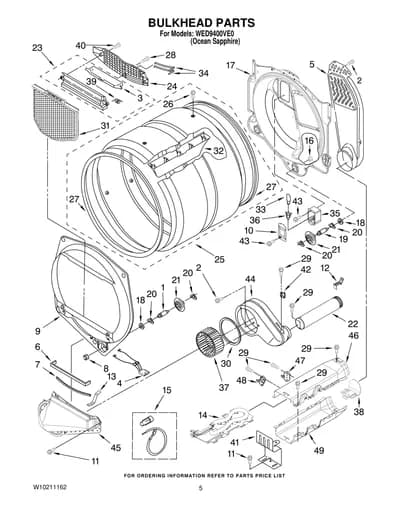

Parts Sections (5)
Diagram

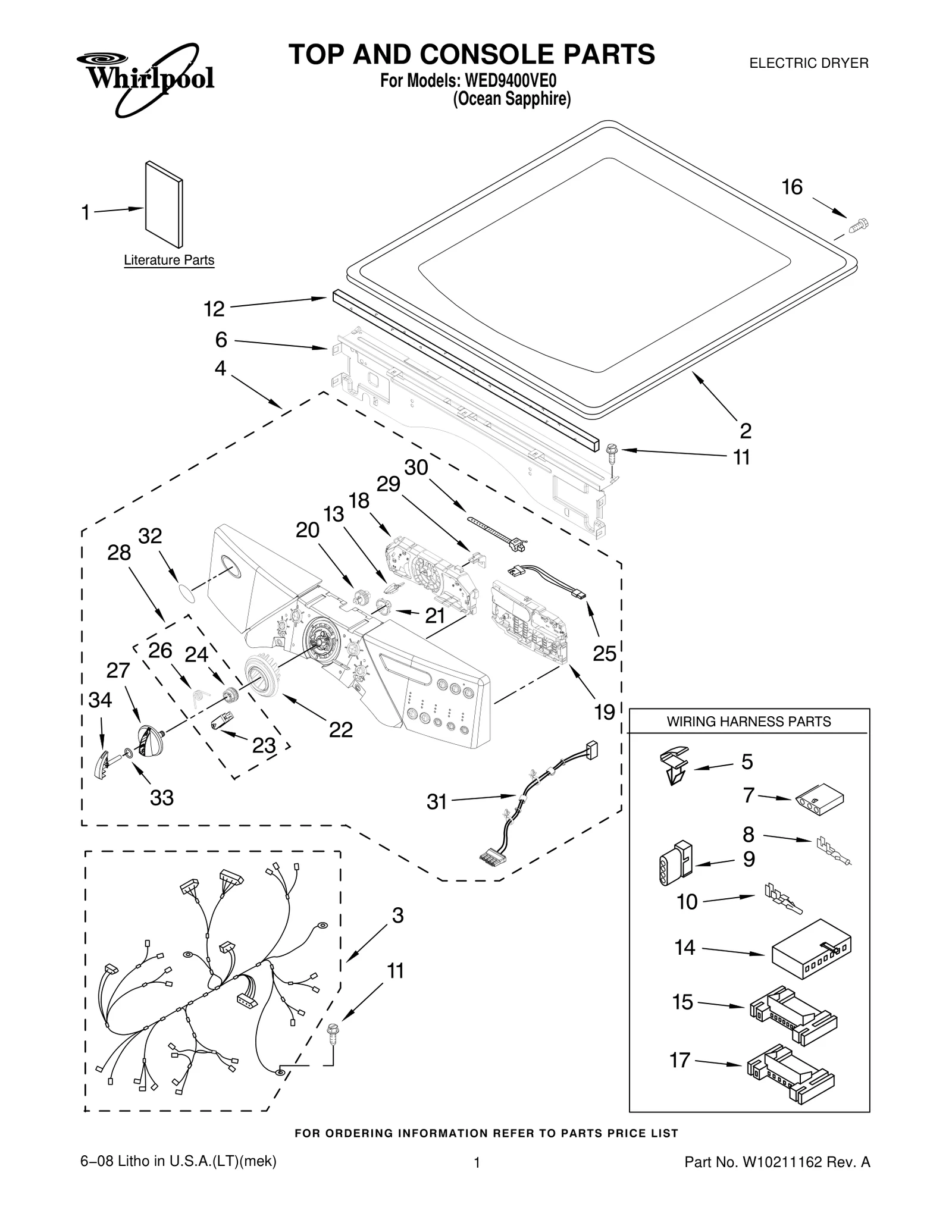

TOP AND CONSOLE PARTS
Parts in TOP AND CONSOLE PARTS
37 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | W10182361 Use & Care Guide | - |
| 1 | – | W10177459 Tech Sheet | - |
| 1 | – | W10134980 Installation, Diagnostic Guide | - |
| 1 | – | W10111226 Guide, Quick Start | - |
| 2 |  | Top | - |
| 3 | | Harness, Main | - |
| 4 | | W10191973NLA Panel, Console (Includes Items: 20,21,22,27,28) | Discontinued |
| 5 |  | WP3394427replaces 3394427 Clip, Harness | $3.38 Part Advantage |
| 6 | | W10006840NLA Bracket, Console | Discontinued |
| 7 |  | Connector, Sensor | - |
| 8 |  | WP94614replaces 94614 Terminal | $4.95 ApplianceParts Pro |
| 9 |  | Plug, Terminal | - |
| 10 |  | WP596797replaces 94613 Terminal | $7.95 ApplianceParts Pro |
| 11 |  | WP488729replaces 3390647 Screw, 8−18 x 1/2 | $2.41 Part Advantage |
| 12 |  | Foam−Seal | - |
| 13 |  | W10012480replaces W10030070 Array, Power | $11.95 ApplianceParts Pro |
| 14 |  | Connector, 7−Circuit | - |
| 15 |  | Connector, | $40.40 ApplianceParts Pro |
| 16 | | 303776replaces 98139 Screw, 8−32 x 1/32 | - |
| 17 |  | Connector, 5−Circuit | - |
| 18 | | W10121375NLA User Interface (Includes Item: 13.) | Discontinued |
| 19 | | W10172214NLA User Interface | Discontinued |
| 20 | | Encoder−Wheel | - |
| 21 | | W10012440NLA Retainer, Snap | Discontinued |
| 22 | | W10012410NLA Knob, Light Ring (Includes: | Discontinued |
| 23 | – | W10012810 Rast, Wheel Assembly (Service Only With Illus. 28 ) | - |
| 24 | – | W10012450 Detent Wheel (Service Only With Illus. 28 ) | - |
| 25 | | W10095960NLA Harness, Communication | Discontinued |
| 26 | – | W10012820 Knob, Spring (2) (Service Only With Illus. 28 ) | - |
| 27 | | W10116704NLA Knob, Control (Includes: | Discontinued |
| 28 | | Encoder−Wheel Kit (Includes Item: 23, 24, & 26 ) | - |
| 29 |  | Clip, Harness | - |
| 30 |  | W10740218replaces 3391018 Tie, Cable | $146.39 Part Advantage |
| 31 | | W10111020NLA Power Cable User Interface | Discontinued |
| 32 | – | W10117943 Badge | - |
| 33 | – | W10012830 Knob, O−Ring | - |
| 34 | – | W10029940 Knob, Cap | - |
