Model
Whirlpool WERP4110SB2
30" Electric Ceran Freestanding Range Self Clean Oven
Parts Sections (6)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelWhirlpool
WERP4110SB230" Electric Ceran Freestanding Range Self Clean Oven
6 diagrams179 parts
Parts Sections (6)
Diagram

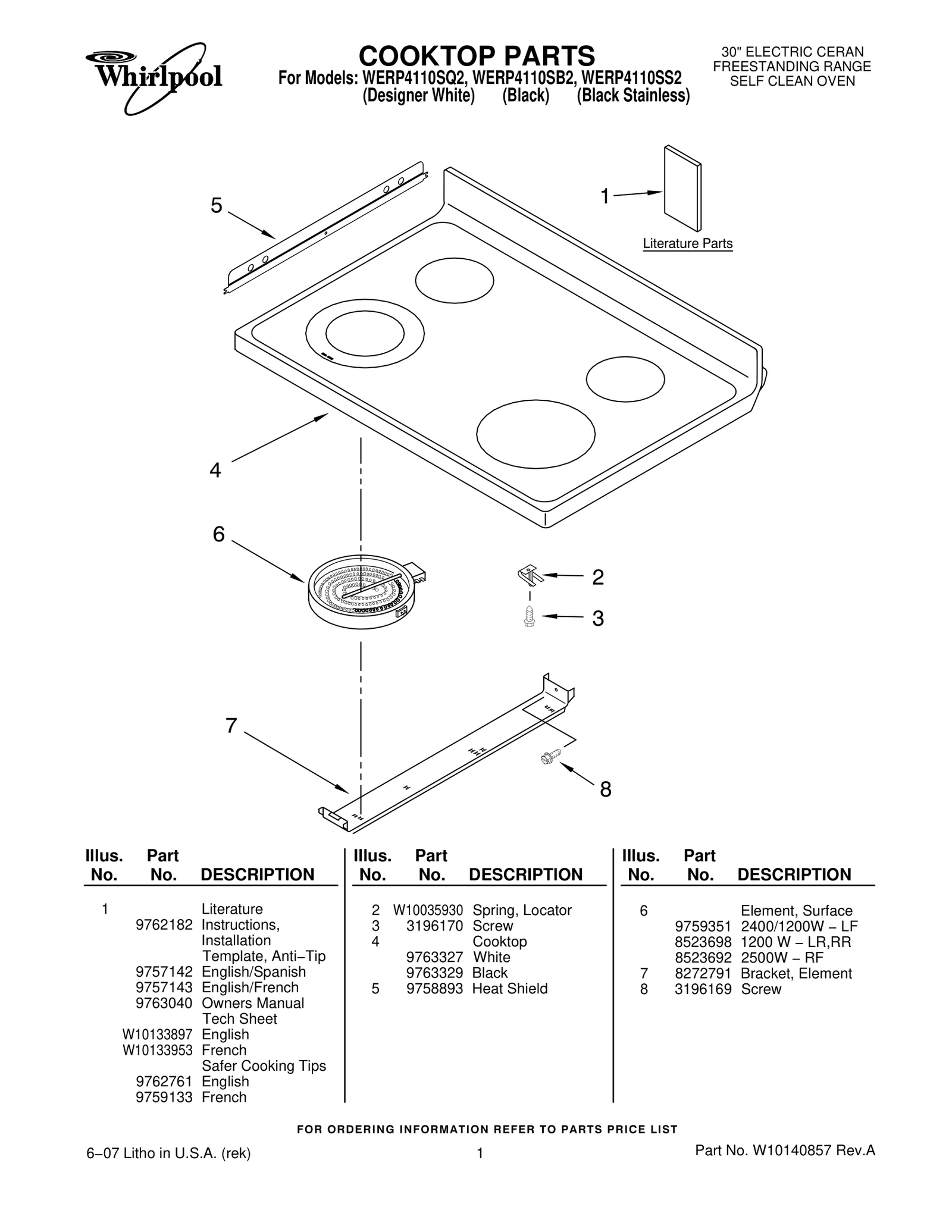

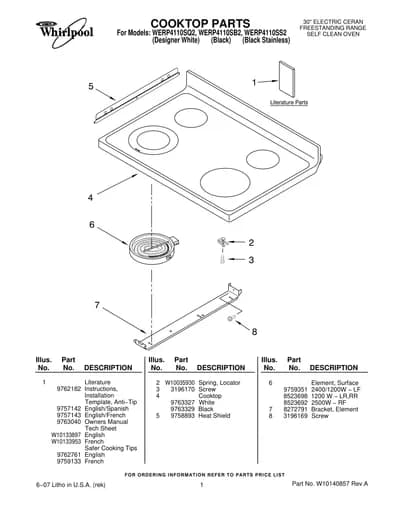

COOKTOP PARTS
Parts in COOKTOP PARTS
18 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | 9762182 Instructions, | - |
| 1 | – | 9757142 English/Spanish | - |
| 1 | – | 9757143 English/French | - |
| 1 | – | 9763040 Owners Manual | - |
| 1 | – | W10133897 English | - |
| 1 | – | W10133953 French | - |
| 1 | – | 9762761 English | - |
| 1 | – | 9759133 French | - |
| 2 |  | 3149191replaces W10035930 Spring, Locator | $6.29 Parts Dr |
| 3 |  | WP3196170replaces 3196170 Screw | $5.00 RepairClinic |
| 4 | – | 9763327 Cooktop — White | - |
| 4 | – | 9763329 Cooktop — Black | - |
| 5 | – | 9758893 Heat Shield | - |
| 6 |  | W10823692replaces 9759351 Element, Surface — 2400/1200W − LF | $119.42 Parts Dr |
| 6 |  | W10823711replaces 8523698 1200 W − LR,RR | $92.55 Part Advantage |
| 6 |  | W10823696replaces 8523692 Element, Surface — 2500W − RF | $87.70 Amazon |
| 7 | | Bracket, Element | - |
| 8 |  | WP3196557replaces 3196169 Screw | $2.30 Part Advantage |
