Model
Whirlpool WFC7500VW0
Compact Automatic Washer
Parts Sections (6)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelWhirlpool
WFC7500VW0Compact Automatic Washer
6 diagrams120 parts
Parts Sections (6)
Diagram

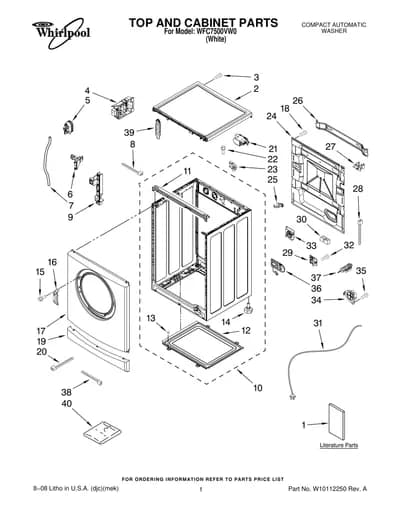

TOP AND CABINET PARTS
Parts in TOP AND CABINET PARTS
42 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | W10175588 Use & Care Guide | - |
| 1 | – | W10179063 Quick Start Guide | - |
| 1 | – | W10180055 Energy Guide | - |

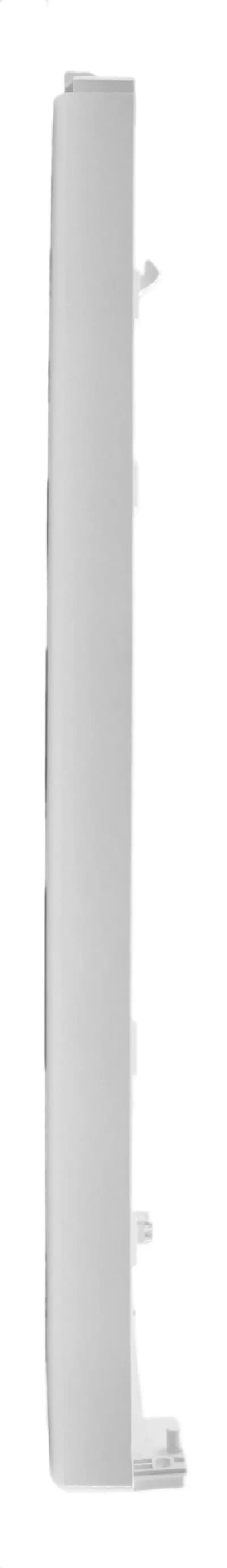

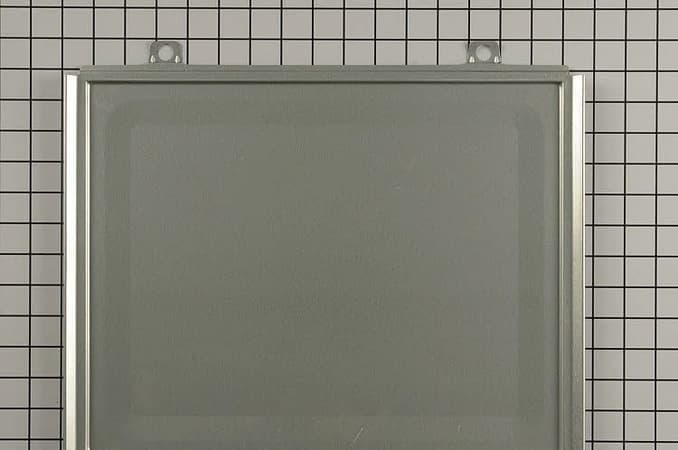

| 2 |  | WPW10192961replaces W10192961 Top | $169.81 PartSelect |
| 3 |  | W10852931replaces W10193038 Screw, Top | - |
| 4 | | W10192965NLA MCU, Assembly | Discontinued |
| 5 | | W10192975NLA Switch, Pressure | Discontinued |
| 6 | | W10193054NLA Support, Pressure Switch | Discontinued |
| 7 |  | Hose, Pressure Switch | - |
| 8 | | Tie, Wire | - |
| 9 | | Retainer, Channel | - |
| 10 | – | W10192956 Cabinet, Service | - |
| 11 | | Brace, Control | - |
| 12 |  | Cover, Base | - |
| 13 | | Clip, Base Cover | - |

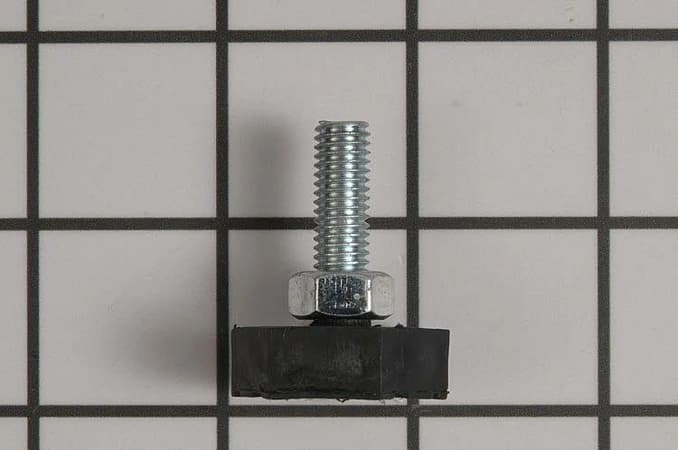

| 14 |  | WPW10192970replaces W10192970 Foot−Leveling | $4.04 Parts Dr |
| 15 |  | Screw, Self−Tap | $3.59 RepairClinic |

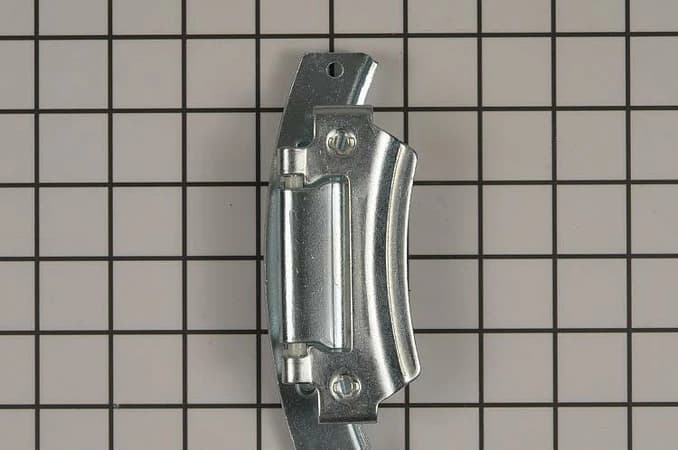

| 16 |  | W11243775replaces W10193050 Hinge, Door | - |
| 17 | | WPW10192967replaces W10192967 Panel, Front | - |
| 18 | | Screw | - |
| 19 | | WPW10193004replaces W10193004 Panel, Toe | $29.33 Part Advantage |
| 20 | | Tie, Wire | - |
| 21 |  | W10347721replaces W10192950 Filter−RFI | - |
| 22 | – | W10193112 Screw | - |
| 23 | – | W10193097 Retainer, Clamp | - |

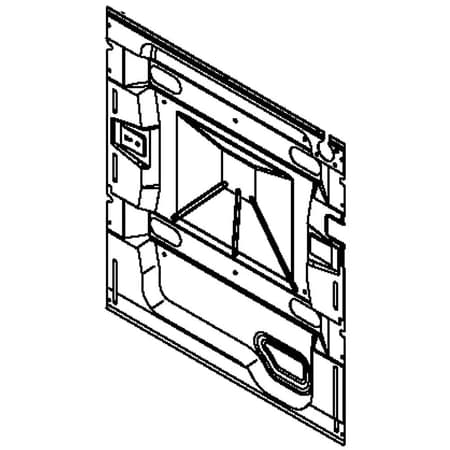

| 24 |  | Panel, Rear | - |
| 25 | – | W10192982 Clip, Drain Hose | - |
| 26 | | Bracket, Transport | - |
| 27 | | Clip, Drain Hose | - |
| 28 | – | W10193091 Tie, Wire | - |
| 29 | | Clip, Assembly | - |
| 30 | | Strain−Relief | - |

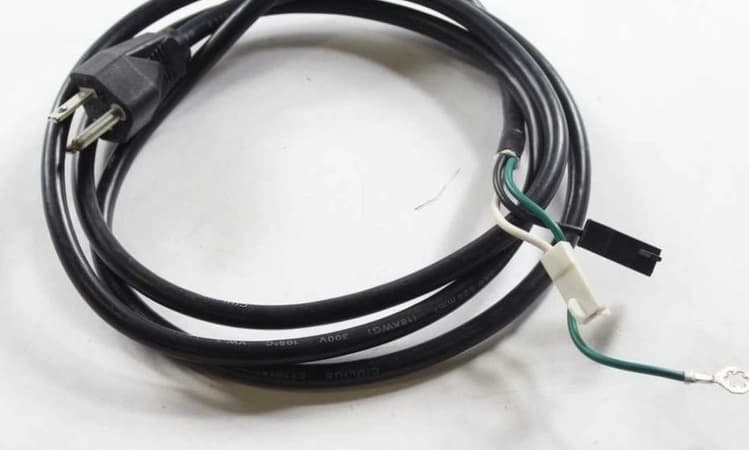

| 31 |  | Cord, Power | - |
| 32 | | Screw | - |
| 33 | – | W10193023 Clip, Power Cord | - |

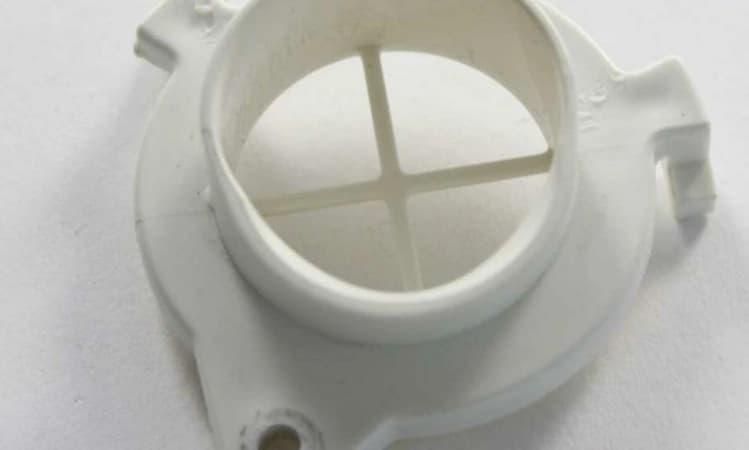

| 34 |  | Cover, Vent | - |
| 35 | – | W10193108 Screw | - |
| 36 | | W10917818replaces W10193021 Cover, Transport | $11.77 PartSelect |

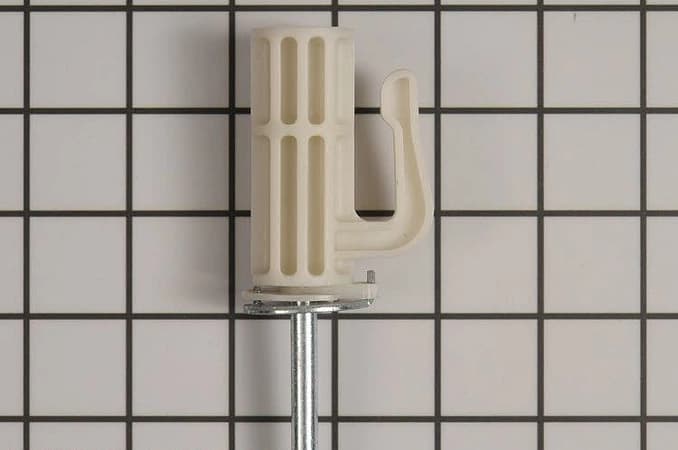

| 37 |  | WPW10192968replaces W10192968 Bolt, Assembly | $31.26 Parts Dr |
| 38 | | Tie, Wire | - |

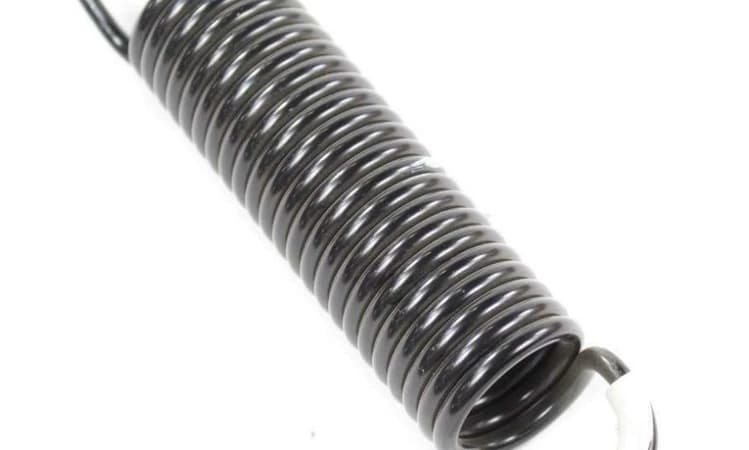

| 39 |  | Spring, Suspension | - |
| 40 |  | Kit, Inlet Hose & U−Bend (Includes Hot & Cold Inlet Hoses & U−Bend) | - |
