Model
Whirlpool WFE301LVS0
30" Electric Freestanding Standard Clean Range
Parts Sections (6)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelWhirlpool
WFE301LVS030" Electric Freestanding Standard Clean Range
6 diagrams145 parts
Parts Sections (6)
Diagram

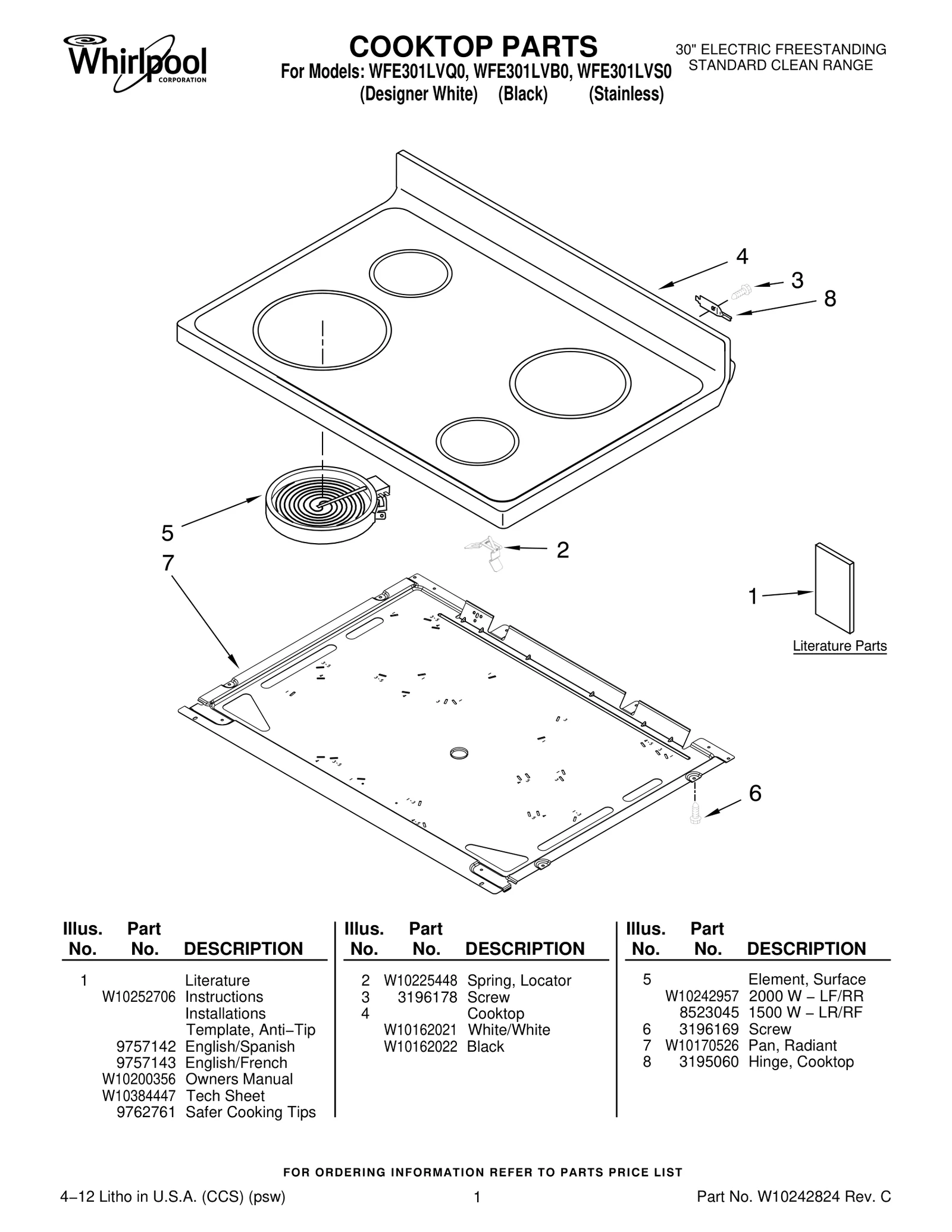

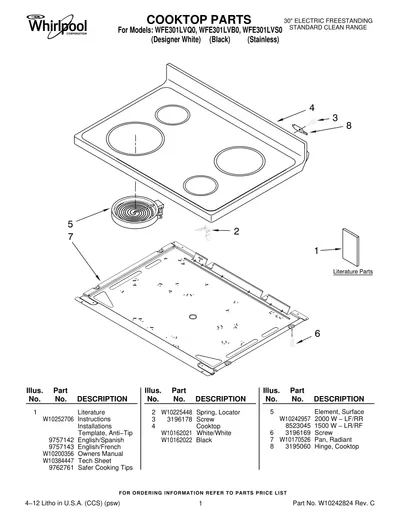

COOKTOP PARTS
Parts in COOKTOP PARTS
15 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | W10252706 Instructions | - |
| 1 | – | 9757142 English/Spanish | - |
| 1 | – | 9757143 English/French | - |
| 1 |  | W10200356NLA Owners Manual | Discontinued |
| 1 | – | W10384447 Tech Sheet | - |
| 1 | – | 9762761 Safer Cooking Tips | - |
| 2 |  | WPW10225448replaces W10225448 Spring, Locator | $4.75 Part Advantage |
| 3 |  | W11233072replaces 3196178 Screw | $8.78 Part Advantage |
| 4 |  | W10248204replaces W10162021 Cooktop — White/White | - |
| 4 |  | W10248203replaces W10162022 Cooktop — Black | $386.68 RepairClinic |
| 5 |  | WPW10242957replaces W10242957 Element, Surface — 2000 W − LF/RR | $137.35 Part Advantage |
| 5 |  | WP8523045replaces 8523045 Element, Surface — 1500 W − LR/RF | $157.79 Parts Dr |
| 6 |  | WP3196557replaces 3196169 Screw | $2.30 Part Advantage |
| 7 | | Pan, Radiant | - |
| 8 |  | WP3195060replaces 3195060 Hinge, Cooktop | $3.87 Part Advantage |
