Model
Whirlpool WFE364LVQ0
30" Electric Ceran Freestanding Range
Parts Sections (6)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelWhirlpool
WFE364LVQ030" Electric Ceran Freestanding Range
6 diagrams178 parts
Parts Sections (6)
Diagram

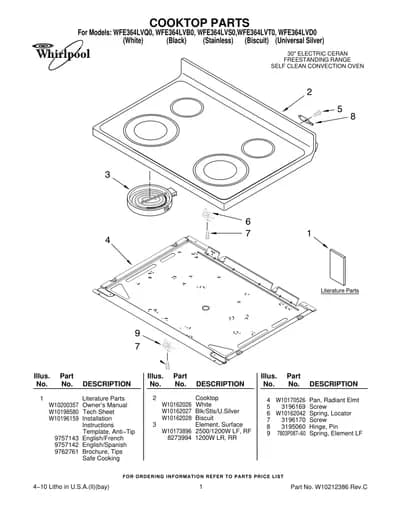

COOKTOP PARTS
Parts in COOKTOP PARTS
17 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | W10200357 Owner’s Manual | - |
| 1 | – | W10198580 Tech Sheet | - |
| 1 | – | W10196159 Installation Instructions Template, Anti−Tip | - |
| 1 | – | 9757143 English/French | - |
| 1 | – | 9757142 English/Spanish | - |
| 1 | – | 9762761 Brochure, Tips Safe Cooking | - |
| 2 |  | W10239438replaces W10162026 Cooktop — White | - |
| 2 | – | W10162027 Cooktop — Blk/Stls/U.Silver | - |
| 2 | | W10239443replaces W10162028 Cooktop — Biscuit | - |
| 3 |  | WPW10275049replaces W10173896 2500/1200W LF, RF | $147.65 Part Advantage |
| 3 |  | W11171119replaces 8273994 1200W LR, RR | $85.73 Part Advantage |
| 4 | | Pan, Radiant Elmt | - |
| 5 |  | WP3196557replaces 3196169 Screw | $2.30 Part Advantage |
| 6 |  | WPW10225448replaces W10162042 Spring, Locator | $4.75 Part Advantage |
| 7 |  | WP3196170replaces 3196170 Screw | $5.00 RepairClinic |
| 8 |  | WP3195060replaces 3195060 Hinge, Pin | $3.87 Part Advantage |
| 9 | – | N/S 7803P087−60 Spring, Element LF | - |
