Model
Whirlpool WFE371LVQ0
30" Electric Ceran Freestanding Range
Parts Sections (6)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelWhirlpool
WFE371LVQ030" Electric Ceran Freestanding Range
6 diagrams181 parts
Parts Sections (6)
Diagram

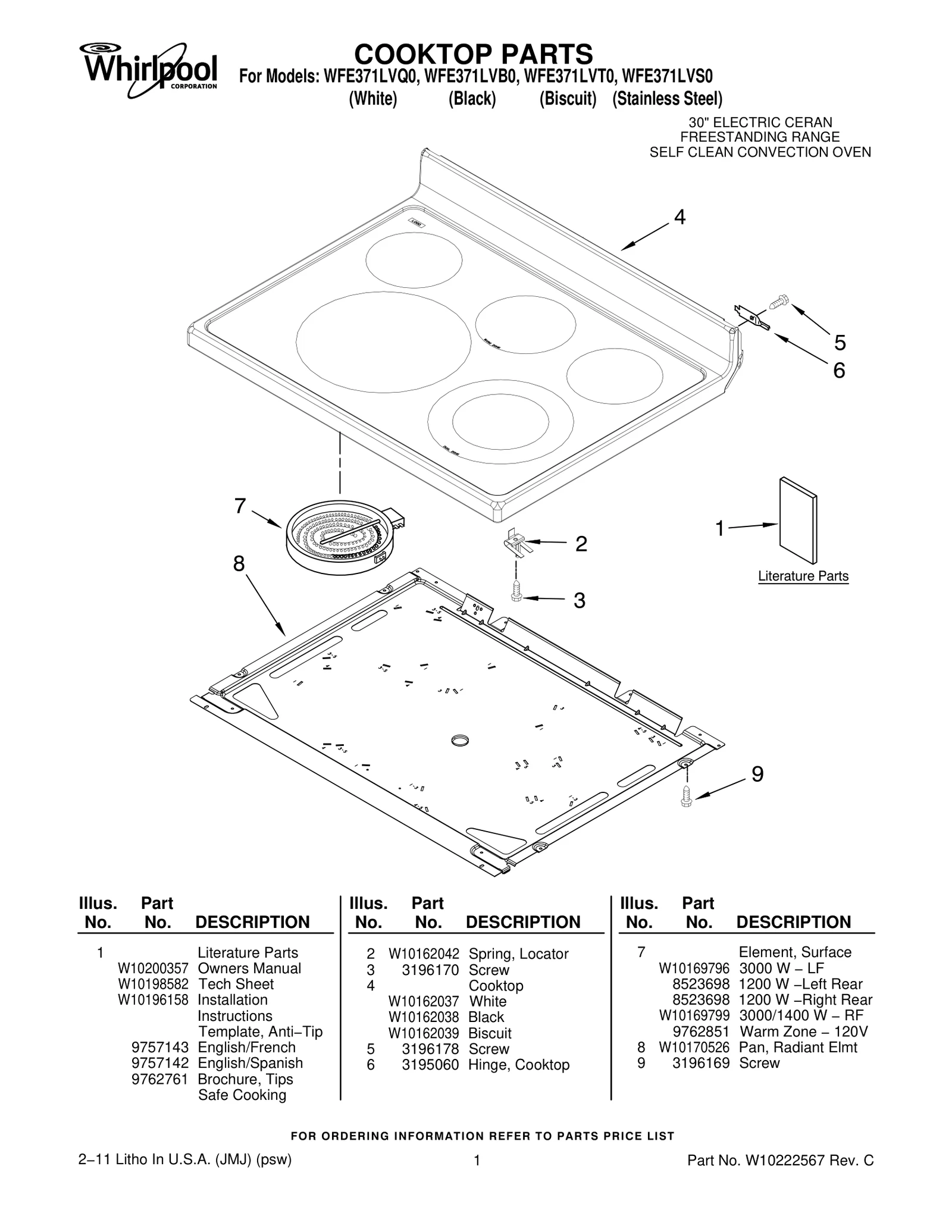

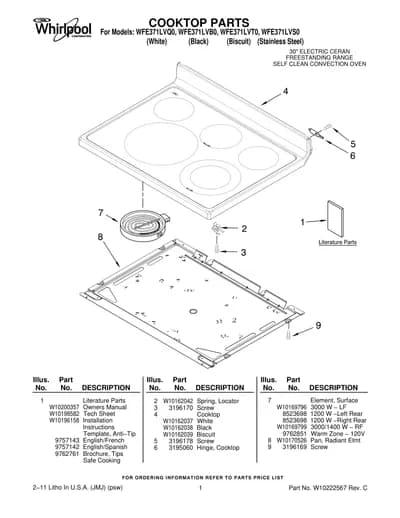

COOKTOP PARTS
Parts in COOKTOP PARTS
20 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | W10200357 Owners Manual | - |
| 1 | – | W10198582 Tech Sheet | - |
| 1 | – | W10196158 Installation Instructions Template, Anti−Tip | - |
| 1 | – | 9757143 English/French | - |
| 1 | – | 9757142 English/Spanish | - |
| 1 | – | 9762761 Brochure, Tips Safe Cooking | - |
| 2 |  | WPW10225448replaces W10162042 Spring, Locator | $4.75 Part Advantage |
| 3 |  | WP3196170replaces 3196170 Screw | $5.00 RepairClinic |
| 4 |  | W10651914replaces W10162037 Cooktop — White | $327.25 Parts Dr |
| 4 |  | W10651915replaces W10162038 Cooktop — Black | $320.24 Parts Dr |
| 4 | – | W10162039 Cooktop — Biscuit | - |
| 5 |  | W11233072replaces 3196178 Screw | $8.78 Part Advantage |
| 6 |  | WP3195060replaces 3195060 Hinge, Cooktop | $3.87 Part Advantage |
| 7 |  | W10823728replaces W10169796 Element, Surface — 3000 W − LF | $120.32 Parts Dr |
| 7 |  | W10823711replaces 8523698 Element, Surface — 1200 W −Left Rear | $92.55 Part Advantage |
| 7 | | W10823711replaces 8523698 Element, Surface — 1200 W −Right Rear | $92.55 Part Advantage |
| 7 |  | W11517959replaces W10169799 Element, Surface — 3000/1400 W − RF | $68.23 Part Advantage |
| 7 |  | WP9762851replaces 9762851 Element, Surface — Warm Zone − 120V | - |
| 8 |  | Pan, Radiant Elmt | - |
| 9 |  | WP3196557replaces 3196169 Screw 2−11 Litho In U.S.A. (JMJ) (psw) | $2.30 Part Advantage |
