ModelWhirlpool
WFG361LVD1Range
7 diagrams215 parts
Parts Sections (7)
Diagram

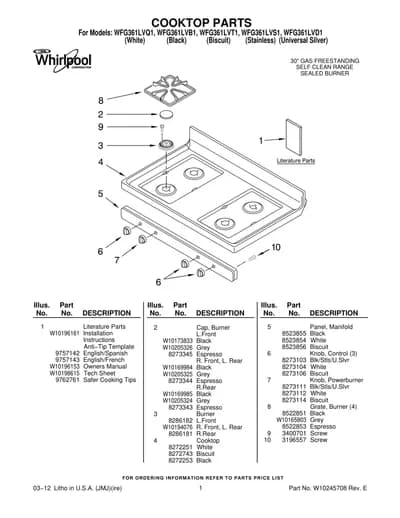

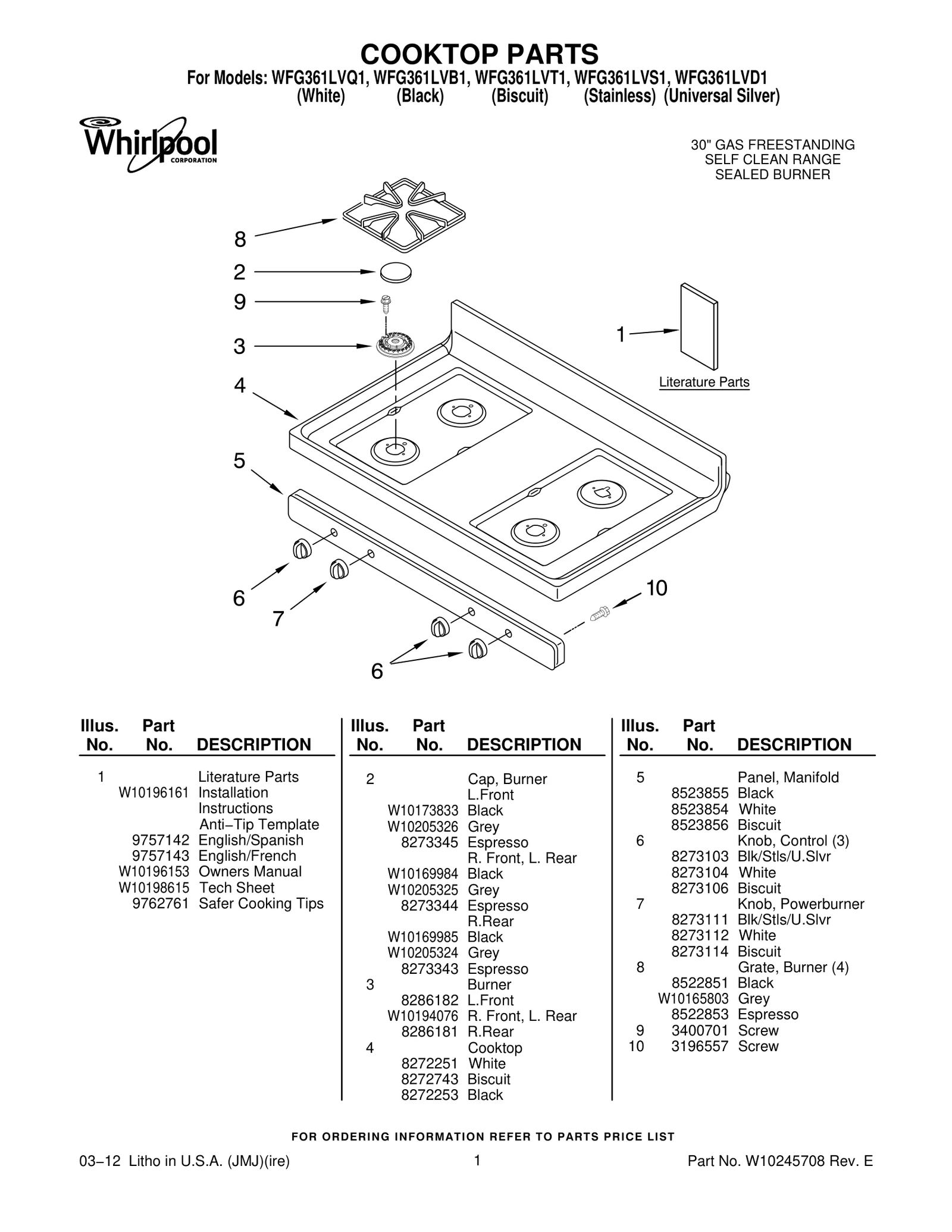

COOKTOP PARTS
Parts in COOKTOP PARTS
35 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | W10196161 Installation Instructions Anti−Tip Template | - |
| 1 | – | 9757142 English/Spanish | - |
| 1 | – | 9757143 English/French | - |
| 1 | – | W10196153 Owners Manual | - |
| 1 | – | W10198615 Tech Sheet | - |
| 1 | – | 9762761 Safer Cooking Tips | - |
| 2 |  | WPW10173833replaces W10173833 Cap, Burner L.Front — Black | - |
| 2 | | Cap, Burner L.Front — Grey | Discontinued |
| 2 |  | WP8273345replaces 8273345 Cap, Burner L.Front — Espresso | - |
| 2 |  | WPW10169984replaces W10169984 Cap, Burner L.Front — Black | $50.56 PartSelect |
| 2 | | Cap, Burner L.Front — Grey | - |
| 2 |  | WP8273344replaces 8273344 Cap, Burner L.Front — Espresso | - |
| 2 |  | WPW10169985replaces W10169985 Cap, Burner L.Front — Black | $55.29 PartSelect |
| 2 | | W10205324NLA Cap, Burner L.Front — Grey | Discontinued |
| 2 |  | WP8273343replaces 8273343 Cap, Burner L.Front — Espresso | $35.91 Part Advantage |
| 3 |  | WPW10406797replaces 8286182 Burner — L.Front | $33.54 Part Advantage |
| 3 |  | WPW10406283replaces W10194076 R. Front, L. Rear | $37.32 Part Advantage |
| 3 |  | WPW10406243replaces 8286181 Burner — R.Rear | $12.98 Part Advantage |
| 4 |  | W11213959replaces 8272251 Cooktop — White | - |
| 4 |  | 8195546replaces 8272743 Cooktop — Biscuit | - |
| 4 |  | W11213958replaces 8272253 Cooktop — Black | - |
| 5 |  | Panel, Manifold — Black | - |
| 5 |  | WP8523854replaces 8523854 Panel, Manifold — White | $137.95 ApplianceParts Pro |
| 5 | | Panel, Manifold — Biscuit | - |
| 6 |  | WP8273103replaces 8273103 Knob, Control (3) — Blk/Stls/U.Slvr | $8.66 Part Advantage |
| 6 |  | WP8273104replaces 8273104 Knob, Control (3) — White | $8.39 Part Advantage |
| 6 |  | WP8273106replaces 8273106 Knob, Control (3) — Biscuit | $12.01 Parts Dr |
| 7 | | WP8273103replaces 8273111 Knob, Powerburner — Blk/Stls/U.Slvr | $8.66 Part Advantage |
| 7 | | WP8273104replaces 8273112 Knob, Powerburner — White | $8.39 Part Advantage |
| 7 | | WP8273106replaces 8273114 Knob, Powerburner — Biscuit | $12.01 Parts Dr |
| 8 |  | WPW10447925replaces 8522851 Grate, Burner (4) — Black | $197.17 Parts Dr |
| 8 | | WPW10447925replaces W10165803 Grate, Burner (4) — Grey | $197.17 Parts Dr |
| 8 | | 8522853NLA Grate, Burner (4) — Espresso | Discontinued |
| 9 |  | WP3368921replaces 3400701 Screw | $1.48 Part Advantage |
| 10 |  | WP3196557replaces 3196557 Screw | $2.30 Part Advantage |
