Model
Whirlpool WFG371LVQ0
30" Gas Freestanding
Parts Sections (7)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelWhirlpool
WFG371LVQ030" Gas Freestanding
7 diagrams189 parts
Parts Sections (7)
Diagram

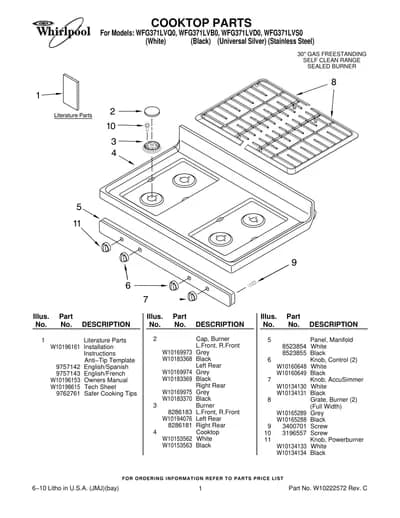

COOKTOP PARTS
Parts in COOKTOP PARTS
29 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | W10196161 Installation Instructions Anti−Tip Template | - |
| 1 | – | 9757142 English/Spanish | - |
| 1 | – | 9757143 English/French | - |
| 1 | – | W10196153 Owners Manual | - |
| 1 | – | W10198615 Tech Sheet | - |
| 1 | – | 9762761 Safer Cooking Tips | - |
| 2 |  | Cap, Burner L.Front, R.Front — Grey | $53.82 Parts Dr |
| 2 |  | WPW10183368replaces W10183368 Cap, Burner L.Front, R.Front — Black | $43.72 Part Advantage |
| 2 |  | WPW10169974replaces W10169974 Cap, Burner L.Front, R.Front — Grey | $43.95 ApplianceParts Pro |
| 2 |  | WPW10183369replaces W10183369 Cap, Burner L.Front, R.Front — Black | $33.42 Part Advantage |
| 2 |  | WPW10169975replaces W10169975 Cap, Burner L.Front, R.Front — Grey | - |
| 2 |  | WPW10183370replaces W10183370 Cap, Burner L.Front, R.Front — Black | $31.99 Part Advantage |
| 3 |  | WPW10406878replaces 8286183 L.Front, R.Front | $38.07 Part Advantage |
| 3 |  | WPW10406283replaces W10194076 Burner — Left Rear | $37.32 Part Advantage |
| 3 |  | WPW10406243replaces 8286181 Burner — Right Rear | $12.98 Part Advantage |
| 4 | – | W10153562 Cooktop — White | - |
| 4 | – | W10153563 Cooktop — Black | - |
| 5 |  | WP8523854replaces 8523854 Panel, Manifold — White | $137.95 ApplianceParts Pro |
| 5 |  | Panel, Manifold — Black | - |
| 6 |  | WPW10160648replaces W10160648 Knob, Control (2) — White | $14.64 Parts Dr |
| 6 |  | WPW10160649replaces W10160649 Knob, Control (2) — Black | $13.26 Parts Dr |
| 7 |  | WPW10134130replaces W10134130 Knob, AccuSimmer — White | $27.37 ApplianceParts Pro |
| 7 |  | WPW10134131replaces W10134131 Knob, AccuSimmer — Black | $11.27 Part Advantage |
| 8 | | W10165289NLA Grate, Burner (2) — Grey | Discontinued |
| 8 | | Grate, Burner (2) — Black | - |
| 9 |  | WP3368921replaces 3400701 Screw | $1.48 Part Advantage |
| 10 |  | WP3196557replaces 3196557 Screw | $2.30 Part Advantage |
| 11 | | W10134133NLA Knob, Powerburner — White | Discontinued |
| 11 |  | WPW10134134replaces W10134134 Knob, Powerburner — Black | $11.43 Part Advantage |
