Model
Whirlpool WFG374LVQ1
30" Gas Freestanding
Parts Sections (7)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelWhirlpool
WFG374LVQ130" Gas Freestanding
7 diagrams200 parts
Parts Sections (7)
Diagram

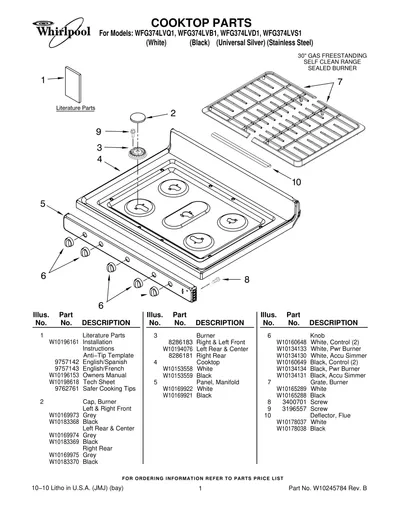

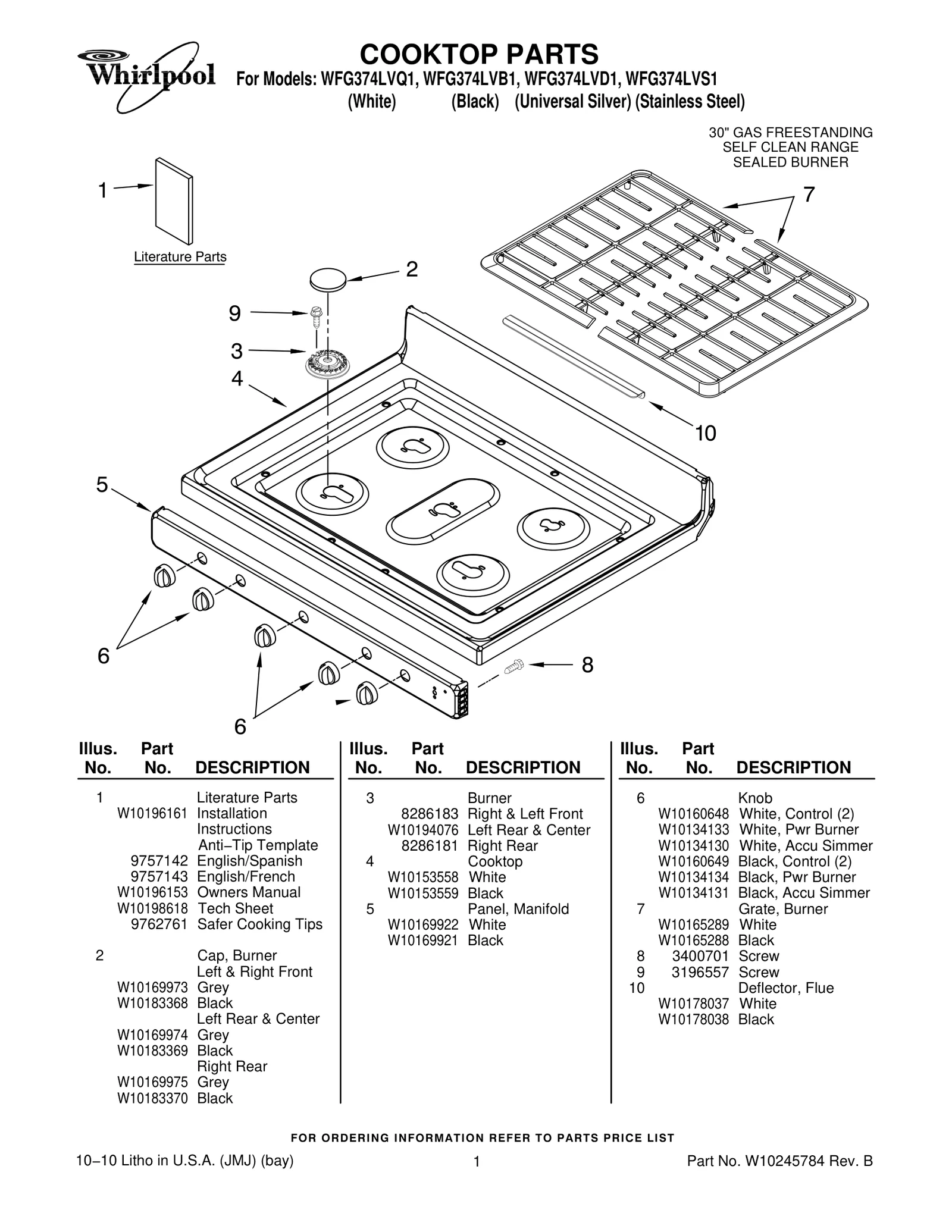

COOKTOP PARTS
Parts in COOKTOP PARTS
31 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | W10196161 Installation Instructions Anti−Tip Template | - |
| 1 | – | 9757142 English/Spanish | - |
| 1 | – | 9757143 English/French | - |
| 1 | – | W10196153 Owners Manual | - |
| 1 | – | W10198618 Tech Sheet | - |
| 1 | – | 9762761 Safer Cooking Tips | - |
| 2 |  | Cap, Burner Left & Right Front — Grey | $53.82 Parts Dr |
| 2 |  | WPW10183368replaces W10183368 Cap, Burner Left & Right Front — Black | $43.72 Part Advantage |
| 2 |  | WPW10169974replaces W10169974 Cap, Burner Left & Right Front — Grey | $43.95 ApplianceParts Pro |
| 2 |  | WPW10183369replaces W10183369 Cap, Burner Left & Right Front — Black | $33.42 Part Advantage |
| 2 |  | WPW10169975replaces W10169975 Cap, Burner Left & Right Front — Grey | - |
| 2 |  | WPW10183370replaces W10183370 Cap, Burner Left & Right Front — Black | $31.99 Part Advantage |
| 3 |  | WPW10406878replaces 8286183 Burner — Right & Left Front | $38.07 Part Advantage |
| 3 |  | WPW10406283replaces W10194076 Burner — Left Rear & Center | $37.32 Part Advantage |
| 3 |  | WPW10406243replaces 8286181 Burner — Right Rear | $12.98 Part Advantage |
| 4 | – | W10153558 Cooktop — White | - |
| 4 | – | W10153559 Cooktop — Black | - |
| 5 | – | W10169922 Panel, Manifold — White | - |
| 5 | | Panel, Manifold — Black | - |
| 6 |  | WPW10160648replaces W10160648 White, Control (2) | $14.64 Parts Dr |
| 6 | | W10134133NLA White, Pwr Burner | Discontinued |
| 6 |  | WPW10134130replaces W10134130 White, Accu Simmer | $27.37 ApplianceParts Pro |
| 6 |  | WPW10160649replaces W10160649 Black, Control (2) | $13.26 Parts Dr |
| 6 |  | WPW10134134replaces W10134134 Black, Pwr Burner | $11.43 Part Advantage |
| 6 |  | WPW10134131replaces W10134131 Black, Accu Simmer | $11.27 Part Advantage |
| 7 | | W10165289NLA Grate, Burner — White | Discontinued |
| 7 | | Grate, Burner — Black | - |
| 8 |  | WP3368921replaces 3400701 Screw | $1.48 Part Advantage |
| 9 |  | WP3196557replaces 3196557 Screw | $2.30 Part Advantage |
| 10 | | Deflector, Flue — White | - |
| 10 | – | W10178038 Deflector, Flue — Black | - |
