Model
Whirlpool WFW8400TW00
Automatic Washer
Parts Sections (7)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelWhirlpool
WFW8400TW00Automatic Washer
7 diagrams155 parts

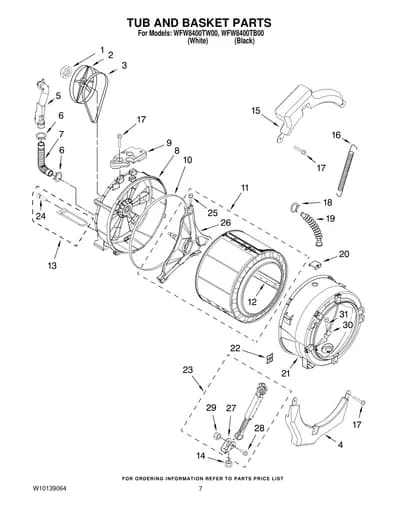

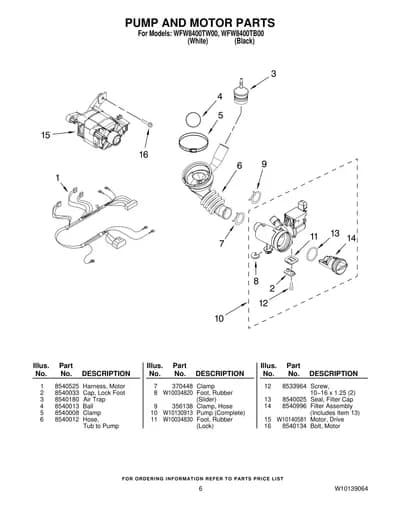

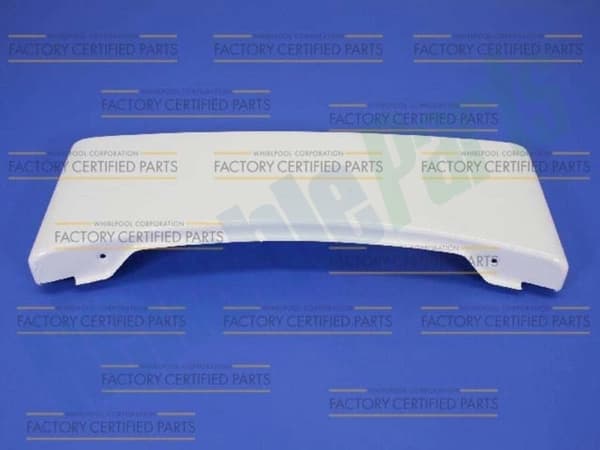

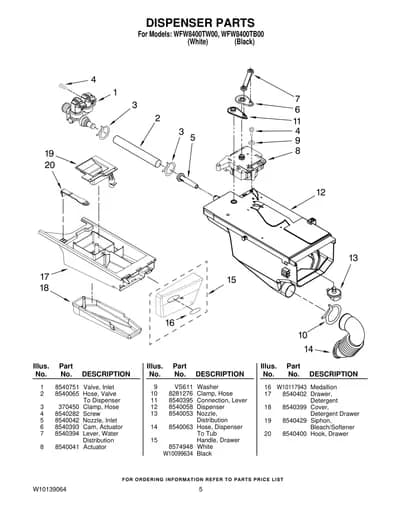

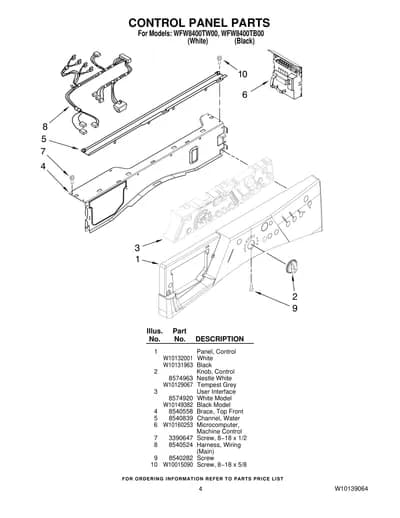

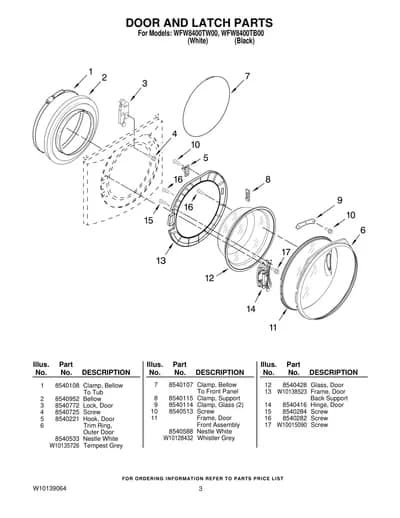

Parts Sections (7)
Diagram

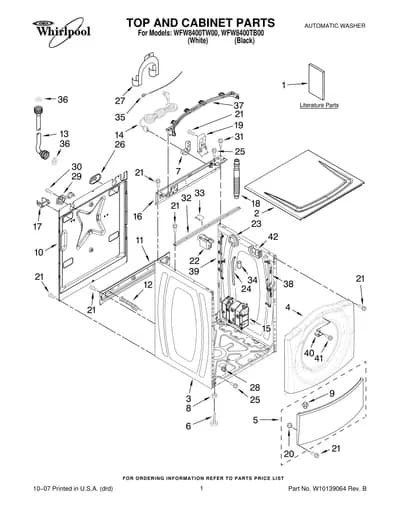

TOP AND CABINET PARTS
Parts in TOP AND CABINET PARTS
51 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | W10117768 Use & Care Guide | - |
| 1 | – | W10071760 Tech Sheet Energy Guide | - |
| 1 | – | W10128102 White Model | - |
| 1 | – | W10157937 Black Model | - |
| 1 | – | 8540316 Quick Start Guide | - |
| 2 |  | WPW10303994replaces 8540716 Top — White | - |
| 2 |  | Top — Black | - |

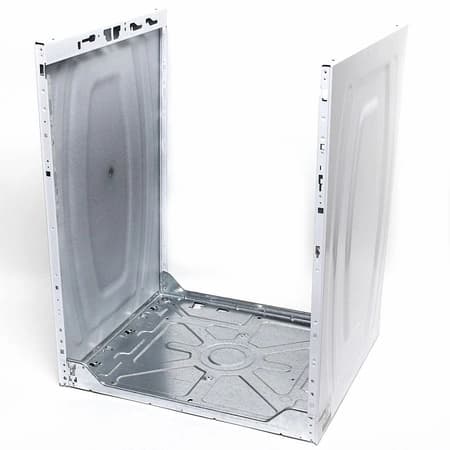

| 3 |  | W10410294replaces 8540548 Cabinet — White | - |
| 3 | – | W10117456 Cabinet — Black | - |
| 4 | | 8540572NLA Panel, Front — White | Discontinued |
| 4 | | Panel, Front — Black | - |
| 5 |  | WP8540664replaces 8540813 Toe Panel — White | $232.89 RepairClinic |
| 5 | | W10112961replaces W10112981 Toe Panel — Black | - |
| 6 |  | W10862938replaces W10121677 Foot, Leveling (4) | $6.68 Part Advantage |
| 7 |  | 8182635replaces W10110676 Strain Relief, Power Cord | - |
| 8 |  | WP3359452replaces 3359452 Nut, Lock (4) | $1.74 Part Advantage |
| 9 |  | Rivet (2) | - |
| 10 |  | Panel, Rear | - |
| 11 | | W10189657replaces 8540581 Brace, Transport | - |
| 12 |  | W10763471replaces 8540199 Bolt, Shipping (4) | $27.41 Part Advantage |
| 13 |  | WP89503replaces 8571377 Hose, Water Inlet — Blue Coupler | $4.59 Part Advantage |
| 13 | | WP89503replaces 8571378 Hose, Water Inlet — Red Coupler | $4.59 Part Advantage |
| 14 | | Cord, Power | - |
| 15 |  | WPW10163007replaces 8540540 Motor Control Unit | $284.37 PartSelect |
| 16 |  | W10161694replaces 8540974 Brace, Rear | - |
| 17 | – | 8540093 Clamp, Tube Transportation | - |
| 18 |  | WPW10114608replaces 8540011 Hose, Drain | $30.30 Part Advantage |
| 19 | | Retainer, Hose Outlet | - |
| 20 |  | Bumper (2) | - |
| 21 |  | WP489442replaces W10015090 Screw, 8−18 x 5/8 | $7.95 ApplianceParts Pro |
| 22 |  | WPW10367632replaces 8540230 Filter, Interference | $42.47 Part Advantage |
| 23 |  | Switch, Pressure | Discontinued |
| 24 |  | W11252474replaces 8540294 Hose, Pressure Switch | $9.06 Part Advantage |
| 25 |  | Screw, Grounding | $6.95 ApplianceParts Pro |
| 26 |  | WP8540268replaces 8540268 Cover, Transport | $5.00 RepairClinic |
| 27 |  | WPW10280024replaces 8540021 U−Bend, Drain Hose | $31.82 Parts Dr |
| 28 |  | WPW10085220replaces W10085220 Microswitch (2) | $21.33 RepairClinic |
| 29 | | W11116978replaces 8540728 Sleeve, Cord Support (2) | $15.24 ApplianceParts Pro |
| 30 |  | 8182201replaces 8540727 Screw, 3 x 8 mm | - |
| 31 | | Screw | - |
| 32 |  | WP8540720replaces 8540720 Brace, Top | - |
| 33 |  | WP8283273replaces 8283273 Damper, Brace | - |
| 34 |  | W11751592replaces 2161302 Sleeve, Pressure Switch Hose | $11.13 Part Advantage |
| 35 |  | WPW10339879replaces 3347868 Cable Tie | $2.30 Part Advantage |
| 36 |  | WP16123replaces 16123 Washer, Water Inlet Hose (4) 1−1/16 x 5/8 | $2.30 Part Advantage |
| 37 |  | W10168548replaces 8540290 Harness Channel, Top Rear | - |
| 38 |  | W10200785replaces 8540288 Harness Channel, Side Front | - |
| 39 | | W10168547replaces 8540289 Harness Channel, Side Rear | - |
| 40 | – | 8540669 Bracket, Console Retainer | - |
| 41 |  | WP98006631replaces 8533954 Screw | $7.43 ApplianceParts Pro |
| 42 |  | Bracket, Spring | - |
