Model
Whirlpool WFW9500TW01
Automatic Washer
Parts Sections (7)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelWhirlpool
WFW9500TW01Automatic Washer
7 diagrams173 parts

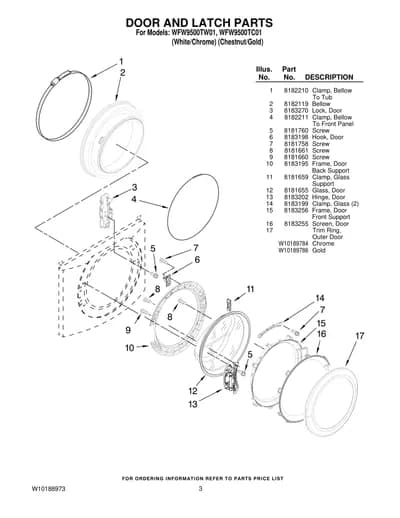

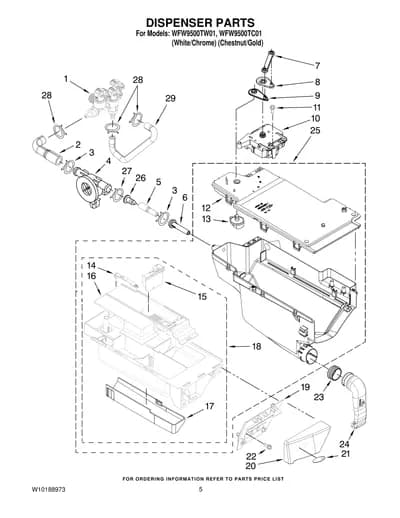

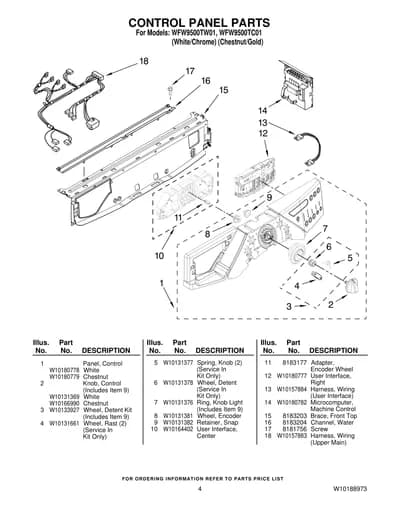

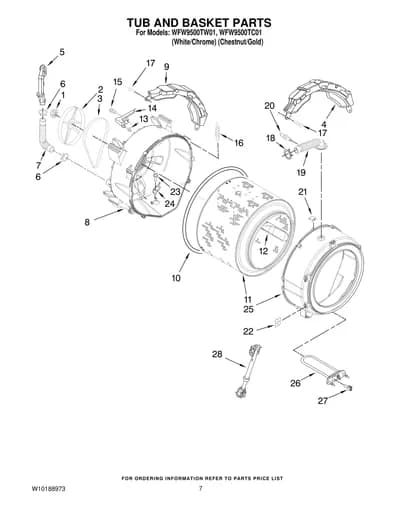

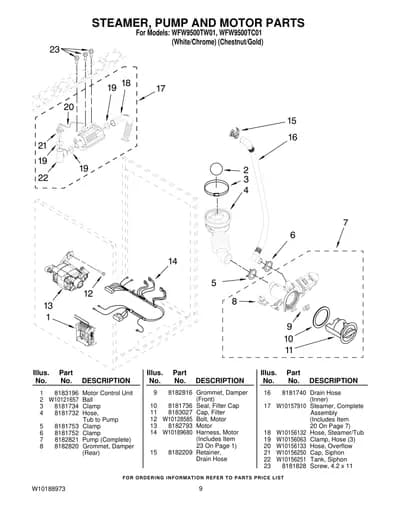

Parts Sections (7)
Diagram

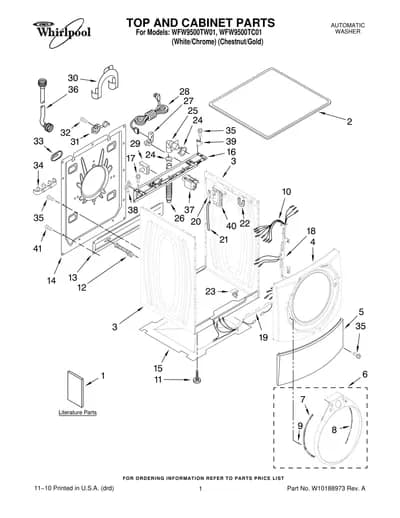

TOP AND CABINET PARTS
Parts in TOP AND CABINET PARTS
51 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | W10158196 Use & Care Guide | - |
| 1 | – | W10133490 Tech Sheet | - |
| 1 | – | W10133489 Quick Start Guide | - |
| 1 | – | W10162664 Energy Guide | - |
| 2 |  | Top — White | - |
| 2 | | Top — Chestnut | - |
| 3 | | Cabinet — White | - |
| 3 | – | W10166960 Cabinet — Chestnut | - |
| 4 | | 8183151NLA Panel, Front — White | Discontinued |
| 4 | | Panel, Front — Chestnut | - |
| 5 | | Toe Panel — White | - |
| 5 | | Toe Panel — Chestnut | - |
| 6 | | Trim Ring, Teardrop Assembly — White | - |
| 6 | | Trim Ring, Teardrop Assembly — Chestnut | - |
| 7 | | 8183208NLA Bracket, Trim Fixation (Left) | Discontinued |
| 8 | | Bracket, Trim Fixation (Right) | - |
| 9 |  | WP8183210replaces 8183210 Clip, Trim | $3.38 Part Advantage |
| 10 | | W10189679NLA Harness, Wiring (Includes Items 18, 19 & 23) | Discontinued |
| 11 | | 8181636NLA Foot, Leveling | Discontinued |
| 12 |  | W10289554Areplaces 8182797 Bolt, Shipping — Upper | $37.67 Part Advantage |
| 12 | | W10289554Areplaces 8182798 Bolt, Shipping — Lower | $37.67 Part Advantage |
| 13 |  | WPW10003040replaces 8182661 Brace, Transport | - |
| 14 | | 8182698NLA Panel, Rear | Discontinued |
| 15 | | Pan, Bottom | - |
| 16 | | Brace, Rear | - |
| 17 |  | WP488729replaces 8181756 Screw | $2.41 Part Advantage |
| 18 | | Channel, Harness | - |
| 19 | – | W10121610 Channel, Harness | - |
| 20 |  | WPW10312527replaces W10156252 Switch, Analog Pressure Sensor | $201.56 PartSelect |
| 21 |  | WPW10004260replaces 8181739 Hose, Pressure Switch | $3.66 Part Advantage |
| 22 |  | WP8181763replaces 8181763 Bracket, Spring | $50.57 ApplianceParts Pro |
| 23 |  | WPW10085220replaces W10189678 Microswitch | $21.33 RepairClinic |
| 24 |  | WP3367052replaces 8181752 Clamp, Hose | $5.00 Parts Dr |
| 25 | | W11757170replaces 8181738 Connector, Drain Hose | $3.50 Parts Dr |
| 26 |  | WP8181737replaces 8181737 Hose, Drain | $29.33 Part Advantage |
| 27 |  | 8182635replaces 8181690 Strain Relief | - |
| 28 |  | WP8183009replaces 8183009 Cord, Power | - |
| 29 | | Clip, Outer Hose Holder | - |
| 30 |  | WPW10280024replaces 8181768 Storage, Hose | $31.82 Parts Dr |
| 31 | | W11116978replaces 8182699 Sleeve, Cord Support (2) | $15.24 ApplianceParts Pro |
| 32 |  | Screw, 3 x 8 mm | - |
| 33 |  | WP8540268replaces 8182700 Cover, Transport | $5.00 RepairClinic |
| 34 | | Clip, Outer Hose Holder | - |
| 35 | | WP488729replaces 8181828 Screw | $2.41 Part Advantage |
| 36 |  | WP89503replaces 8182795 Hose, Water Inlet — Blue Coupler | $4.59 Part Advantage |
| 36 | | WP89503replaces 8182792 Hose, Water Inlet — Red Coupler | $4.59 Part Advantage |
| 37 |  | WPW10367632replaces 8183019 Filter, Interference | $42.47 Part Advantage |
| 38 | | Grid, Ventilation | - |
| 39 | – | W10138249 Spacer, Top (2) | - |
| 40 | | W10156258NLA Control Board, Expansion | Discontinued |
| 41 | | Screw, 4.2 x 14 | - |
