Model
Whirlpool WFW9700VW00
Automatic Washer
Parts Sections (7)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelWhirlpool
WFW9700VW00Automatic Washer
7 diagrams171 parts
Parts Sections (7)

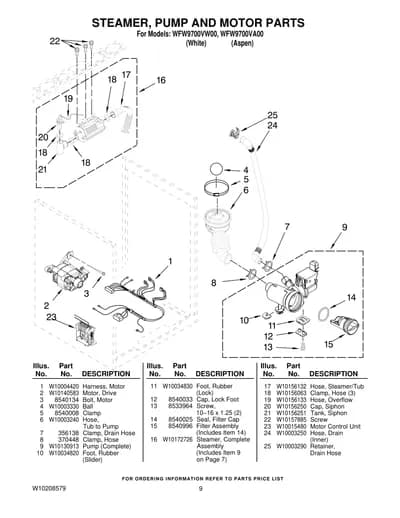

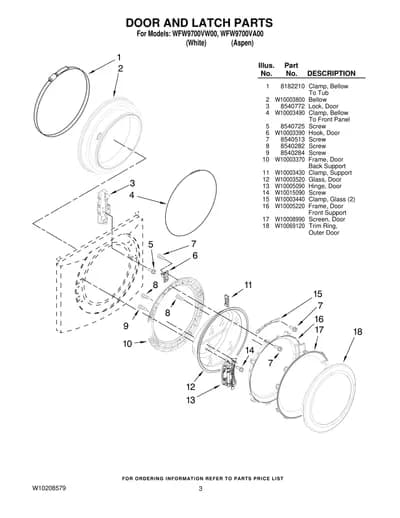

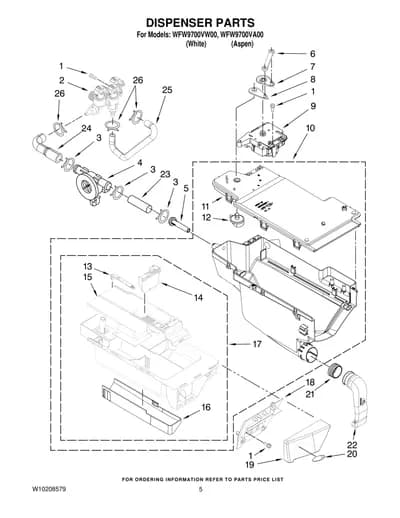

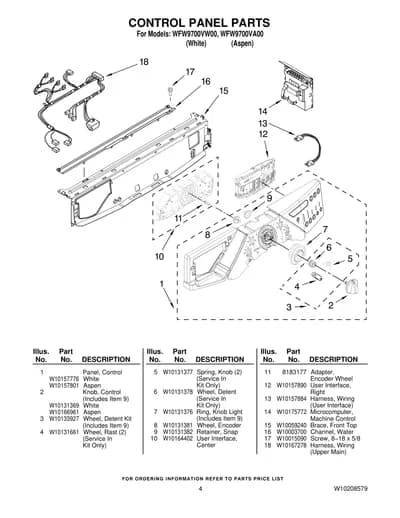

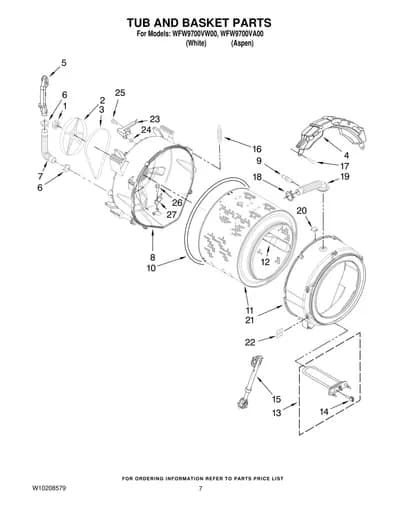

Diagram

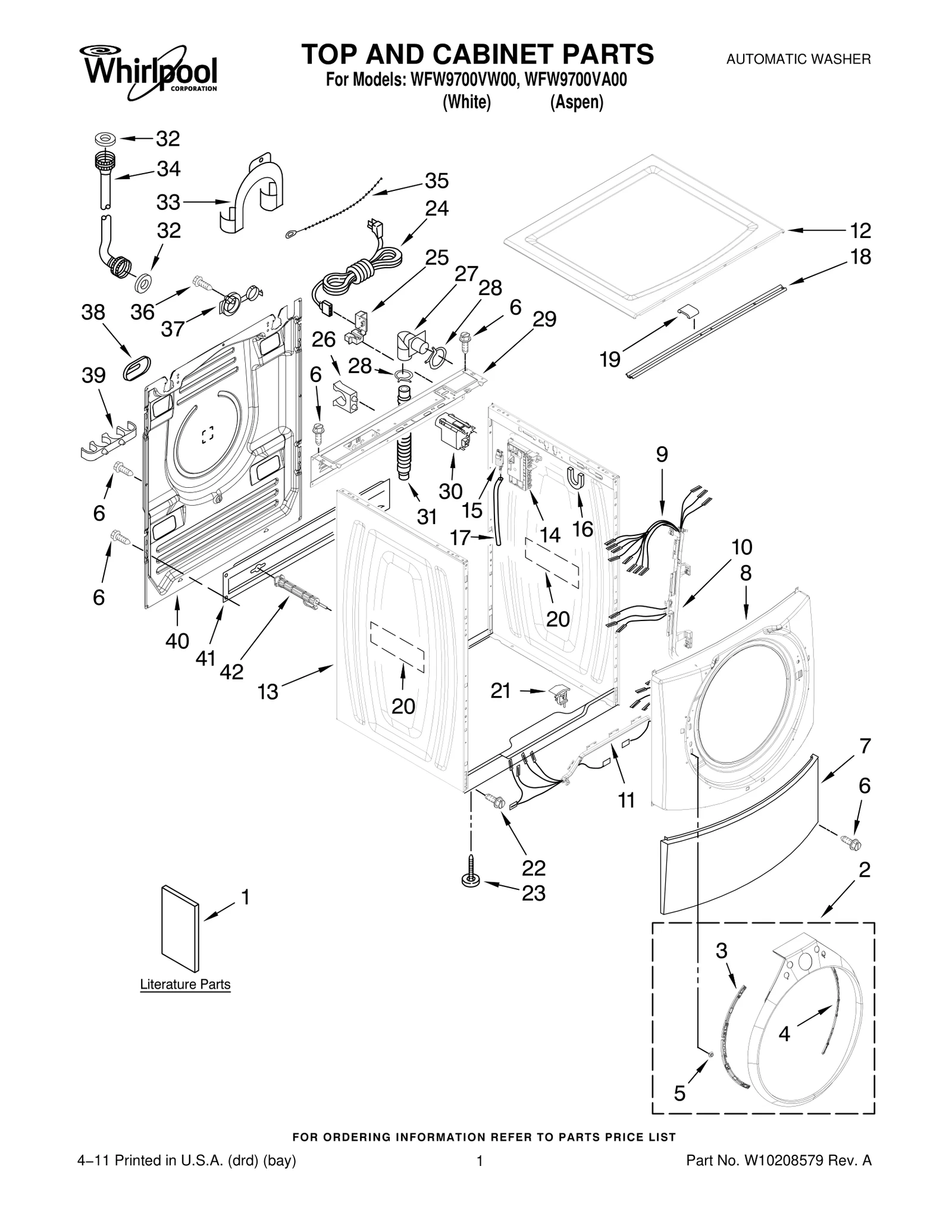

TOP AND CABINET PARTS
Parts in TOP AND CABINET PARTS
52 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | W10176968 Use & Care Guide | - |
| 1 | – | W10176957 Tech Sheet | - |
| 1 | – | W10176960 Energy Guide | - |
| 2 | – | W10176940 Trim Ring, Teardrop Assembly — White | - |
| 2 | – | W10176942 Trim Ring, Teardrop Assembly — Aspen | - |
| 3 |  | Bracket, Trim Fixation (Left) | Discontinued |
| 4 | – | W10015780 Bracket, Trim Fixation (Right) | - |
| 5 |  | WP8183210replaces W10029650 Clip, Trim | $3.38 Part Advantage |
| 6 |  | WP489442replaces W10015090 Screw, 8−18 x 5/8 | $7.95 ApplianceParts Pro |
| 7 | | W10003640NLA Toe Panel — White | Discontinued |
| 7 | – | W10176923 Toe Panel — Aspen | - |
| 8 | | W10015580NLA Panel, Front — White | Discontinued |
| 8 | – | W10176915 Panel, Front — Aspen | - |
| 9 | | Harness, Wiring (Includes Items 10 & 11) | - |
| 10 | | W10216383replaces W10003460 Channel, Harness | $84.06 Part Advantage |
| 11 | | W10168549replaces W10131757 Channel, Harness | $60.64 RepairClinic |
| 12 | | Top — White | - |
| 12 | – | W10176930 Top — Aspen | - |
| 13 |  | Cabinet — White | - |
| 13 | – | W10176852 Cabinet — Aspen | - |
| 14 | | W10156258NLA Control Board, Expansion | Discontinued |
| 15 |  | WPW10249845replaces W10249845 Switch, Analog Pressure Sensor | $140.03 Part Advantage |
| 16 |  | WP8181763replaces W10008890 Bracket, Spring | $50.57 ApplianceParts Pro |
| 17 |  | WPW10004260replaces W10004260 Hose, Pressure Switch | $3.66 Part Advantage |
| 18 |  | WP8540720replaces 8540720 Brace, Top | - |
| 19 |  | WP8283273replaces 8283273 Damper, Brace | - |
| 20 | | 3976348NLA Absorber, Sound | Discontinued |
| 21 |  | WPW10085220replaces W10085220 Microswitch (2) | $21.33 RepairClinic |
| 22 |  | Screw, Gounding | $6.95 ApplianceParts Pro |
| 23 |  | W10862938replaces W10064810 Foot, Leveling (4) | $6.68 Part Advantage |
| 24 |  | WP8183009replaces W10110674 Cord, Power | - |
| 25 |  | 8182635replaces W10110676 Strain Relief, Power Cord | - |
| 26 | – | W10022290 Clip, Outer Hose Holder | - |
| 27 | | W11757170replaces W10003260 Connector, Drain Hose | $3.50 Parts Dr |
| 28 |  | WP356138replaces 356138 Clamp, Hose | $3.38 Part Advantage |
| 29 | | Brace, Rear | - |
| 30 |  | WPW10367632replaces 8540230 Filter, Interference | $42.47 Part Advantage |
| 31 |  | WP8181737replaces W10003280 Hose, Drain | $29.33 Part Advantage |
| 32 |  | WP16123replaces 16123 Washer, Water Inlet Hose (4) 1−1/16 x 5/8 | $2.30 Part Advantage |
| 33 |  | WPW10280024replaces 8540021 U−Bend, Drain Hose | $31.82 Parts Dr |
| 34 |  | WP89503replaces 8571377 Hose, Water Inlet — Blue Coupler | $4.59 Part Advantage |
| 34 | | WP89503replaces 8571378 Hose, Water Inlet — Red Coupler | $4.59 Part Advantage |
| 35 |  | WPW10339879replaces 3347868 Cable Tie | $2.30 Part Advantage |
| 36 |  | 8182201replaces 8540727 Screw, 3 x 8 mm | - |
| 37 | | W11116978replaces 8540728 Sleeve, Cord Support (2) | $15.24 ApplianceParts Pro |
| 38 |  | WP8540268replaces 8540268 Cover, Transport | $5.00 RepairClinic |
| 39 | | 8182701replaces W10003270 Clip, Outer Hose Holder | - |
| 40 | | Panel, Rear | - |
| 41 | | Brace, Transport — Upper | - |
| 41 |  | WPW10003040replaces W10003040 Brace, Transport — Lower | - |
| 42 |  | W10289554Areplaces W10190006 Upper (2) | $37.67 Part Advantage |
| 42 | | W10289554Areplaces W10190007 Lower (2) | $37.67 Part Advantage |
