Whirlpool WGD5856SG0
29"Gas Dryer
Parts Sections (5)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelWhirlpool
WGD5856SG029"Gas Dryer
5 diagrams173 parts
Parts Sections (5)

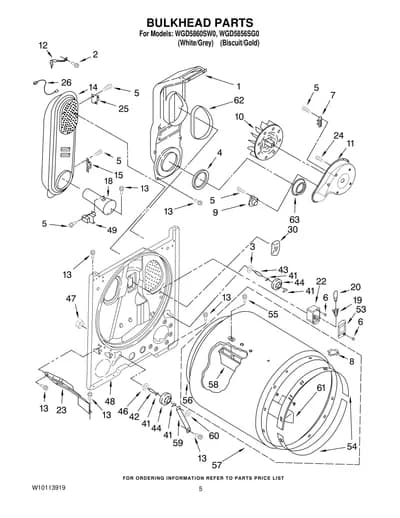

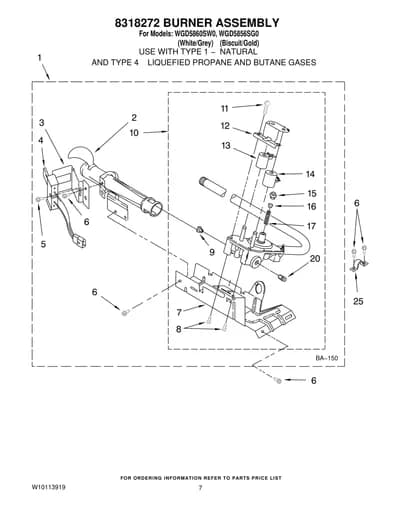

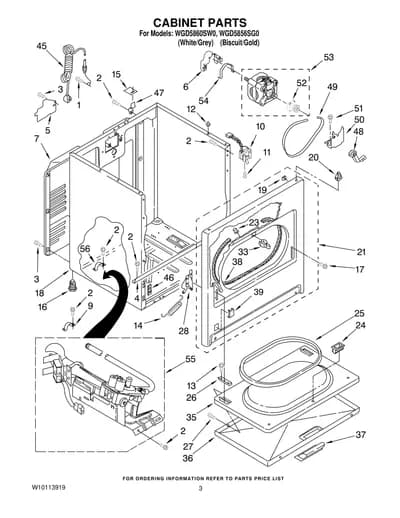

Diagram

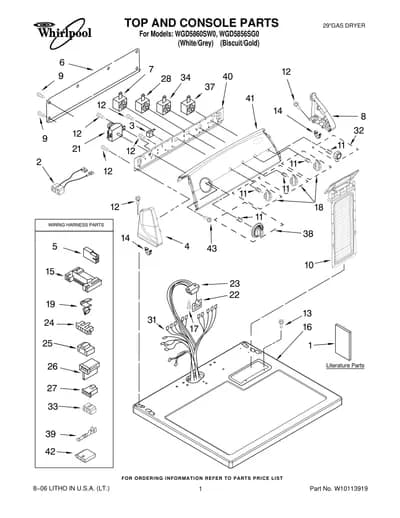

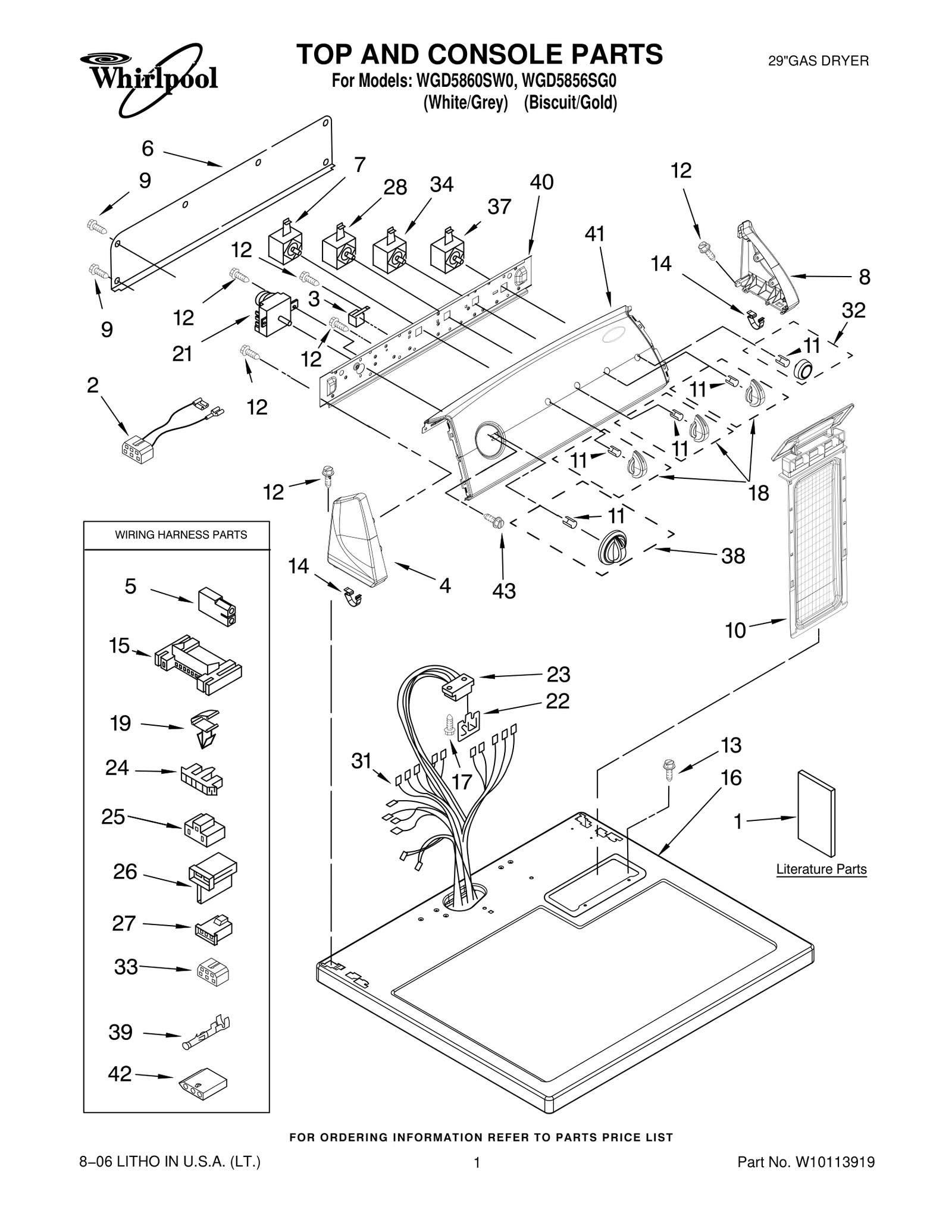

TOP AND CONSOLE PARTS
Parts in TOP AND CONSOLE PARTS
50 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | 8562582 Instructions, | - |
| 1 | – | W10042950 Sheet, | - |
| 1 | – | 8578183 Use & Care Guide | - |
| 1 | – | 3406661 Wiring Diagram | - |
| 1 |  | 677818NLA Dryer | Discontinued |
| 2 |  | Wire, Jumper | - |
| 3 |  | WP694419replaces 694419 Buzzer, Mini | $71.95 ApplianceParts Pro |
| 4 | | W11087440replaces 8566035 Cap, End (L.H.) — White | - |
| 4 | – | 8566036 Cap, End (L.H.) — Biscuit | - |
| 5 | | 717252NLA Plug, 2−Way Terminal | Discontinued |
| 6 |  | W10103406replaces 8274261 Panel, Rear Console | - |
| 7 |  | W11106324replaces 3405155 Switch, Temperature | $88.33 Parts Dr |
| 8 | | W11087440replaces 8566032 Cap, End (R.H.) — White | - |
| 8 | – | 8566033 Cap, End (R.H.) — Biscuit | - |
| 9 |  | WP693995replaces 693995 Screw, Hex Washer Head | $1.73 Part Advantage |
| 10 |  | W11778253replaces 8557857 Screen, Lint — White | $32.05 Part Advantage |
| 10 | | 8557858NLA Screen, Lint — Biscuit | Discontinued |
| 11 |  | WP8536939replaces 8536939 Clip, Spring | $3.55 Part Advantage |
| 12 |  | WP90767replaces 8533971 Screw, 8−18 x 5/16 | $2.30 Part Advantage |
| 13 |  | W11693756replaces 688983 Screw, 8−18 x 5/8 | $9.83 Parts Dr |
| 14 |  | WP8312709replaces 8312709 Clip−Console | $7.96 Part Advantage |
| 15 |  | Connector | $40.40 ApplianceParts Pro |
| 16 | | Top — White | - |
| 16 | – | W10028880 Top — Biscuit | - |
| 17 | | W11693756replaces 359625 Screw, 8−18 x 1/2 | $9.83 Parts Dr |
| 18 | | W10034380NLA Knob, Control (3) — Grey | Discontinued |
| 18 | | WPW10034390replaces W10034390 Knob, Control (3) — Biscuit | $39.60 RepairClinic |
| 19 |  | WP3394427replaces 3394427 Clip−Harness | $3.38 Part Advantage |
| 21 |  | WP3406725replaces 3406725 Timer Assembly | $137.04 Part Advantage |
| 22 |  | WPW10476828replaces 8558178 Control, Electronic | $199.96 ApplianceParts Pro |
| 23 |  | Connector, Edge | - |
| 24 |  | Connector−Timer | - |
| 25 |  | Connector, | - |
| 26 |  | WP3403499replaces 3403499 Connector, 2−Position | $2.35 RepairClinic |
| 27 |  | WP3403498replaces 3403498 Connector, 3−Position | - |
| 28 |  | Switch, End Of Cycle | - |
| 31 | | Harness, Wiring | - |
| 32 |  | Knob, Push−To−Start — Grey | $65.16 RepairClinic |
| 32 | – | W10034780 Knob, Push−To−Start — Biscuit | - |
| 33 | | 3347243NLA Connector 6−Circuit | Discontinued |
| 34 |  | Switch, Wrinkle Shield | $37.20 RepairClinic |
| 37 |  | WP3398094replaces 3398094 Switch, Push−To−Start | $40.61 Part Advantage |
| 38 | | W10034750NLA Timer Knob Assembly — Grey | Discontinued |
| 38 | | W10034760NLA Timer Knob Assembly — Biscuit | Discontinued |
| 39 |  | WP94614replaces 94614 Terminal, Female | $4.95 ApplianceParts Pro |
| 40 | | Bracket, Control | - |
| 41 | – | W10029070 Panel, Control — Grey | - |
| 41 | – | W10029080 Panel, Control — Gold | - |
| 42 |  | Connector | - |
| 43 |  | 3400859replaces 8533951 Screw, Grounding | $6.10 RepairClinic |
