Model
Whirlpool WGD6400SG1
29"Gas Dryer
Parts Sections (4)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelWhirlpool
WGD6400SG129"Gas Dryer
4 diagrams157 parts

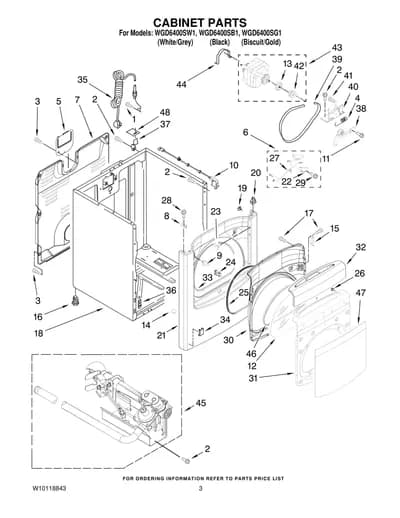

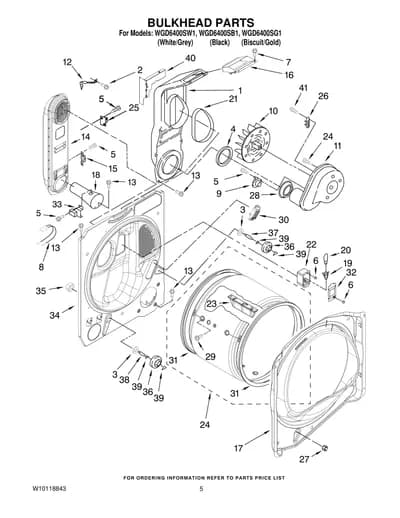

Parts Sections (4)
Diagram

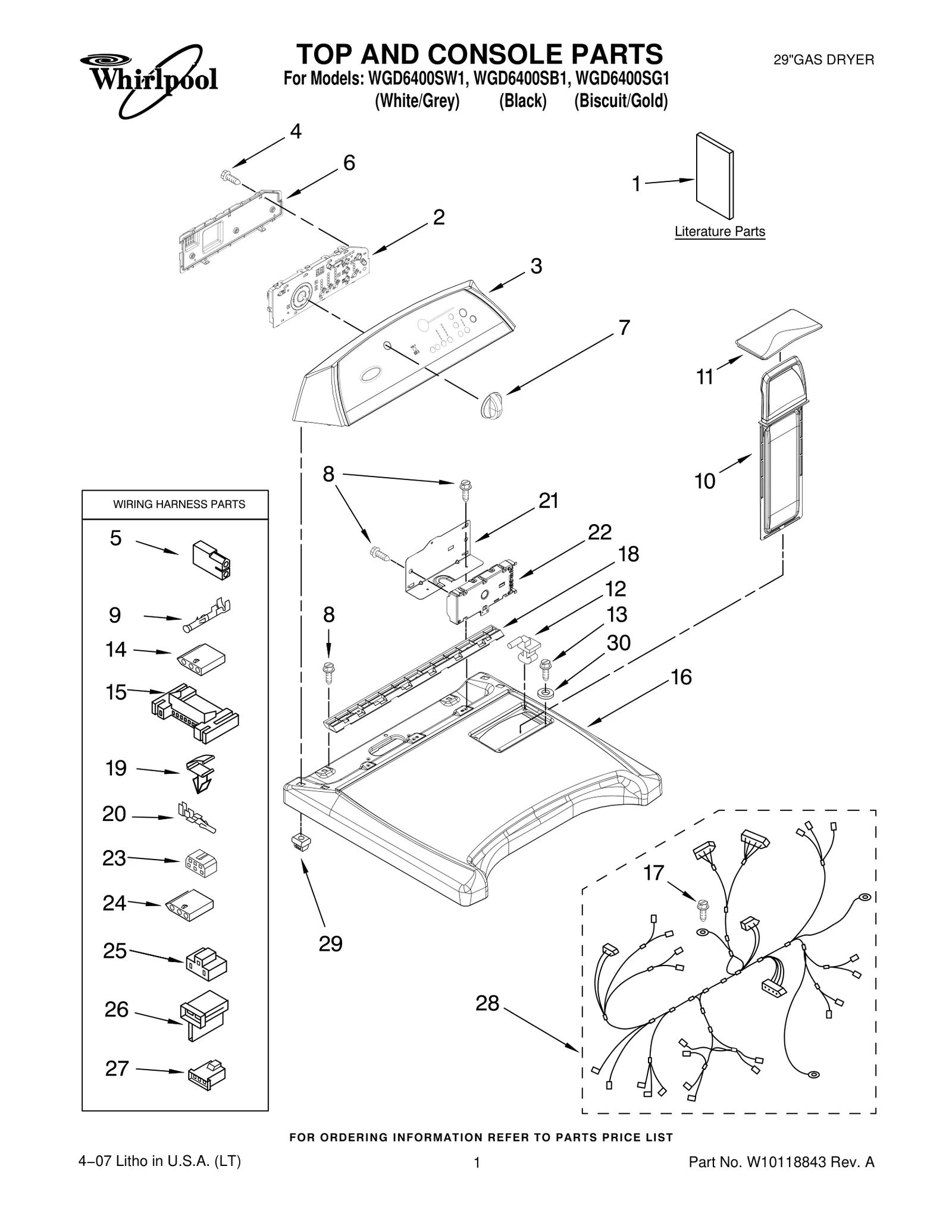

TOP AND CONSOLE PARTS
Parts in TOP AND CONSOLE PARTS
42 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | W10054090 Guide, | - |
| 1 | – | W10054080 Use & Care Guide | - |
| 1 | – | W10054160 Wiring Diagram | - |
| 1 |  | 677818NLA Dryer | Discontinued |
| 2 | | 8563974NLA Assembly, User Interface | Discontinued |
| 3 | | W10110325NLA Panel, Console — White | Discontinued |
| 3 | | W10110330NLA Panel, Console — Black | Discontinued |
| 3 | | Panel, Console — Biscuit | - |
| 4 |  | WP4449745replaces W10003770 Screw, 6−19 x 3/64 | - |
| 5 | | 717252NLA Plug, 2 Way Terminal | Discontinued |
| 6 |  | Cover, Rear UI−Assembly | - |
| 7 |  | WP8574957replaces 8574957 Knob, Assembly — White | $54.62 RepairClinic |
| 7 | | WP8574957replaces 8574959 Knob, Assembly — Black | $54.62 RepairClinic |
| 7 | | WP8574957replaces 8574958 Knob, Assembly — Biscuit | $54.62 RepairClinic |
| 8 |  | WP33001882replaces 337686 Screw, 8−18 x 1/2 | $27.07 ApplianceParts Pro |
| 9 |  | WP94614replaces 94614 Terminal, Female | $4.95 ApplianceParts Pro |
| 10 |  | WP8572270replaces 8572270 Assembly, Lint Screen | $45.40 Part Advantage |
| 11 | | W10044320NLA Cover, Lint Screen — White | Discontinued |
| 11 | | Cover, Lint Screen — Black | - |
| 11 | – | W10044330 Cover, Lint Screen — Biscuit | - |
| 12 |  | WPW10044470replaces W10044470 Hinge, R.H. | $3.38 Part Advantage |
| 12 |  | WPW10044480replaces W10044480 Hinge, L.H. | $3.38 Part Advantage |
| 13 |  | WP3196557replaces 3196537 Screw, 8−18 x 5/8 | $2.30 Part Advantage |
| 14 |  | Connector | - |
| 15 |  | Connector | $40.40 ApplianceParts Pro |
| 16 | | Top — White | - |
| 16 | | Top — Black | - |
| 16 | – | 8565027 Top — Biscuit | - |
| 17 |  | WP681414replaces 343641 Screw, 10−16 x 1/2 | $2.30 Part Advantage |
| 18 | | Bracket, Console | - |
| 19 |  | WP3394427replaces 3394427 Clip−Harness | $3.38 Part Advantage |
| 20 |  | WP596797replaces 94613 Terminal | $7.95 ApplianceParts Pro |
| 21 | | Bracket, Machine Controller | - |
| 22 | | W10111608NLA Control, Electronic | Discontinued |
| 23 | | 3347243NLA Connector 6−Circuit | Discontinued |
| 24 |  | Connector Sensor | - |
| 25 |  | Connector, | - |
| 26 |  | WP3403499replaces 3403499 Connector, 2−Position | $2.35 RepairClinic |
| 27 |  | WP3403498replaces 3403498 Connector, 3−Position | - |
| 28 | | Harness, Wiring | - |
| 29 | | Screw, Grommet (2) | - |
| 30 | – | 237446 Washer (Top/Chute) | - |
