Model
Whirlpool WGD9500TU0
Gas Dryer
Parts Sections (6)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelWhirlpool
WGD9500TU0Gas Dryer
6 diagrams218 parts

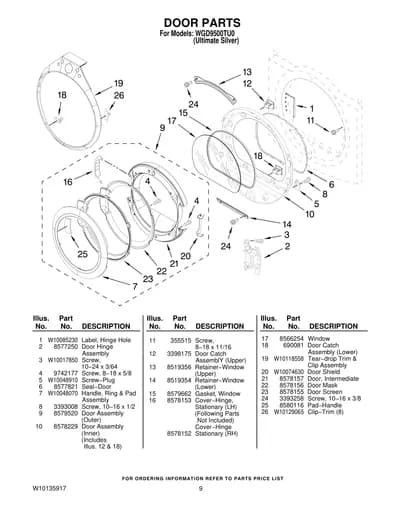

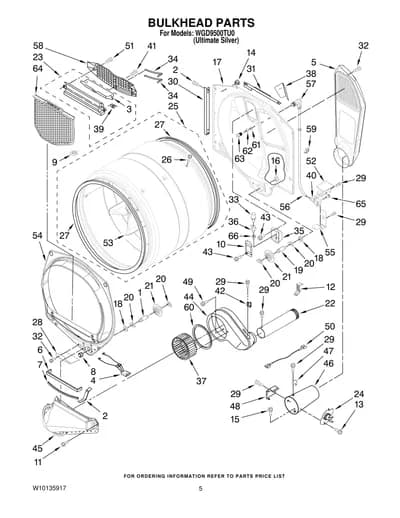

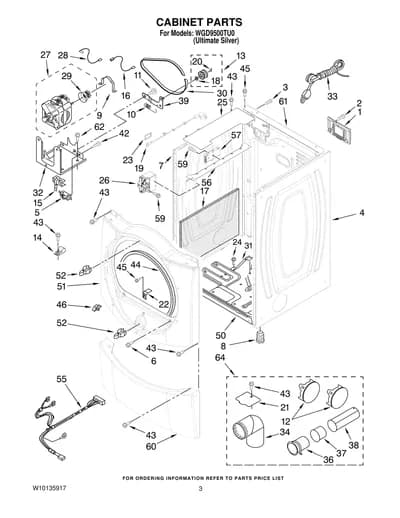

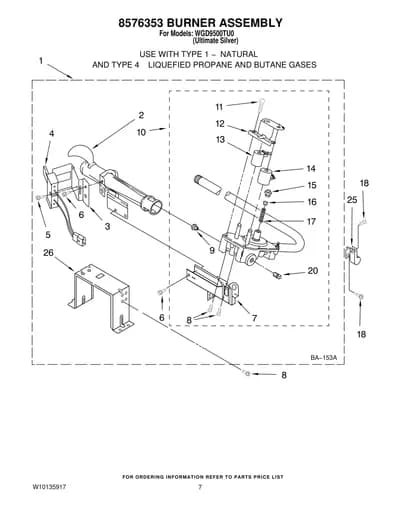

Parts Sections (6)
Diagram

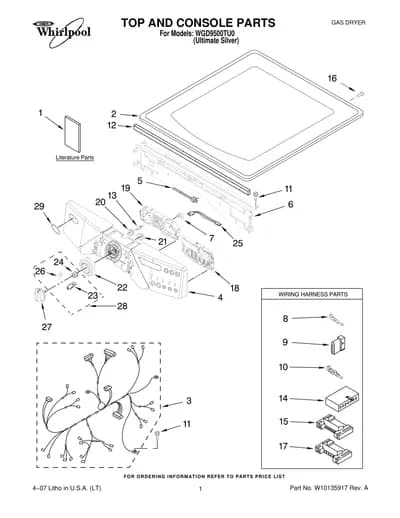

TOP AND CONSOLE PARTS
Parts in TOP AND CONSOLE PARTS
31 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | W10122320 Use & Care Guide | - |
| 1 | – | W10050531 Tech Sheet | - |
| 1 | – | W10122321 Guide, Quick Start | - |
| 2 |  | W10114785NLA Top | Discontinued |
| 3 | – | W10110985 Harness, Main | - |
| 4 | | Panel, Console (Includes Illus: 20,21,22,27,28 & 29) | - |
| 5 |  | WP3391018replaces 3391018 Tie, Cable | - |
| 6 | | W10006840NLA Bracket, Console | Discontinued |
| 7 |  | Clip, Harness (4) | - |
| 8 |  | WP94614replaces 94614 Terminal | $4.95 ApplianceParts Pro |
| 9 |  | Plug, Terminal | - |
| 10 |  | WP596797replaces 94613 Terminal | $7.95 ApplianceParts Pro |
| 11 |  | WP488729replaces 3390647 Screw, 8−18 x 1/2 | $2.41 Part Advantage |
| 12 |  | Foam−Seal | - |
| 13 |  | W10012480replaces W10030070 Array−Power | $11.95 ApplianceParts Pro |
| 14 |  | Connector, 7−Circuit | - |
| 15 |  | Connector, | $40.40 ApplianceParts Pro |
| 16 | | Screw, 8−18 x 1/2 | - |
| 17 |  | Connector, 5−Circuit | - |
| 18 | | W10110649NLA User−Interface | Discontinued |
| 19 | | W10121375NLA User−Interface Center (Includes Illus: 13.) | Discontinued |
| 20 | | Encoder−Wheel | - |
| 21 | | W10012440NLA Retainer−Snap | Discontinued |
| 22 | | W10012410NLA Knob, Light Ring (Includes: | Discontinued |
| 23 | – | W10012810 Rast, Wheel Assy. (Service Only With Item. 28 ) | - |
| 24 | – | W10012460 Detent Wheel (Service Only With Item. 28 ) | - |
| 25 | | W10095960NLA Harness, Communication | Discontinued |
| 26 | – | W10012820 Knob, Spring (Service Only With Item. 28 ) | - |
| 27 | | W10116704NLA Knob, Control (Includes: Item. 21 ) | Discontinued |
| 28 | | Encoder, Wheel Kit (Includes Items: 23, 24 & 26 ) | - |
| 29 | – | W10117943 Badge | - |
