Model
Whirlpool WGD9500TW2
Gas Dryer
Parts Sections (6)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelWhirlpool
WGD9500TW2Gas Dryer
6 diagrams223 parts

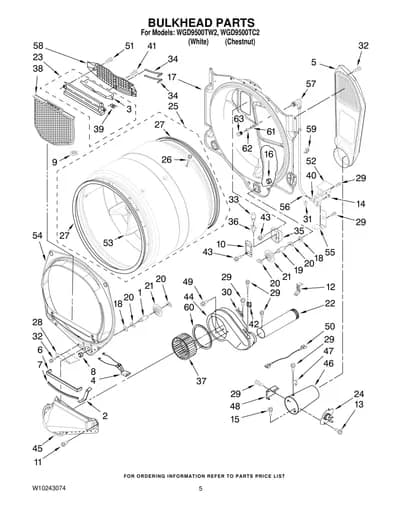

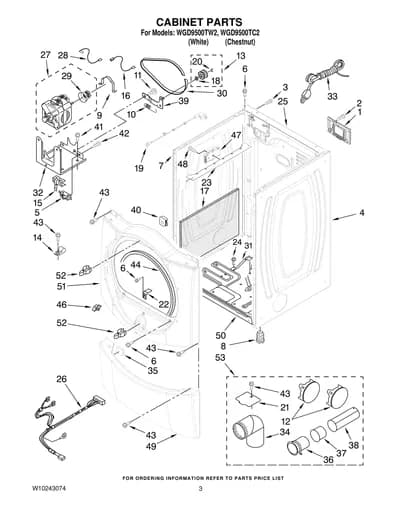

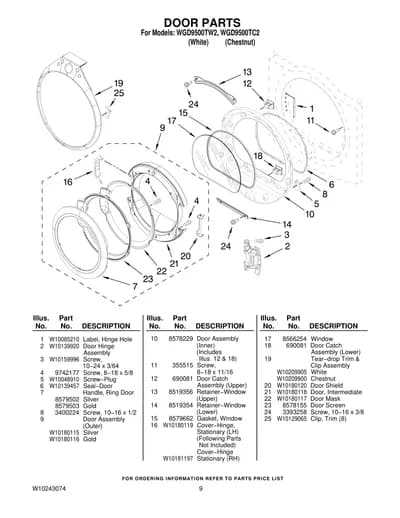

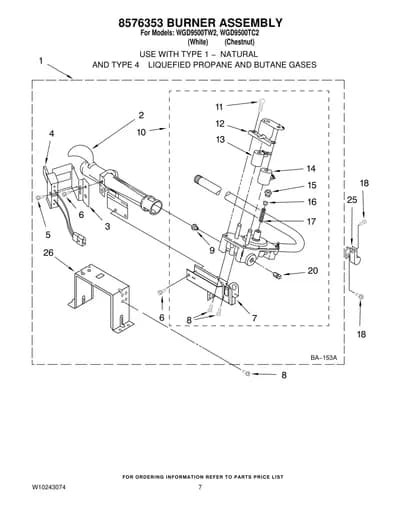

Parts Sections (6)
Diagram

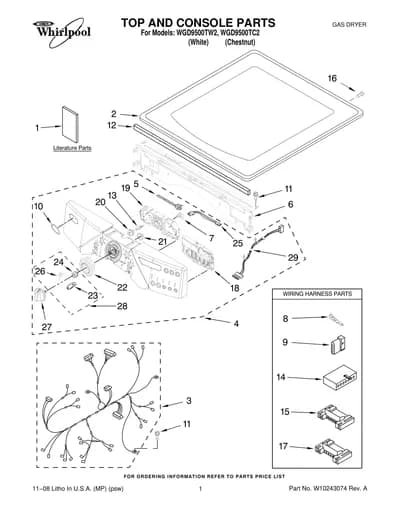

TOP AND CONSOLE PARTS
Parts in TOP AND CONSOLE PARTS
35 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | W10122320 Use & Care Guide | - |
| 1 | – | W10177456 Tech Sheet | - |
| 1 | – | W10139322 Sheet−Tip Steam Dry | - |
| 1 | – | W10122321 Guide, Quick Start | - |
| 2 | – | 8519251 Top — White | - |
| 2 |  | Top — Chestnut | - |
| 3 | | Harness, Main | - |
| 4 | | W10206053NLA Panel, Console (Includes Illus: 10,20,21,22,27 & 28) — White | Discontinued |
| 4 | | W10206054NLA Panel, Console (Includes Illus: 10,20,21,22,27 & 28) — Chestnut | Discontinued |
| 5 |  | WP3391018replaces 3391018 Tie, Cable | - |
| 6 | | Bracket, Console | - |

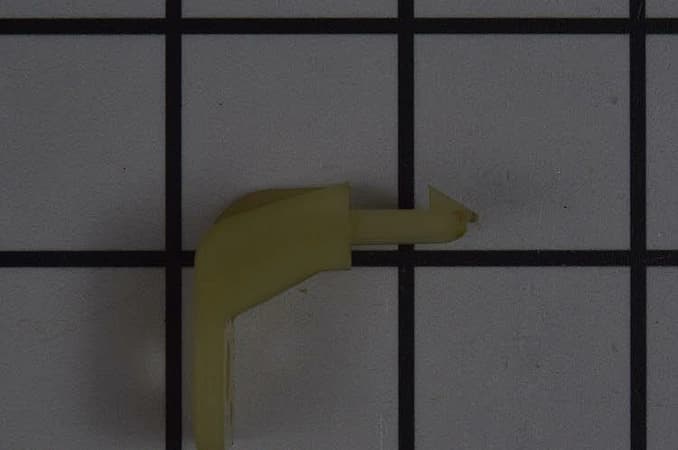

| 7 |  | Clip, Harness(4) | - |
| 8 |  | WP94614replaces 94614 Terminal | $4.95 ApplianceParts Pro |
| 9 |  | Plug, Terminal | - |
| 10 | – | W10117943 Badge | - |
| 11 |  | WP488729replaces 3390647 Screw, 8−18 x 1/2 | $2.41 Part Advantage |
| 12 |  | Foam−Seal | - |
| 13 |  | W10012480replaces W10030070 Array−Power | $11.95 ApplianceParts Pro |
| 14 |  | Connector, 7−Circuit | - |
| 15 |  | Connector, | $40.40 ApplianceParts Pro |
| 16 | | 303776replaces 98139 Screw, 8−32 x 5/16 | - |
| 17 |  | Connector, 5−Circuit | - |

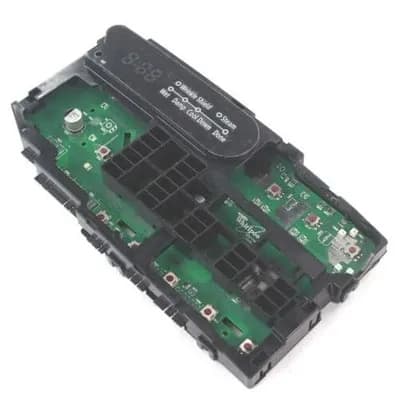

| 18 |  | W10294831replaces W10200933 User−Interface | - |
| 19 | | W10206049NLA User−Interface Center (Includes Illus: 13.) | Discontinued |
| 20 | | Encoder−Wheel | - |
| 21 | | W10012440NLA Retainer−Snap | Discontinued |
| 22 | | W10012410NLA Knob, Light Ring (Includes: | Discontinued |
| 23 | – | W10012810 Rast, Wheel Assy. (Service Only With Item. 28) | - |
| 24 | – | W10012460 Detent Wheel (Service Only With Item. 28) | - |
| 25 | | W10095960NLA Harness, Communication | Discontinued |
| 26 | – | W10012820 Knob, Spring (Service Only With Item. 28) | - |
| 27 | | W10116702NLA Knob, Control (Includes: Item. 21) — White | Discontinued |
| 27 | | W10153664NLA Knob, Control (Includes: Item. 21) — Chestnut | Discontinued |
| 28 | | Encoder, Wheel Kit (Includes Items: 23, 24 & 26) | - |
| 29 | | W10111020NLA Power Cable, User−Interface | Discontinued |
