Model

Whirlpool WHP1500ST1

Name: Whirlpool WHP1500ST1
Brand: Whirlpool
Availability: InStock

Pedestal

Parts Sections (1)

How to find your part

Find part on diagram

Zoom in & tap a highlighted area

Tap "Parts" tab

Switch to the parts list view

See details & prices

Your selected part is highlighted

ModelWhirlpool

WHP1500ST1Pedestal

1 diagram33 parts

Parts Sections (1)

Diagram

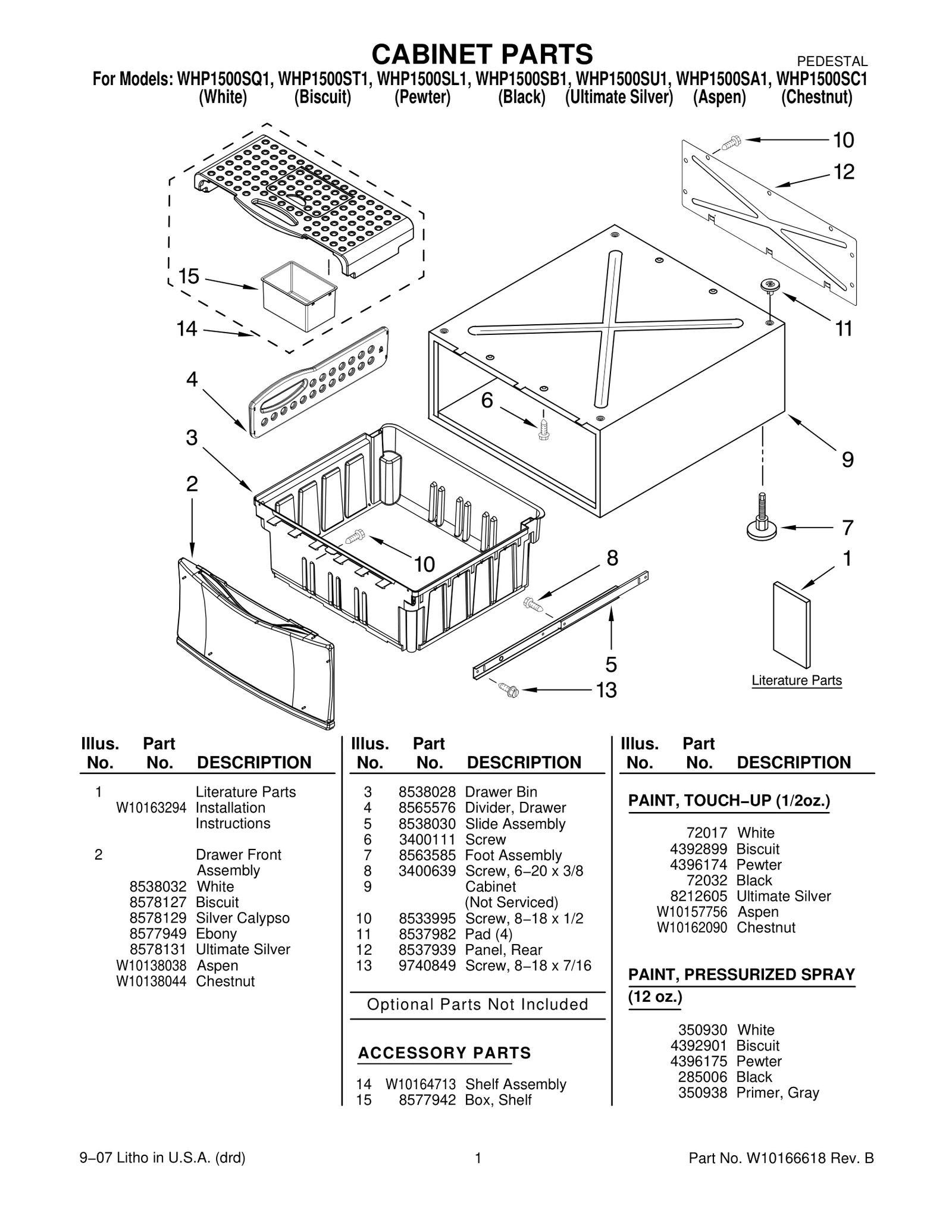

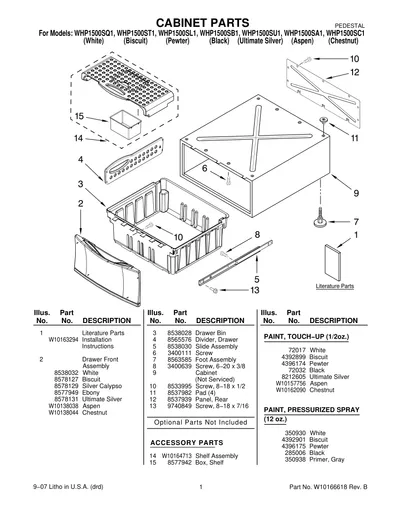

CABINET PARTS

Parts in CABINET PARTS

33 parts

Parts list for CABINET PARTS
Ref	Image	Part / Description	Best Price
1	–	W10163294 Installation Instructions	-
2		8538032NLA Drawer Front Assembly — White	Discontinued
2	–	8578127 Drawer Front Assembly — Biscuit	-
2		8578129NLA Drawer Front Assembly — Silver Calypso	Discontinued
2	–	8577949 Drawer Front Assembly — Ebony	-
2		8578131 Drawer Front Assembly — Ultimate Silver	-
2		W10138038NLA Drawer Front Assembly — Aspen	Discontinued
2		W10138044 Drawer Front Assembly — Chestnut	-
3		8538028 Drawer Bin	-
4	–	8565576 Divider, Drawer	-
5		8538030 Slide Assembly	-
6		WPW10346892replaces 3400111 Screw	$2.30 Part Advantage
7		WP8563585replaces 8563585 Foot Assembly	$6.46 Part Advantage
8		WP3388228replaces 3400639 Screw, 6−20 x 3/8	$2.30 Part Advantage
9	–	N/S Cabinet	-
10		WPW10213953replaces 8533995 Screw, 8−18 x 1/2	$2.30 Part Advantage
11		WP8537982replaces 8537982 Pad (4)	$3.38 Part Advantage
12		8537939 Panel, Rear	-
13		WP9740849replaces 9740849 Screw, 8−18 x 7/16	$2.30 Part Advantage
14		W10164713 Shelf Assembly	-
15		8577942NLA Box, Shelf PAINT, TOUCH−UP (1/2oz.)	Discontinued
15		72017 White	$3.58 Part Advantage
15		4392899 Biscuit	$6.60 Part Advantage
15		WP4396174replaces 4396174 Pewter	$11.42 Parts Dr
15		72032 Black	$5.12 Part Advantage
15		8212605 Ultimate Silver	$13.80 RepairClinic
15		W10157756 Aspen	-
15		W10162090 Chestnut PAINT, PRESSURIZED SPRAY	-
15		350930 White	$11.79 Amazon
15		4392901 Biscuit	$36.96 Parts Dr
15		4396175 Pewter	-
15		285006 Black	$29.58 Parts Dr
15		350938 Primer, Gray	$37.00 Parts Dr
