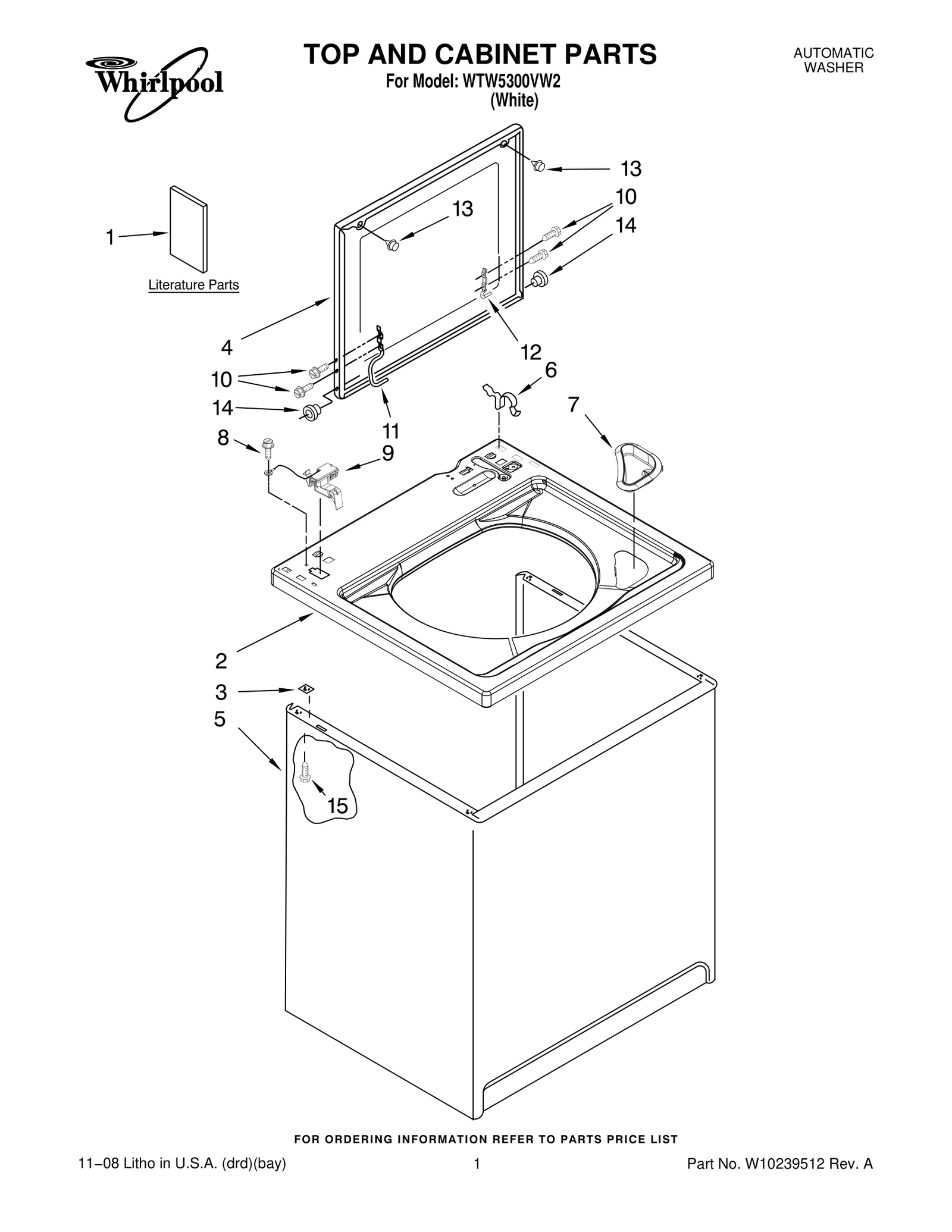

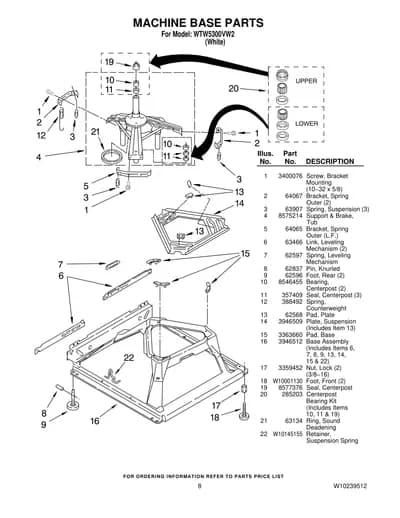

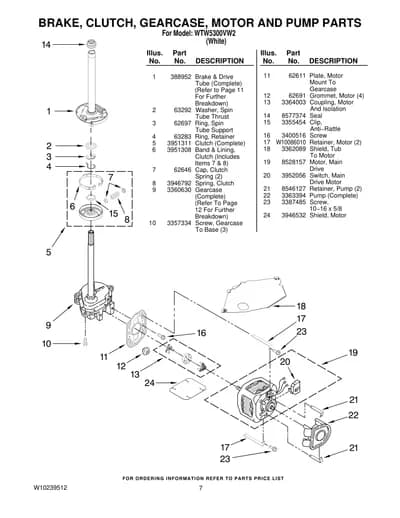

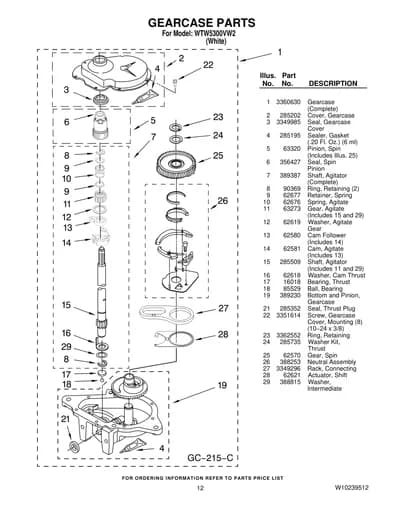

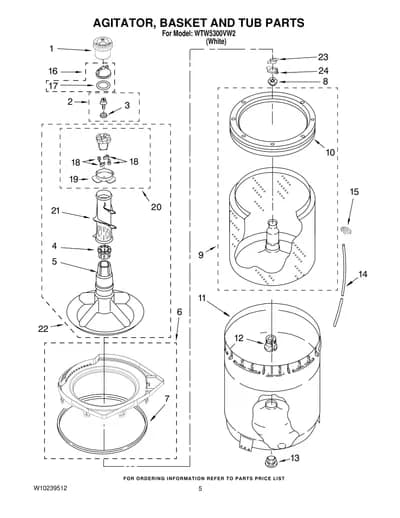

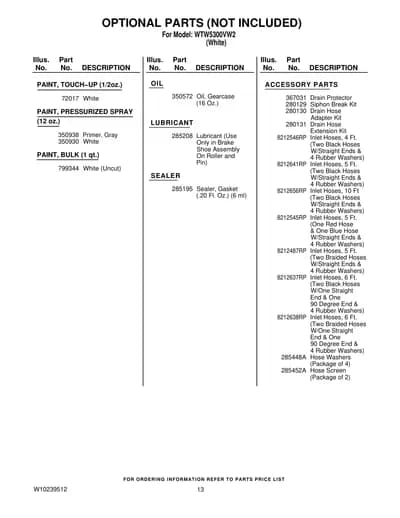

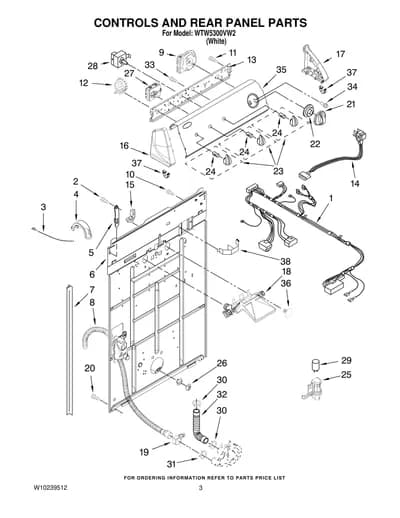

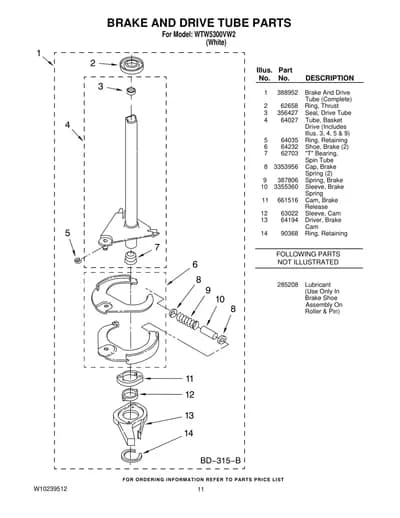

TOP AND CABINET PARTS
Parts in TOP AND CABINET PARTS
23 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | W10200331 English/French | - |
| 1 | – | W10200662 Spanish | - |
| 1 | – | W10200856 English/French | - |
| 1 | – | W10200857 Spanish | - |
| 1 | – | W10200828 English/French | - |
| 1 | – | W10200829 Spanish | - |
| 1 | – | W10062885 Energy Guide | - |
| 1 | – | 8577358 Wiring Diagram | - |
| 1 |  | Manual, Washer | - |
| 2 | | W10194572NLA Top | Discontinued |
| 3 |  | WP62750replaces 62750 Spacer, Cabinet To Top (4) | $3.38 Part Advantage |
| 4 | | Lid | Discontinued |
| 5 |  | Cabinet | - |
| 6 |  | WP62780replaces 62780 Clip, Top & Cabinet & Rear Panel (2) | $3.55 Part Advantage |
| 7 |  | WPW10192089replaces W10192089 Dispenser, Bleach | $3.38 Part Advantage |
| 8 |  | WP3351614replaces 3351614 Screw, Ground | $3.62 Parts Dr |
| 9 |  | WP8318084replaces 8318084 Switch, Lid | $18.14 Part Advantage |
| 10 |  | WPW10119828replaces W10119828 Screw, Lid Hinge Mounting (4) | $2.41 Part Advantage |
| 11 | | 8559336NLA Hinge, Lid (L.H.) | Discontinued |
| 12 |  | WP91770replaces 91770 Hinge, Lid (R.H.) | $8.06 Part Advantage |
| 13 |  | WP9724509replaces 9724509 Bumper, Lid (2) | $2.41 Part Advantage |
| 14 | | 8319539NLA Bearing, Lid Hinge (2) | Discontinued |
| 15 |  | WP3390631replaces 3390631 Screw 10−16 X 3/8 (4) | $2.30 Part Advantage |
