Model
Whirlpool WTW5900TB0
Automatic Washer
Parts Sections (9)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelWhirlpool
WTW5900TB0Automatic Washer
9 diagrams226 parts
Parts Sections (9)
Diagram

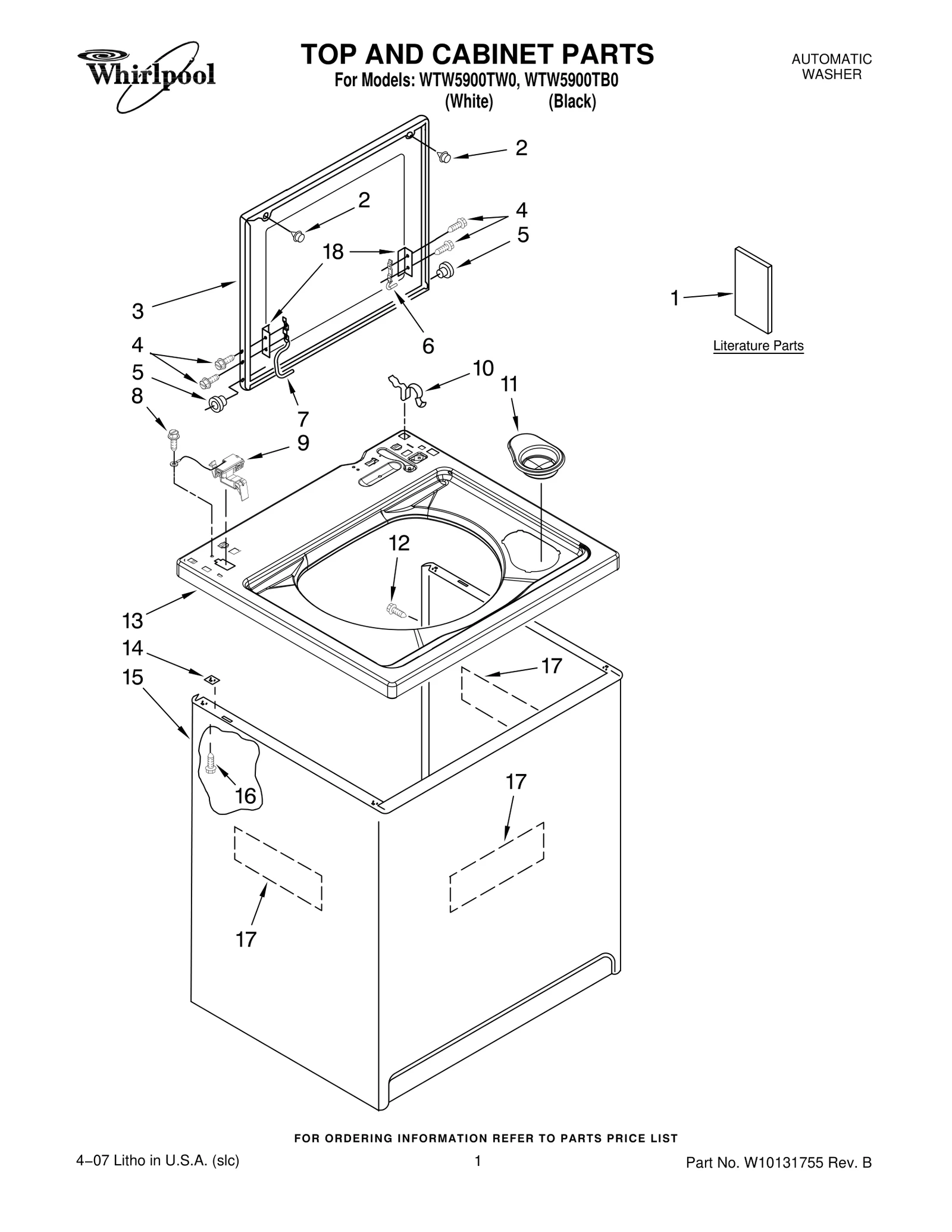

TOP AND CABINET PARTS
Parts in TOP AND CABINET PARTS
26 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | W10044800 Installation | - |
| 1 | – | 3955884 Use & Care Guide | - |
| 1 | – | 3957873 Feature Sheet | - |
| 1 | – | W10133579 Energy Guide | - |
| 1 | – | 8577790 Wiring Diagram | - |
| 1 |  | Manual, Washer | - |
| 2 |  | WP9724509replaces 9724509 Bumper, Lid (2) | $2.41 Part Advantage |
| 3 | | Lid — White | Discontinued |
| 3 | – | 8580038 Lid — Black | - |
| 4 |  | WPW10119828replaces W10119828 Screw, Lid Hinge Mounting (4) | $2.41 Part Advantage |
| 5 | | 8319539NLA Bearing, Lid Hinge (2) | Discontinued |
| 6 |  | WP91770replaces 91770 Hinge, Lid (R.H.) | $8.06 Part Advantage |
| 7 | | 8559336NLA Hinge, Lid (L. H.) | Discontinued |
| 8 |  | WP3351614replaces 3351614 Screw, Ground | $3.62 Parts Dr |
| 9 |  | WP8318084replaces 8318084 Switch, Lid | $18.14 Part Advantage |
| 10 |  | WP62780replaces 62780 Clip, Top & Cabinet & Rear Panel (2) | $3.55 Part Advantage |
| 11 | | 8566266NLA Dispenser, Bleach | Discontinued |
| 12 |  | WP308685replaces 3357011 Screw, 10−16 X 1/2 | $2.30 Part Advantage |
| 13 | | 8566017NLA Top — White | Discontinued |
| 13 | – | 8580043 Top — Black | - |
| 14 |  | WP62750replaces 62750 Spacer, Cabinet To Top (4) | $3.38 Part Advantage |
| 15 |  | Cabinet — White | - |
| 15 | | Cabinet — Black | - |
| 16 |  | WP3390631replaces 3390631 Screw, 10−16 X 3/8 (4) | $2.30 Part Advantage |
| 17 | | 3976348NLA Cabinet−Sound Damper (3) | Discontinued |
| 18 |  | WP21097replaces 21097 Pad, Hinge | $3.38 Part Advantage |
