Model
Whirlpool XVP5000TQ0
Laundry Tower
Parts Sections (1)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelWhirlpool
XVP5000TQ0Laundry Tower
1 diagram23 parts
Parts Sections (1)
Diagram

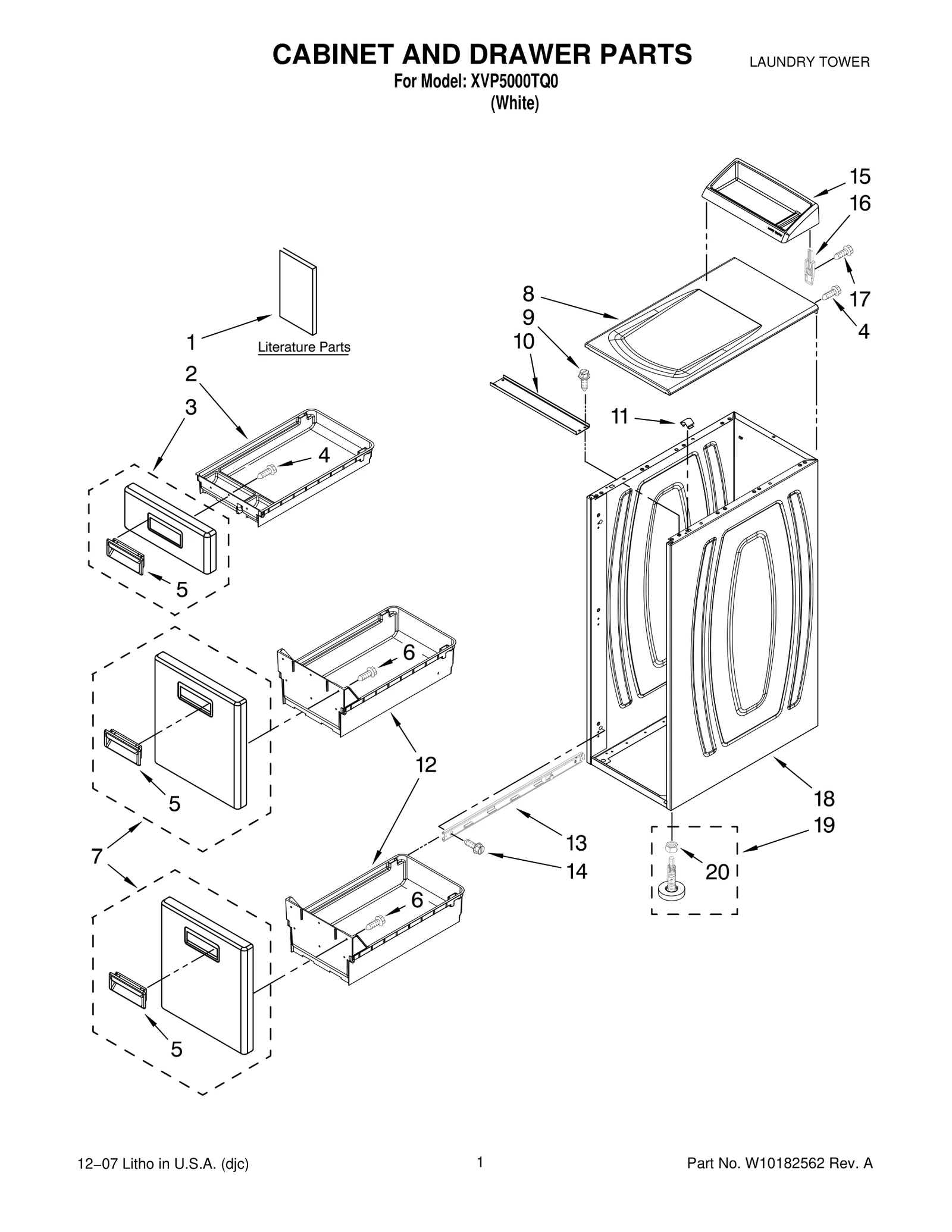

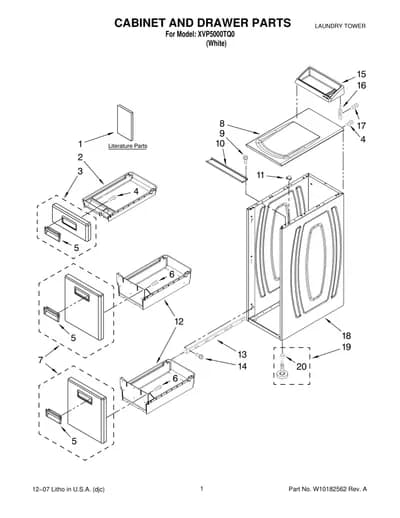

CABINET AND DRAWER PARTS
Parts in CABINET AND DRAWER PARTS
23 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | W10101293 Guide, Use & Care | - |
| 2 | – | W10011500 Drawer Bin, | - |
| 3 | – | W10011610 Drawer Front & Handle Assembly | - |
| 4 |  | W11693756replaces 688983 Screw, 8−18 x 5/8 | $9.83 Parts Dr |
| 5 |  | WP3405184replaces 3405184 Handle | $26.12 Part Advantage |
| 6 |  | WP3400806replaces W10113962 Screw, 8−18 x 1−1/4 | $2.30 Part Advantage |
| 7 | – | W10011600 Drawer Front & Handle Assembly | - |
| 8 | – | W10011320 Top | - |
| 9 |  | WP3196557replaces W10116604 Screw, 8−18 x 3/8 | $2.30 Part Advantage |
| 10 | – | W10011680 Bracket, Top Support | - |
| 11 | – | W10011660 Clip, Top Lock | - |
| 12 |  | Drawer Bin, Large (2) | - |
| 13 | – | W10011420 Slide, Assembly | - |
| 14 |  | WP1163283replaces 3400842 Screw, 8−18 x 1/2 | $3.72 Parts Dr |
| 15 | – | W10101304 Console Assembly | - |
| 16 | – | W10070490 Bracket, Console | - |
| 17 | | WP3400893replaces 3400893 Screw, 8−18 x 5/8 | - |
| 18 | – | N/S Cabinet | - |
| 19 |  | WP8563585replaces 8563585 Leveling Foot & Nut | $6.46 Part Advantage |
| 20 |  | WP3359452replaces 3359452 Nut, Foot PAINT, TOUCH−UP (1/2oz.) | $1.74 Part Advantage |
| 20 |  | White PAINT, PRESSURIZED SPRAY | $4.43 Part Advantage |
| 20 |  | White | $19.58 Part Advantage |
| 20 |  | Primer, Gray | $42.21 Parts Dr |
