Model
Whirlpool XVP8600TW0
Laundry Tower
Parts Sections (1)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelWhirlpool
XVP8600TW0Laundry Tower
1 diagram48 parts
Parts Sections (1)
Diagram

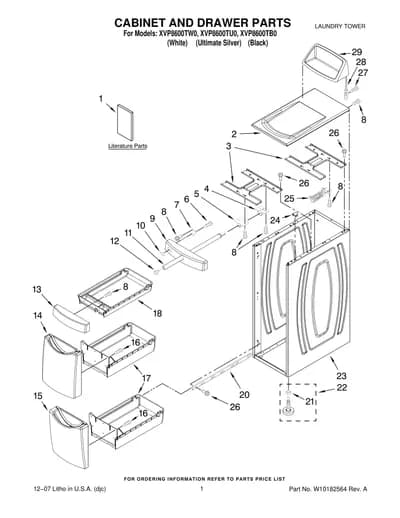

CABINET AND DRAWER PARTS
Parts in CABINET AND DRAWER PARTS
48 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | W10101294 Guide, Use & Care | - |
| 2 | – | W10011320 Top — White | - |
| 2 | – | W10064060 Top — Ultimate Silver | - |
| 2 | – | W10064030 Top — Black | - |
| 3 | – | W10070580 Bracket, Top Support | - |
| 4 | – | W10101183 Bushing Sleeve Rear, Stop | - |
| 5 | – | W10101184 Bushing Sleeve Front | - |

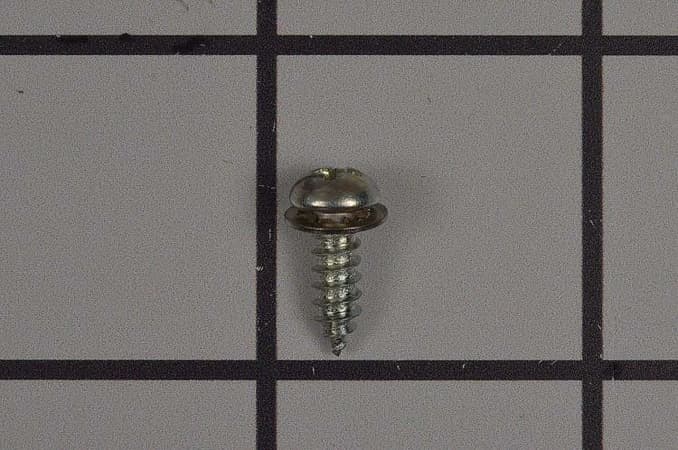

| 6 |  | WP489437replaces 489437 Screw, 10−16 x 1/2 | - |
| 7 | – | W10011880 Bracket, Pogo Front (2) | - |
| 8 |  | W11693756replaces 688983 Screw, 8−18 x 5/8 | $9.83 Parts Dr |
| 9 | – | W10101270 Front, Pogo (Includes — White | - |
| 9 | – | W10101272 Front, Pogo (Includes — Ultimate Silver | - |
| 9 | – | W10101271 Front, Pogo (Includes — Black | - |
| 10 | – | W10101253 Medallion | - |
| 11 | – | W10011750 Pogo Bar Assembly | - |
| 12 | – | W10011740 End Cap, Pogo Bar | - |
| 13 | – | W10011560 Front, Organizer Drawer — White | - |
| 13 | – | W10103270 Front, Organizer Drawer — Ultimate Silver | - |
| 13 | – | W10103250 Front, Organizer Drawer — Black | - |
| 14 | – | W10011550 Front, Middle Drawer — White | - |
| 14 | – | W10070360 Front, Middle Drawer — Ultimate Silver | - |
| 14 | | Front, Middle Drawer — Black | - |
| 15 | – | W10011540 Front, Bottom Drawer — White | - |
| 15 | – | W10070320 Front, Bottom Drawer — Ultimate Silver | - |
| 15 | – | W10070300 Front, Bottom Drawer — Black | - |
| 16 |  | WP3400806replaces W10113962 Screw, 8−18 x 1−1/4 | $2.30 Part Advantage |
| 17 | | Drawer Bin, Large (2) | - |
| 18 | – | W10011500 Drawer Bin, Small | - |
| 20 | – | W10011420 Slide, Assembly | - |
| 21 |  | WP3359452replaces 3359452 Nut, Foot | $1.74 Part Advantage |
| 22 |  | WP8563585replaces 8563585 Leveling Foot & Nut | $6.46 Part Advantage |
| 23 | – | N/S Cabinet | - |
| 24 | – | W10011660 Clip, Top Lock | - |
| 25 | – | W10101220 Push Mechanism Assembly | - |
| 26 |  | WP1163283replaces 3400842 Screw, 8−18 x 1/2 | $3.72 Parts Dr |
| 27 | | WP3400893replaces 3400893 Screw, 8−18 x 5/8 | - |
| 28 | – | W10070490 Bracket, Console — White | - |
| 28 | – | W10101240 Bracket, Console — Ultimate Silver | - |
| 28 | – | W10101238 Bracket, Console — Black | - |
| 29 | – | W10070550 Console Assembly — White | - |
| 29 | – | W10070840 Console Assembly — Ultimate Silver | - |
| 29 | – | W10070820 Console Assembly — Black | - |
| 29 |  | Console Assembly — White | $3.58 Part Advantage |
| 29 | | Console Assembly — Ultimate Silver | $13.80 RepairClinic |
| 29 |  | Console Assembly — Black | $5.12 Part Advantage |
| 29 |  | Console Assembly — White | $11.79 Amazon |
| 29 |  | Console Assembly — Black | $29.58 Parts Dr |
| 29 |  | Primer, Gray | $37.00 Parts Dr |
