Whirlpool XW18500VW0
Slide−Out Worksurface
Parts Sections (1)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelWhirlpool
XW18500VW0Slide−Out Worksurface
1 diagram13 parts
Parts Sections (1)
Diagram

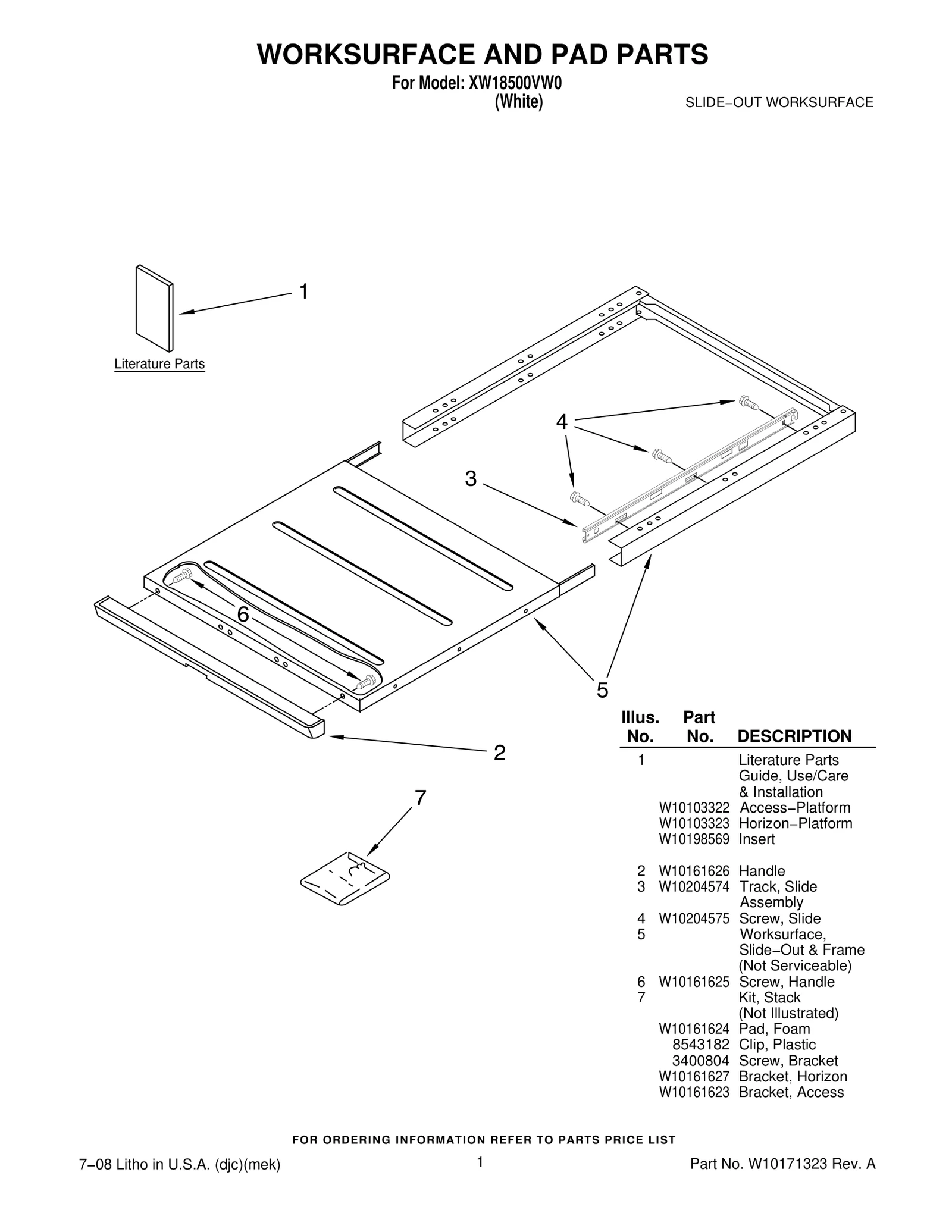

WORKSURFACE AND PAD PARTS
Parts in WORKSURFACE AND PAD PARTS
13 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | W10103322 Guide, Use/Care & Installation — Access−Platform | - |
| 1 | – | W10103323 Guide, Use/Care & Installation — Horizon−Platform | - |
| 1 | – | W10198569 Guide, Use/Care & Installation — Insert | - |
| 2 | – | W10161626 Handle | - |
| 3 | – | W10204574 Track, Slide Assembly | - |
| 4 | – | W10204575 Screw, Slide | - |
| 5 | – | N/S Worksurface, Slide−Out & Frame | - |
| 6 | – | W10161625 Screw, Handle | - |
| 7 | – | W10161624 Pad, Foam | - |
| 7 | – | 8543182 Clip, Plastic | - |
| 7 |  | W10852658replaces 3400804 Screw, Bracket | - |
| 7 | – | W10161627 Bracket, Horizon | - |
| 7 | – | W10161623 Bracket, Access SLIDE−OUT WORKSURFACE 7−08 Litho in U.S.A. (djc)(mek) | - |
