Model
Amana YAMV1160VAB0
Microwave Oven 1.6 Cu. Ft.
Parts Sections (6)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelAmana
YAMV1160VAB0Microwave Oven 1.6 Cu. Ft.
6 diagrams90 parts
Parts Sections (6)
Diagram

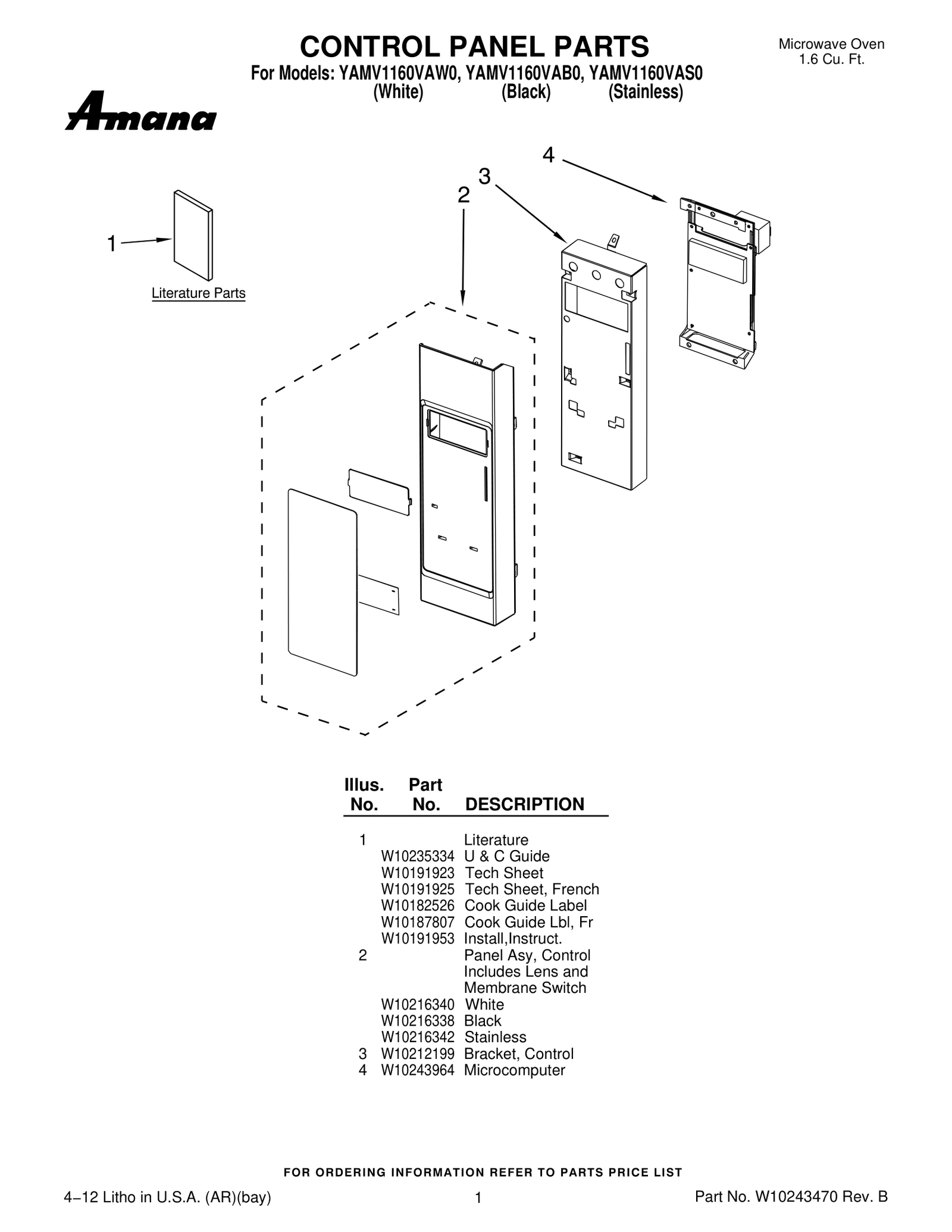

CONTROL PANEL PARTS
Parts in CONTROL PANEL PARTS
11 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | W10235334 U & C Guide | - |
| 1 | – | W10191923 Tech Sheet | - |
| 1 | – | W10191925 Tech Sheet, French | - |
| 1 | – | W10182526 Cook Guide Label | - |
| 1 | – | W10187807 Cook Guide Lbl, Fr | - |
| 1 | – | W10191953 Install,Instruct. | - |
| 2 |  | Panel Asy, Control Includes Lens and Membrane Switch — White | - |
| 2 | | Panel Asy, Control Includes Lens and Membrane Switch — Black | - |
| 2 | | Panel Asy, Control Includes Lens and Membrane Switch — Stainless | - |
| 3 | – | W10212199 Bracket, Control | - |
| 4 | – | W10243964 Microcomputer | - |
