Model
Gladiator YGEW9250SU0
Electric Dryer
Parts Sections (5)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelGladiator
YGEW9250SU0Electric Dryer
5 diagrams174 parts
Parts Sections (5)
Diagram

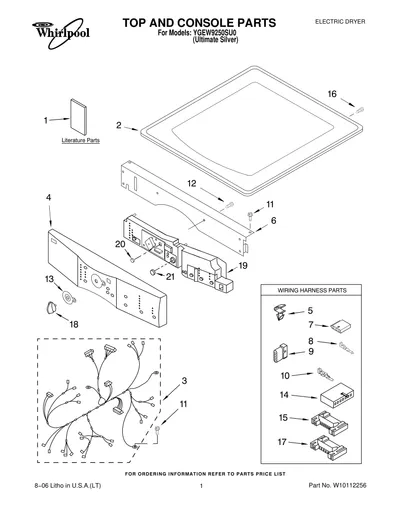

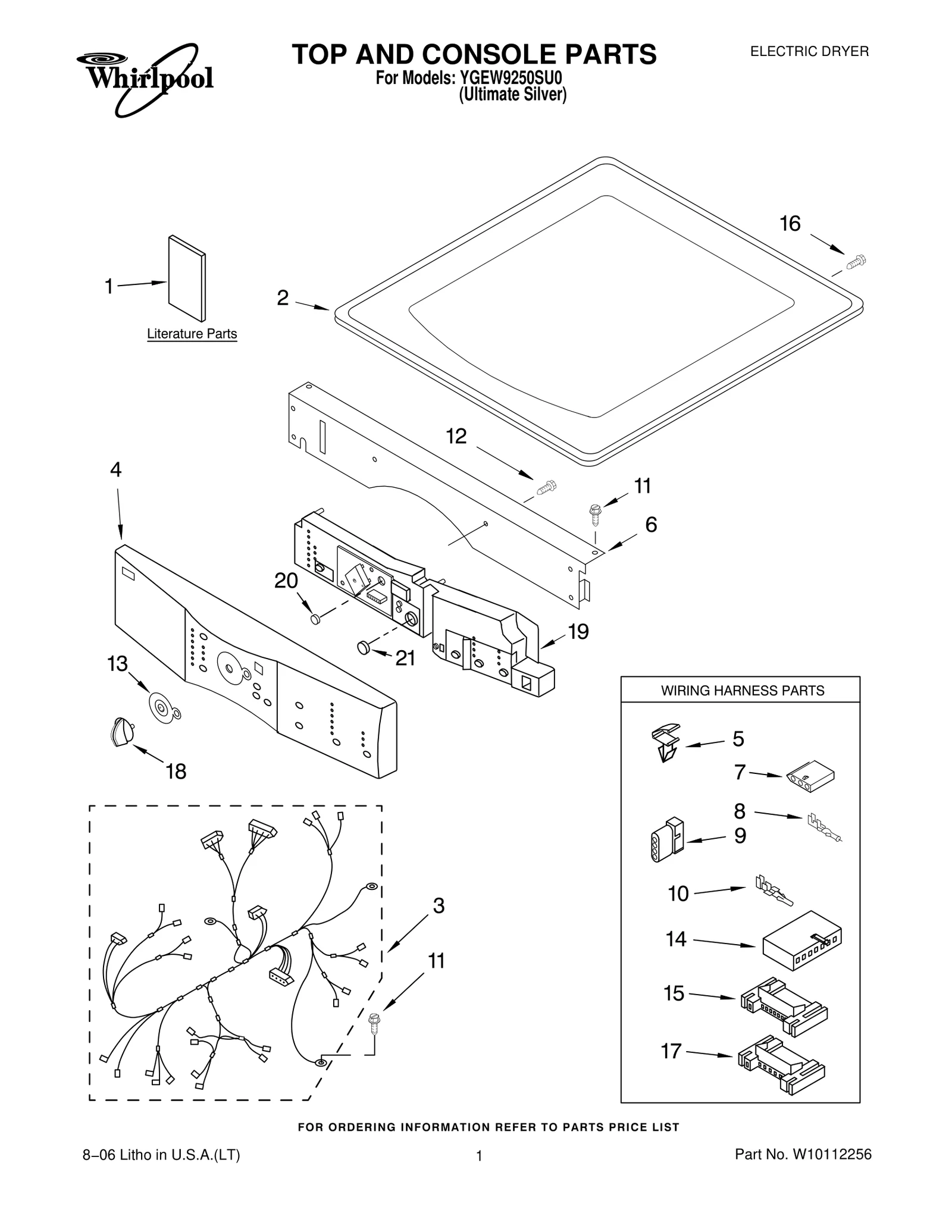

TOP AND CONSOLE PARTS
Parts in TOP AND CONSOLE PARTS
23 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | W10049530 Use & Care Guide | - |
| 1 | – | 8558724 Tech Sheet | - |
| 1 | – | 8563723 Guide, Quick Start | - |
| 2 | – | 8579115 Top — Silver | - |
| 3 | – | 8529984 Harness, Main | - |
| 4 |  | 8579111NLA Panel, Console — Silver | Discontinued |
| 5 |  | WP3394427replaces 3394427 Clip, Harness | $3.38 Part Advantage |
| 6 | – | 8519271 Bracket, Console | - |
| 7 |  | Connector, Sensor | - |
| 8 |  | WP94614replaces 94614 Terminal | $4.95 ApplianceParts Pro |
| 9 |  | Plug, Terminal | - |
| 10 |  | WP596797replaces 94613 Terminal | $7.95 ApplianceParts Pro |
| 11 |  | WP488729replaces 3390647 Screw, 8−18 x 1/2 | $2.41 Part Advantage |
| 12 |  | WP488787replaces 488886 Screw, 8−18 x 1/2 | $11.71 ApplianceParts Pro |
| 13 | | 8519406NLA Bezel, Cycle | Discontinued |
| 14 |  | Connector, 7−Circuit | - |
| 15 |  | Connector, | $40.40 ApplianceParts Pro |
| 16 | | Screw, 8−18 x 1/2 | - |
| 17 |  | Connector, 5−Circuit | - |
| 18 | | Knob, Assembly — Silver | - |
| 19 | | 8559431NLA User Interface — Silver | Discontinued |
| 20 | | Button, Start | - |
| 21 | | Button, Pause/Cancel | - |
