Model
Gladiator YGH7145XFB1
Microwave Oven 1.4 Cu. Ft.
Parts Sections (6)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelGladiator
YGH7145XFB1Microwave Oven 1.4 Cu. Ft.
6 diagrams118 parts
Parts Sections (6)
Diagram

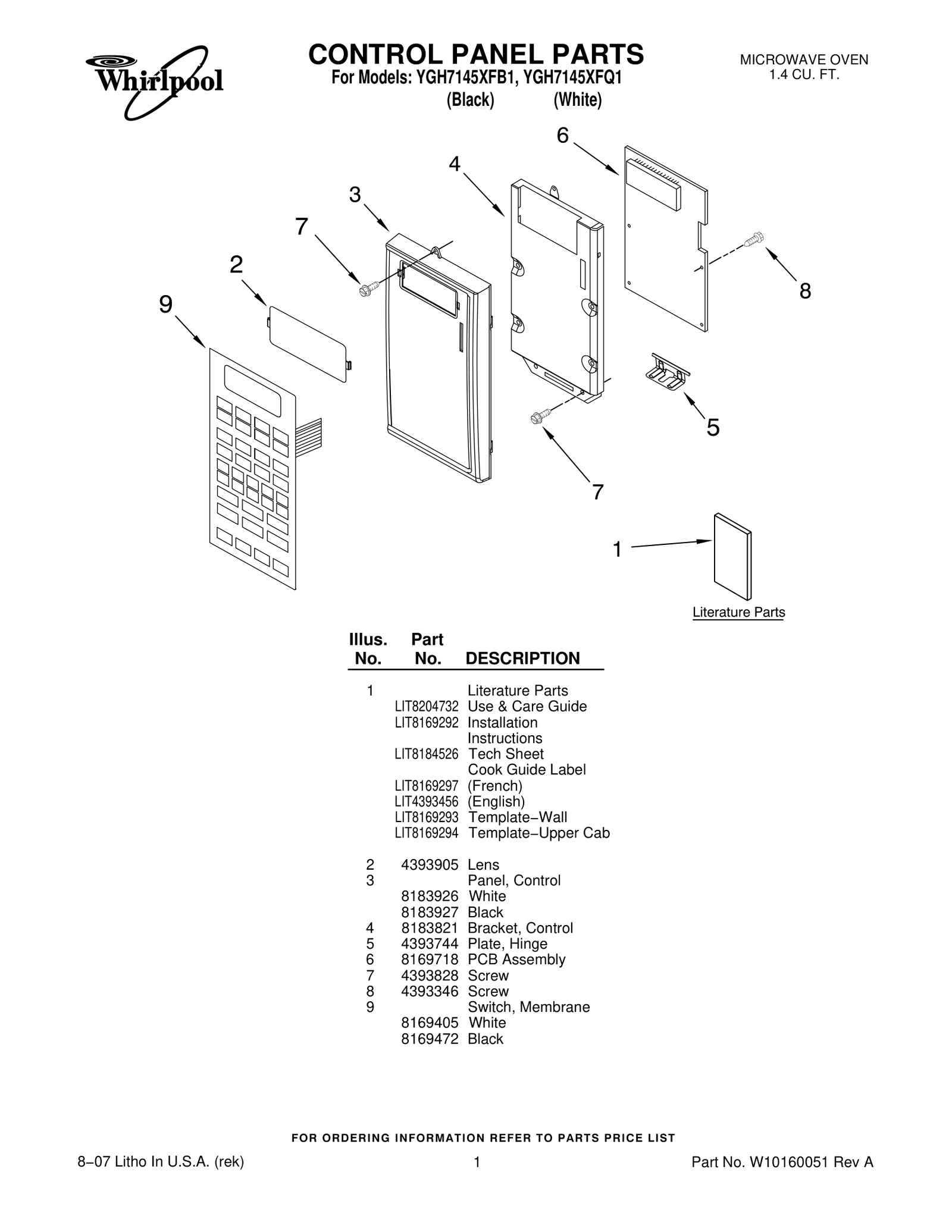

CONTROL PANEL PARTS
Parts in CONTROL PANEL PARTS
11 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | N/S LIT8204732 Use & Care Guide LIT8169292 Installation Instructions LIT8184526 Tech Sheet Cook Guide Label LIT8169297 (French) LIT4393456 (English) LIT8169293 Template−Wall LIT8169294 Template−Upper Cab | - |
| 2 |  | Lens | $2.38 RepairClinic |
| 3 | | 8183926NLA Panel, Control — White | Discontinued |
| 3 | | Panel, Control — Black | - |
| 4 | | Bracket, Control | - |
| 5 | | 4393744NLA Plate, Hinge | Discontinued |
| 6 | | PCB Assembly | - |
| 7 | | Screw | Discontinued |
| 8 | | Screw | - |
| 9 | | 8205625replaces 8169405 Switch, Membrane — White | - |
| 9 | | Switch, Membrane — Black | - |
