Model
IKEA YISE630VS11
30" Slide−In Electric Range
Parts Sections (6)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelIKEA
YISE630VS1130" Slide−In Electric Range
6 diagrams116 parts
Parts Sections (6)
Diagram

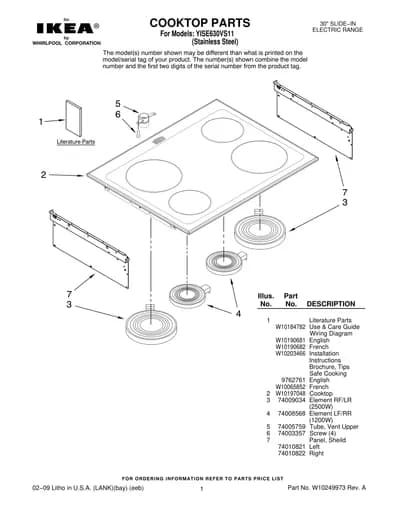

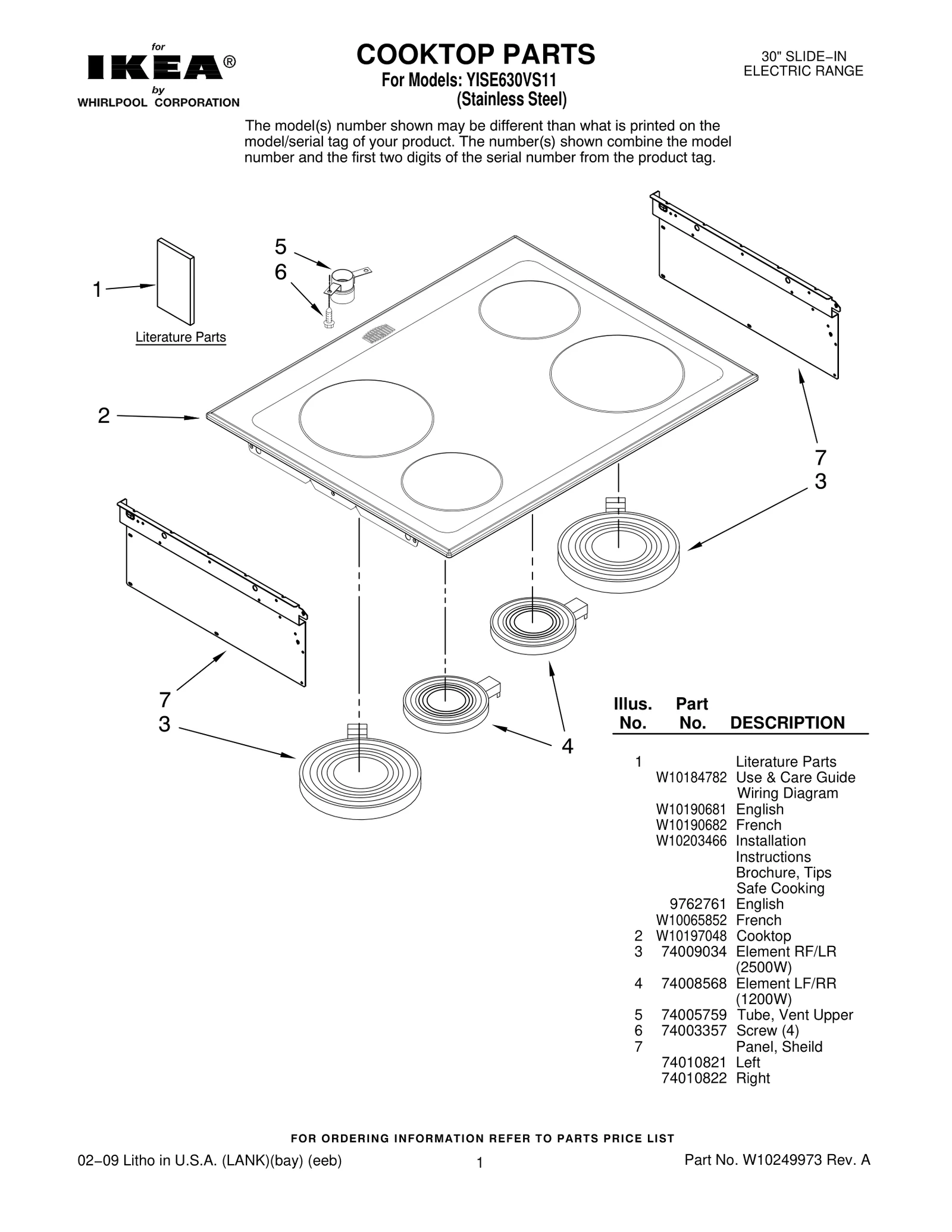

COOKTOP PARTS
Parts in COOKTOP PARTS
13 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | W10184782 Use & Care Guide Wiring Diagram | - |
| 1 | – | W10190681 English | - |
| 1 | – | W10190682 French | - |
| 1 | – | W10203466 Installation Instructions Brochure, Tips Safe Cooking | - |
| 1 | – | 9762761 English | - |
| 1 | – | W10065852 French | - |
| 2 |  | W10283756replaces W10197048 Cooktop | - |
| 3 |  | W10823696replaces 74009034 Element RF/LR | $87.70 Amazon |
| 4 |  | W10823711replaces 74008568 Element LF/RR | $92.55 Part Advantage |
| 5 | – | 74005759 Tube, Vent Upper | - |
| 6 |  | WP7101P498replaces 74003357 Screw (4) | $7.30 |
| 7 | | 74010821NLA Panel, Sheild — Left | Discontinued |
| 7 |  | 2618F206-51replaces 74010822 Panel, Sheild — Right | $65.46 PartSelect |
