Model
Whirlpool YLEW0050PQ3
Compact Electric Dryer
Parts Sections (4)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelWhirlpool
YLEW0050PQ3Compact Electric Dryer
4 diagrams95 parts

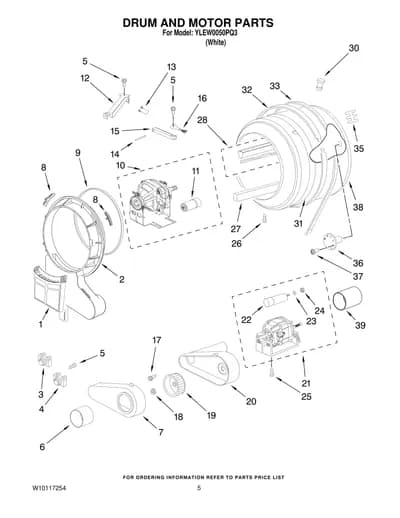

Parts Sections (4)
Diagram

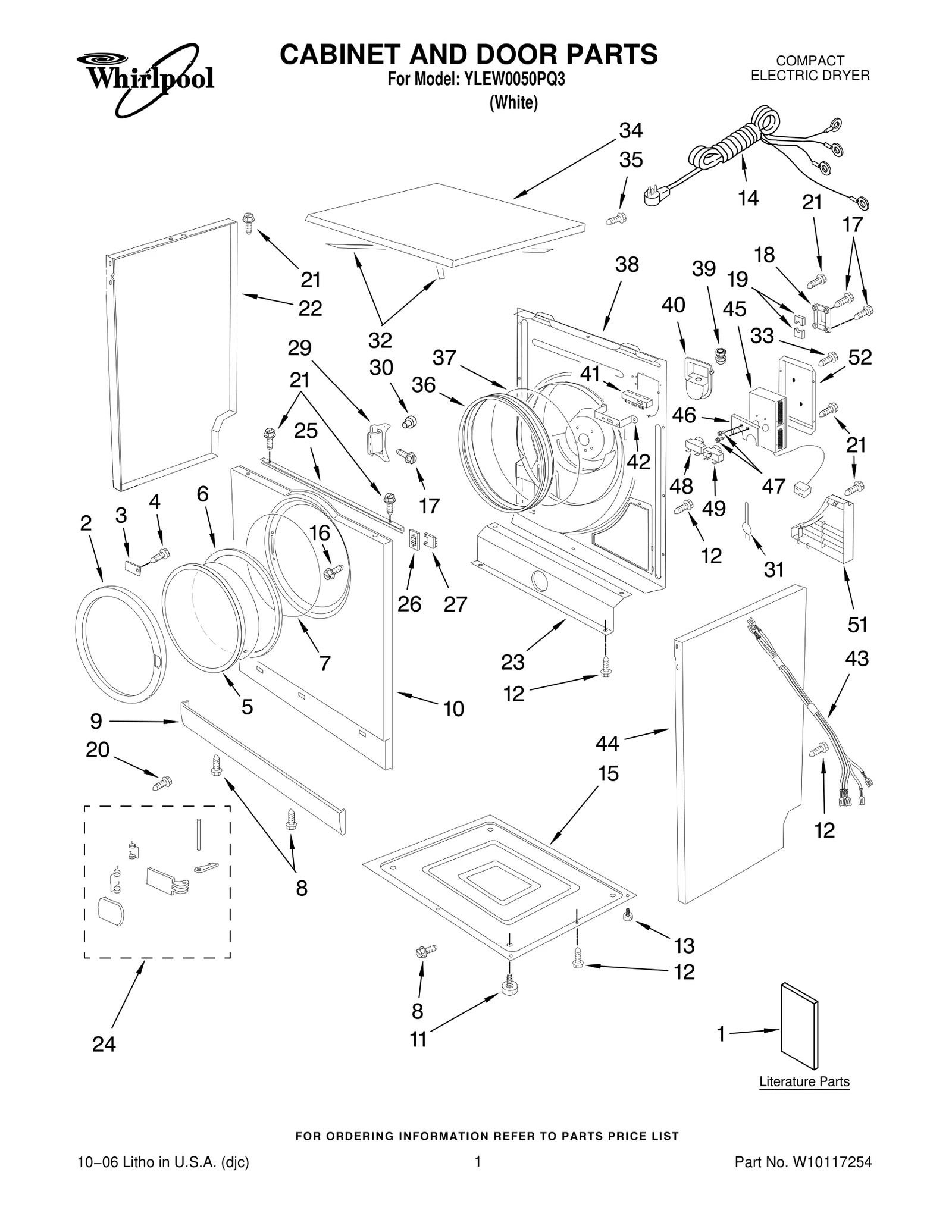

CABINET AND DOOR PARTS
Parts in CABINET AND DOOR PARTS
51 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | 8578568 Use & Care Guide | - |
| 1 |  | 8182608NLA Wiring Diagram | Discontinued |
| 2 |  | WP8182406replaces 8182406 Frame, Door Outer | - |
| 3 | | Retainer Insert | - |
| 4 |  | WPW10253196replaces 8182333 Screw, Retaining Insert | - |
| 5 |  | WP8182516replaces 8182516 Glass, Door | $276.95 ApplianceParts Pro |
| 6 |  | Frame, Inner Door | $102.02 RepairClinic |
| 7 | | Gasket, Door | - |
| 8 |  | Screw | - |
| 9 | | 8182503NLA Toe Panel | Discontinued |
| 10 | – | N/S Front Panel | - |
| 11 |  | WP8182479replaces 8182479 Foot, Adjustable | $68.95 ApplianceParts Pro |
| 12 |  | W11233072replaces 8182338 Screw | $8.78 Part Advantage |
| 13 |  | WP12990527replaces 8182459 Screw, Cabinet | $2.30 Part Advantage |
| 14 | – | 8183118 Power Cord | - |
| 15 | – | 8182480 Base | - |
| 16 |  | Screw, Door Catch | - |
| 17 | | Screw | $31.98 ApplianceParts Pro |
| 18 |  | Cover, Drum Shaft Support | - |
| 19 | | Support, Drum Shaft | - |
| 20 | | WP12990527replaces 8182412 Screw, Door Handle | $2.30 Part Advantage |
| 21 |  | W11245710replaces 8182323 Screw | $10.70 Parts Dr |
| 22 |  | Side Panel (LH) | - |
| 23 |  | Panel, Lower Rear | - |
| 24 | | 8182574NLA Kit, Door Handle | Discontinued |
| 25 |  | Bracket, Front Panel | - |
| 26 |  | Plate, Door Switch | - |
| 27 |  | WP8182530replaces 8182530 Door Switch | $101.80 Part Advantage |
| 29 | – | N/S Door Hinge | - |
| 30 | – | N/S Rivet, Hinge | - |
| 31 | | Spring, Thermostat | - |
| 32 | | Cross−Bar, Cabinet | - |
| 33 | | Screw, Element Cover | - |
| 34 |  | Top | - |
| 35 | | W11233072replaces 8182338 Screw | $8.78 Part Advantage |
| 36 |  | WP8182507replaces 8182507 Seal, Rear Drum | - |
| 37 | | Retaining Ring, Rear Seal | - |
| 38 |  | Panel, Rear | - |
| 39 | | Nut, Power Cord | - |
| 40 |  | Cover, Terminal Block | $105.95 RepairClinic |
| 41 | | 8182525NLA Terminal Block | Discontinued |
| 42 |  | Mounting Bracket, Terminal Block | - |
| 43 | – | 8183267 Wire Harness | - |
| 44 |  | WP8182520replaces 8182520 Side Panel (RH) | - |
| 45 |  | WP8182528replaces 8182528 Heater Element | $93.71 Part Advantage |
| 46 | | 8182505NLA Plate, Thermostat | Discontinued |
| 47 | – | 8182491 Screw, Plate | - |
| 48 |  | W10843940replaces 8182508 Thermostat, 194 F (98C) | $119.45 Parts Dr |
| 49 |  | WPW10483239replaces 8182502 Thermostat, (TCO) | $130.59 ApplianceParts Pro |
| 51 | | Cover, Inlet | - |
| 52 | | Cover, Element | - |
