Model
Maytag YMED5900TW0
29" Electric Dryer
Parts Sections (4)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelMaytag
YMED5900TW029" Electric Dryer
4 diagrams129 parts
Parts Sections (4)

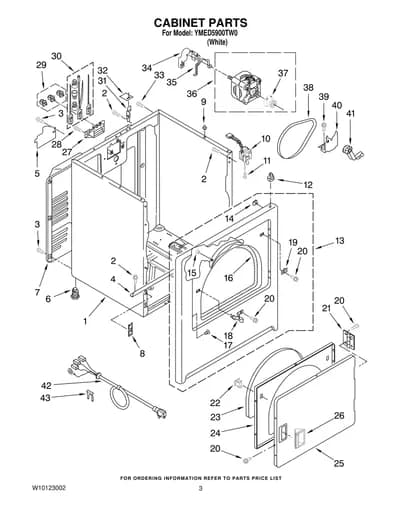

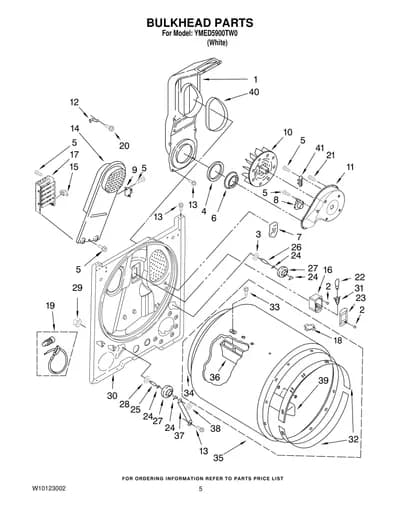

Diagram

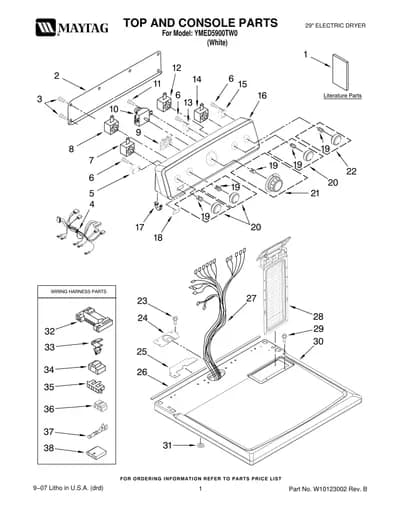

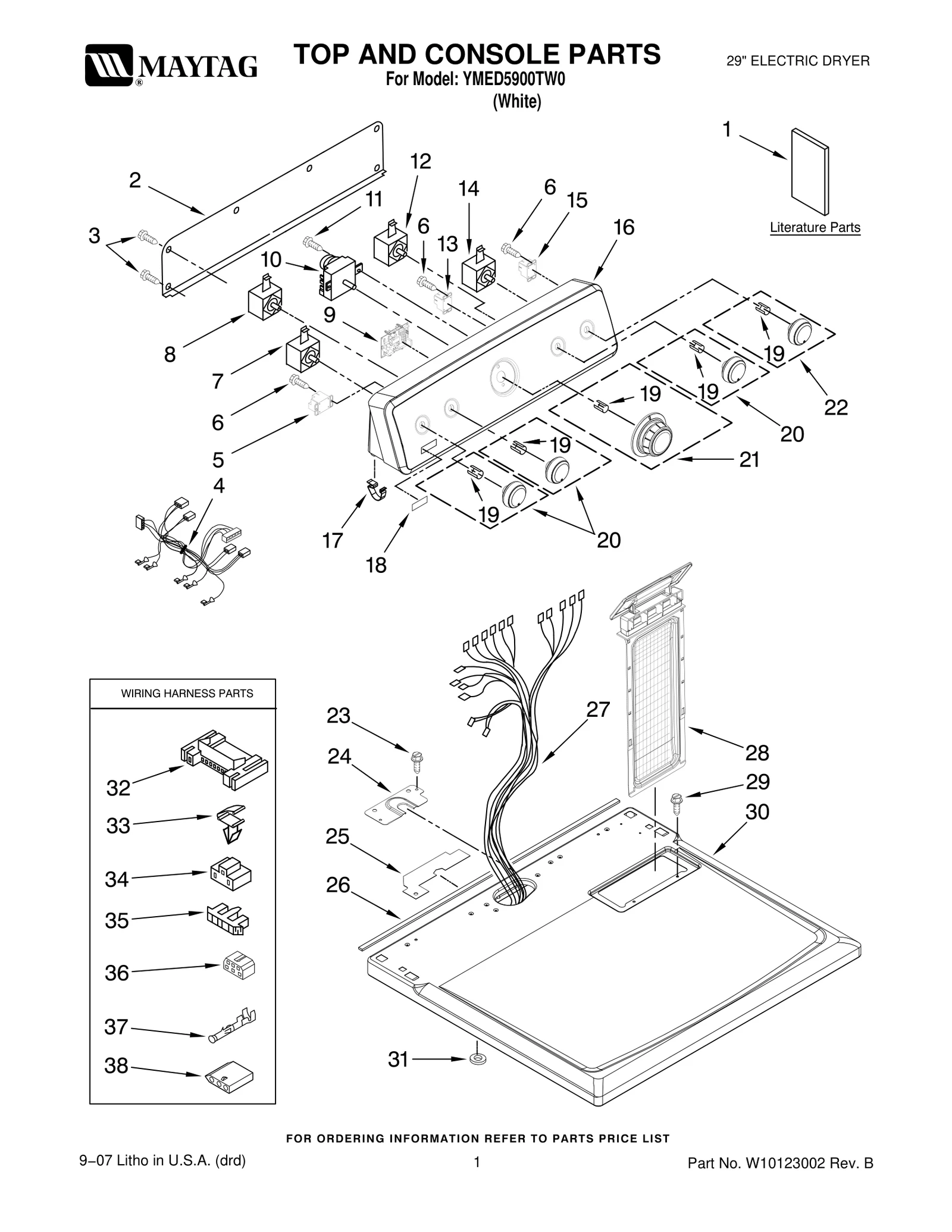

TOP AND CONSOLE PARTS
Parts in TOP AND CONSOLE PARTS
40 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | W10088770 Use & Care Guide | - |
| 1 | – | W10089172 Dryer Cycle Sheet | - |
| 1 | – | W10118755 Tech Sheet | - |
| 2 |  | Panel, Console Rear | - |
| 3 |  | WP489069replaces 693995 Screw, 8−18 x 3/8 | $2.30 Part Advantage |
| 4 | – | W10108400 Harness, Wiring Center Control | - |
| 5 |  | WP3405281replaces 3405281 Relay, Motor | $17.66 Part Advantage |
| 6 |  | WP3388228replaces 3388228 Screw,8−18 x 11/32 | $2.30 Part Advantage |

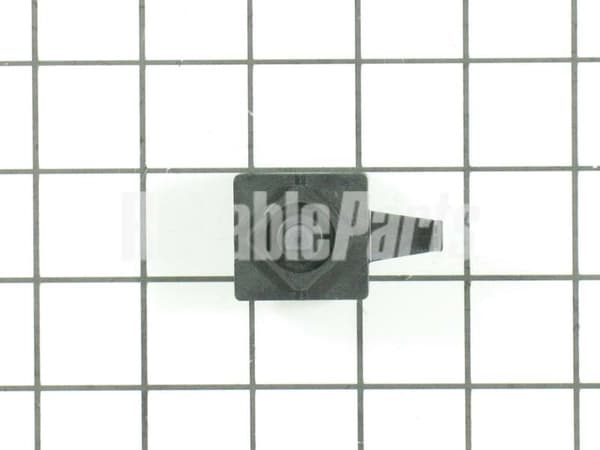

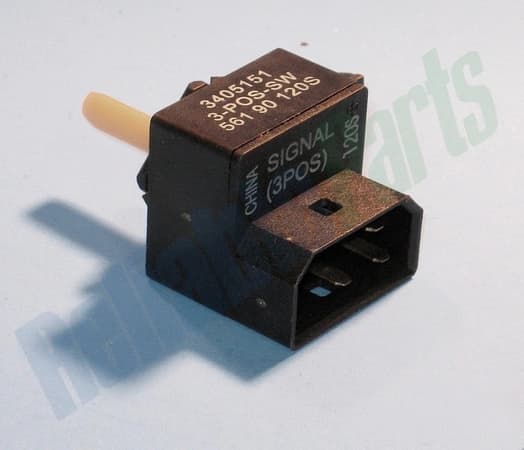

| 7 |  | Switch, End Of Cycle | - |
| 8 |  | Switch, Wrinkle Guard | - |
| 9 | | W10111812NLA Control Assembly | Discontinued |
| 10 |  | WP8299771replaces 8299771 Timer, 60 Hz. | $114.34 Part Advantage |
| 11 |  | WP90767replaces 8533971 Screw, 8−18 x 5/16 | $2.30 Part Advantage |
| 12 |  | Switch, Temperature | - |
| 13 |  | WP8566493replaces 8566493 Relay, Heater | $31.63 Part Advantage |
| 14 | | Switch, Push−To−Start | - |
| 15 | | WP3405281replaces 3405281 Relay, Heater | $17.66 Part Advantage |
| 16 | | Console & Shell Assembly (Includes Items 17 & 18) | - |
| 17 |  | WP8312709replaces 8312709 Clip, Console | $7.96 Part Advantage |
| 18 |  | W10203949replaces W10112569 Badge Assembly | - |
| 19 |  | WP8536939replaces 8536939 Clip, Spring | $3.55 Part Advantage |
| 20 |  | WPW10110035replaces W10110035 Knob, Control (3) | $45.24 ApplianceParts Pro |
| 21 |  | WPW10110036replaces W10110036 Knob, Timer | $40.05 Parts Dr |
| 22 | – | W10110037 Knob, Push−To−Start | - |
| 23 |  | WP33001882replaces 337686 Screw, 8−18 x 1/2 | $27.07 ApplianceParts Pro |
| 24 | – | 8565981 Bracket, Harness | - |
| 25 | – | W10118608 Seal, Harness | - |
| 26 |  | Seal, Foam Console Bracket | - |
| 27 | – | W10115065 Harness, Wiring | - |
| 28 |  | W11778253replaces 8565972 Screen, Lint | $32.05 Part Advantage |
| 29 |  | W11693756replaces 688983 Screw, 8−18 x 5/8 | $9.83 Parts Dr |
| 30 | | W10112599NLA Top | Discontinued |
| 31 | – | 237446 Washer (Top/Chute) | - |
| 32 |  | Connector (Motor) | $40.40 ApplianceParts Pro |
| 33 |  | WP3394427replaces 3394427 Clip, Harness | $3.38 Part Advantage |
| 34 |  | Connector | - |
| 35 |  | Connector (Timer) | - |
| 36 | | 3347243NLA Connector, 6−Circuit | Discontinued |
| 37 |  | WP94614replaces 94614 Terminal | $4.95 ApplianceParts Pro |
| 38 |  | Connector | - |
