Model
Roper YRED4300TQ0
29" Electric Dryer
Parts Sections (4)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelRoper
YRED4300TQ029" Electric Dryer
4 diagrams108 parts

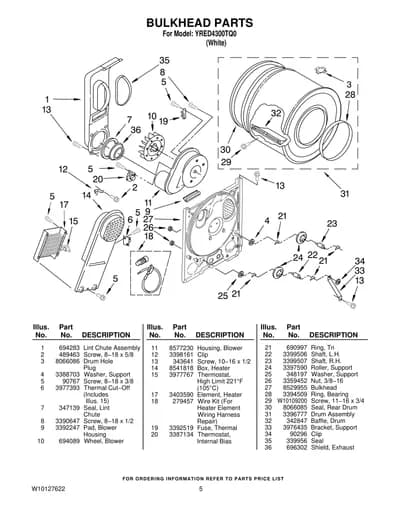

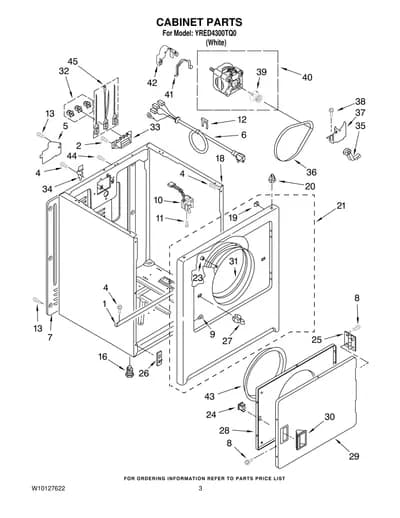

Parts Sections (4)
Diagram

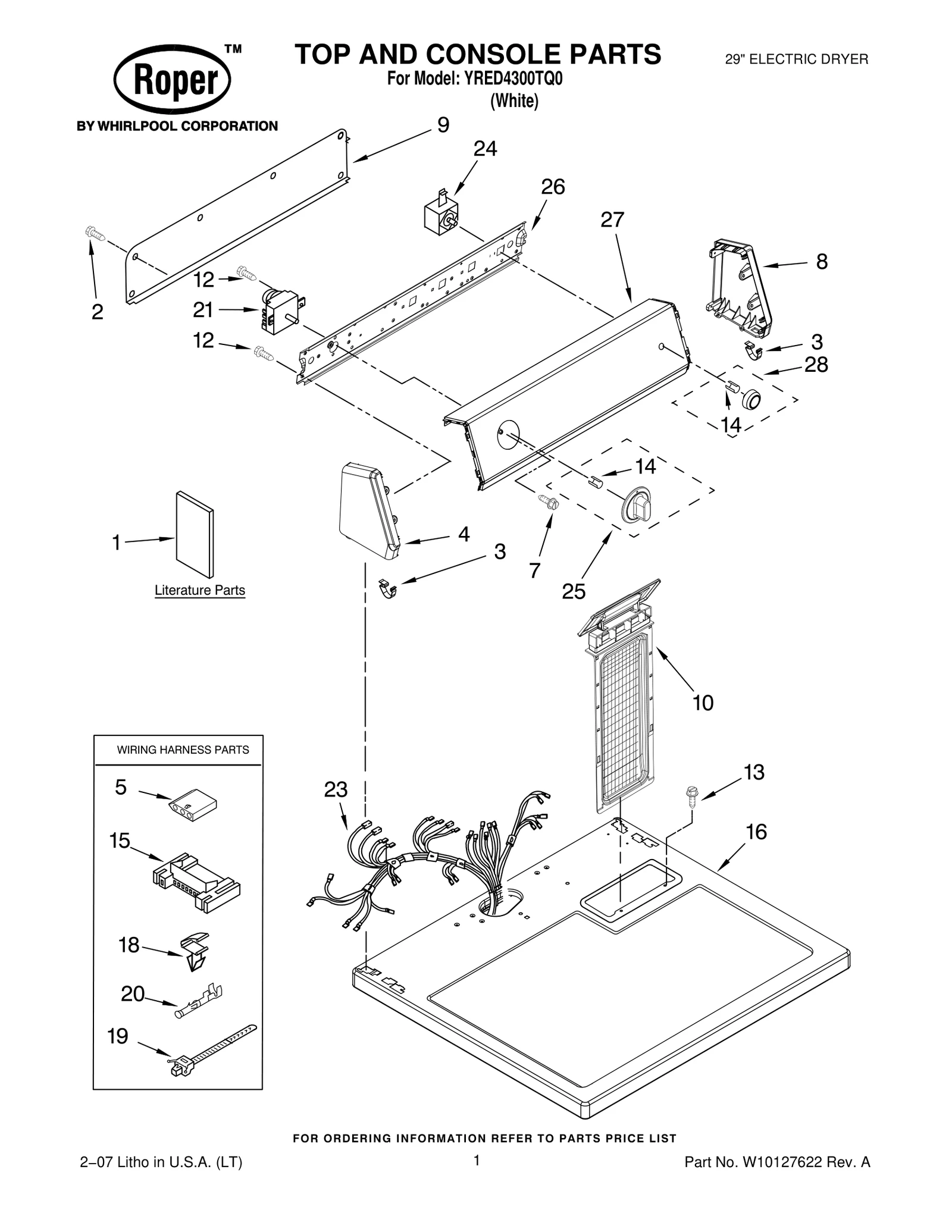

TOP AND CONSOLE PARTS
Parts in TOP AND CONSOLE PARTS
28 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | W10088772 Guide, Use & Care | - |
| 1 | – | W10088970 Instructions, | - |
| 1 | – | W10089175 Sheet, | - |
| 1 | – | 8528188 Wiring Diagram | - |
| 1 |  | 677818NLA Dryer | Discontinued |
| 2 |  | WP489069replaces 693995 Screw, Hex Head | $2.30 Part Advantage |
| 3 |  | WP8312709replaces 8312709 Clip, Console | $7.96 Part Advantage |
| 4 | | 8579674NLA Cap, End (L.H.) | Discontinued |
| 5 |  | Connector | - |
| 7 |  | 3400859replaces 8533951 Screw, Grounding | $6.10 RepairClinic |
| 8 | | 8579673NLA Cap, End (R.H.) | Discontinued |
| 9 |  | W10103406replaces 8274261 Panel, Rear Console | - |
| 10 |  | W10874409replaces 8558467 Screen, Lint | $37.37 Part Advantage |
| 12 |  | WP90767replaces 8533971 Screw, 8−18 x 5/16 | $2.30 Part Advantage |
| 13 |  | W11693756replaces 688983 Screw, 8−18 x 5/8 | $9.83 Parts Dr |
| 14 |  | WP8536939replaces 8536939 Clip, Spring | $3.55 Part Advantage |
| 15 |  | Connector | $40.40 ApplianceParts Pro |
| 16 |  | WP8563663replaces 8559800 Top | $101.61 Part Advantage |
| 18 |  | WP3394427replaces 3394427 Clip, Harness | $3.38 Part Advantage |
| 19 | | Tie, Cable | - |
| 20 |  | WP94614replaces 94614 Terminal | $4.95 ApplianceParts Pro |
| 21 |  | WP8299781replaces 8299781 Timer, 60 Hz. | $142.59 Part Advantage |
| 23 | – | 8299868 Harness, Wiring | - |
| 24 |  | WP3977456replaces 3977456 Switch, Push−To−Start | $12.92 Part Advantage |
| 25 | | W10110064NLA Timer Knob Assembly | Discontinued |
| 26 | – | 8579672 Bracket, Control | - |
| 27 | – | W10086699 Panel, Control | - |
| 28 |  | Knob, Push−To−Start | $50.57 ApplianceParts Pro |
