Model
Whirlpool YWGD5300VW1
29"Gas Dryer
Parts Sections (5)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelWhirlpool
YWGD5300VW129"Gas Dryer
5 diagrams149 parts
Parts Sections (5)

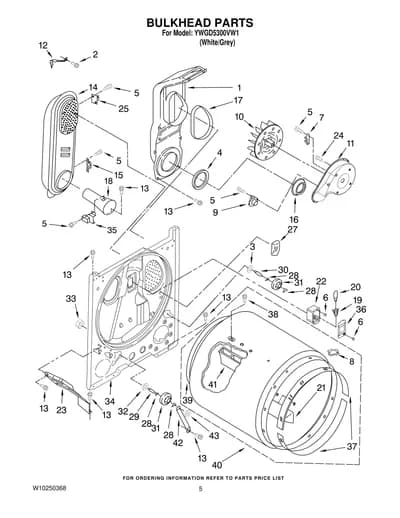

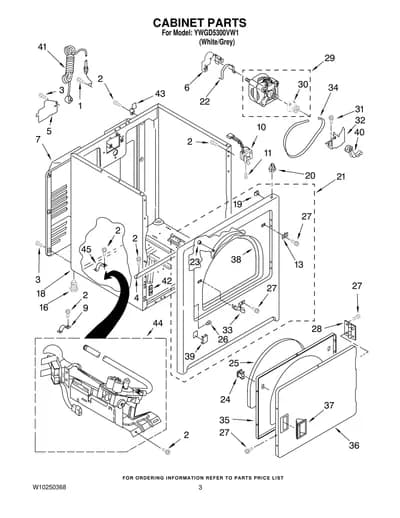

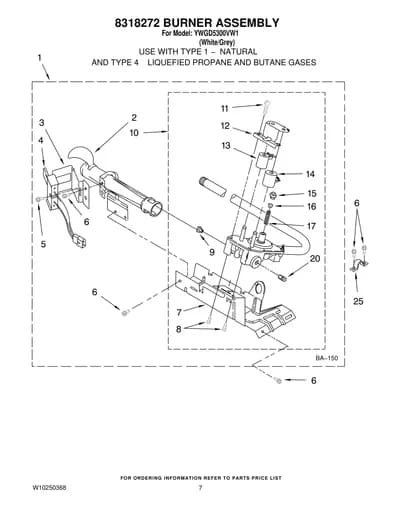

Diagram

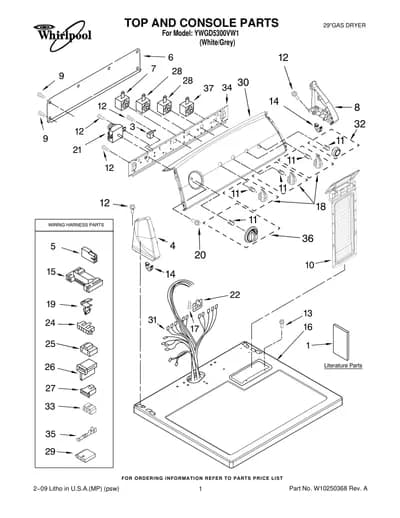

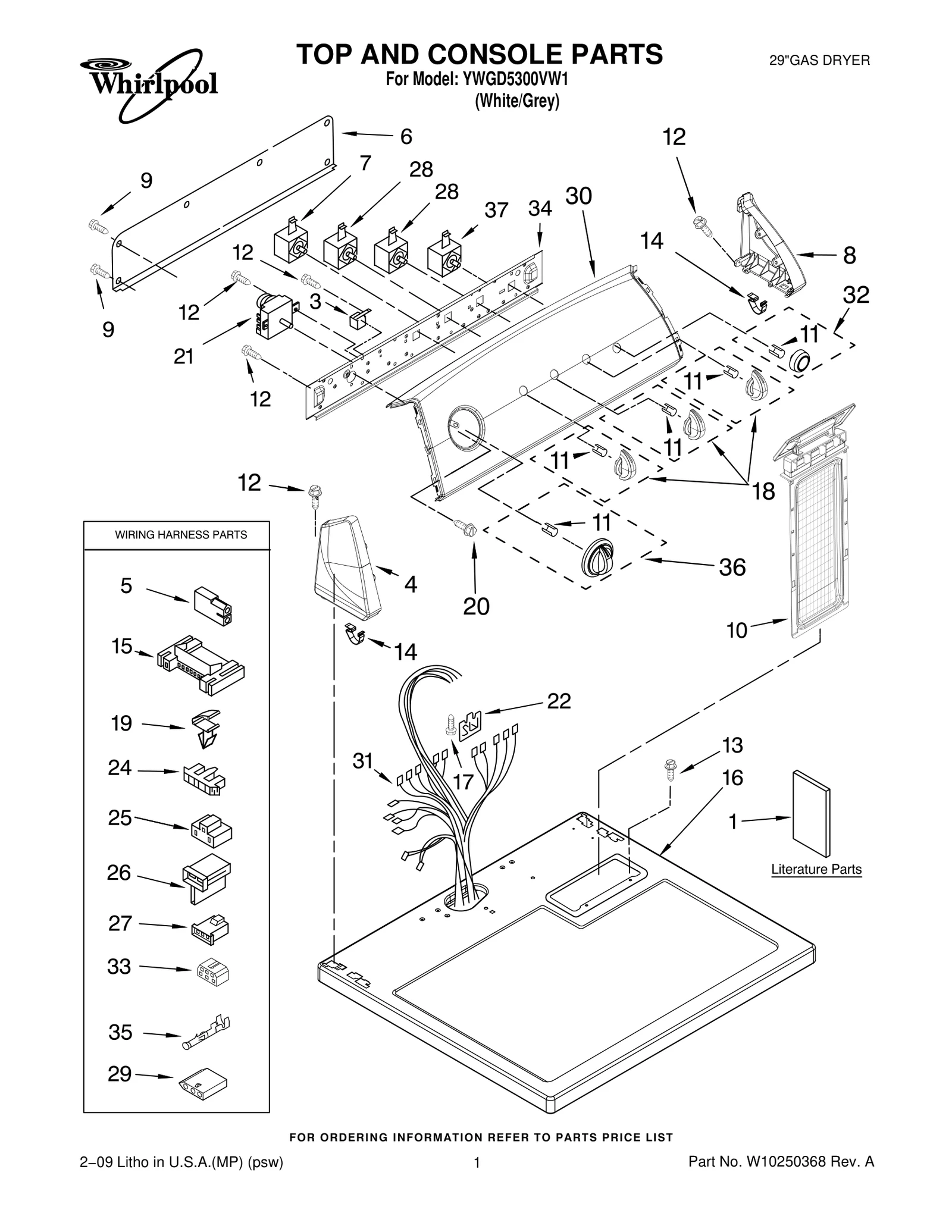

TOP AND CONSOLE PARTS
Parts in TOP AND CONSOLE PARTS
38 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | W10150630 Instructions, | - |
| 1 | – | W10042950 Sheet, | - |
| 1 | – | W10151572 Use & Care Guide | - |
| 1 | – | W10185994 Wiring Diagram | - |
| 3 |  | WP694419replaces 694419 Buzzer, Mini | $71.95 ApplianceParts Pro |
| 4 |  | W11087440replaces 8566035 Cap, End (L.H.) | - |
| 5 | | 717252NLA Plug, 2−Way Terminal | Discontinued |
| 6 |  | W10103406replaces 8274261 Panel, Rear Console | - |
| 7 |  | W11106324replaces 3405155 Switch, Temperature | $88.33 Parts Dr |
| 8 | | W11087440replaces 8566032 Cap, End (R.H.) | - |
| 9 |  | WP693995replaces 693995 Screw, Hex Washer Head | $1.73 Part Advantage |
| 10 |  | W11778253replaces 8557857 Screen, Lint | $32.05 Part Advantage |
| 11 |  | WP8536939replaces 8536939 Clip, Spring | $3.55 Part Advantage |
| 12 |  | WP90767replaces 8533971 Screw, 8−18 x 5/16 | $2.30 Part Advantage |
| 13 |  | W11693756replaces 688983 Screw, 8−18 x 5/8 | $9.83 Parts Dr |
| 14 |  | WP8312709replaces 8312709 Clip−Console | $7.96 Part Advantage |
| 15 |  | Connector | $40.40 ApplianceParts Pro |
| 16 |  | WP8563663replaces 8559800 Top | $101.61 Part Advantage |
| 17 | | W11693756replaces 359625 Screw, 8−18 x 1/2 | $9.83 Parts Dr |

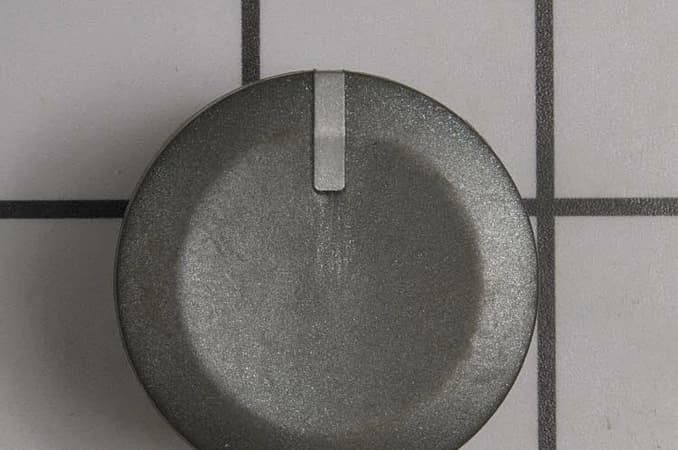

| 18 | | W10034380NLA Knob, Control (3) | Discontinued |
| 19 |  | WP3394427replaces 3394427 Clip−Harness | $3.38 Part Advantage |
| 20 |  | 3400859replaces 8533951 Screw, Grounding | $6.10 RepairClinic |
| 21 |  | WPW10185992replaces W10185992 Timer Assembly | $103.19 Part Advantage |
| 22 |  | WPW10476828replaces 8558178 Control, Electronic | $199.96 ApplianceParts Pro |
| 24 |  | Connector−Timer | - |
| 25 |  | Connector, | - |
| 26 |  | WP3403499replaces 3403499 Connector, 2−Position | $2.35 RepairClinic |
| 27 |  | WP3403498replaces 3403498 Connector, 3−Position | - |
| 28 |  | WP3405156replaces 3405156 Switch Rotary | $69.95 ApplianceParts Pro |
| 29 |  | Connector | - |
| 30 | | W10206010NLA Panel, Control | Discontinued |
| 31 | – | W10186104 Harness, Wiring | - |
| 32 |  | WPW10034790replaces W10034790 Knob, Push−To−Start | - |
| 33 | | 3347243NLA Connector 6−Circuit | Discontinued |
| 34 | | Bracket, Control | - |
| 35 |  | WP94614replaces 94614 Terminal, Female | $4.95 ApplianceParts Pro |
| 36 | | W10034750NLA Timer Knob Assembly | Discontinued |
| 37 |  | WP3398095replaces 3398095 Switch, Push−To−Start | $46.81 Part Advantage |
