Model
Kenmore 106.41122213
Refrigerator (Kenmore 10641122213)
Parts Sections (10)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelKenmore
106.41122213Refrigerator (Kenmore 10641122213)
10 diagrams177 parts
Parts Sections (10)
Diagram

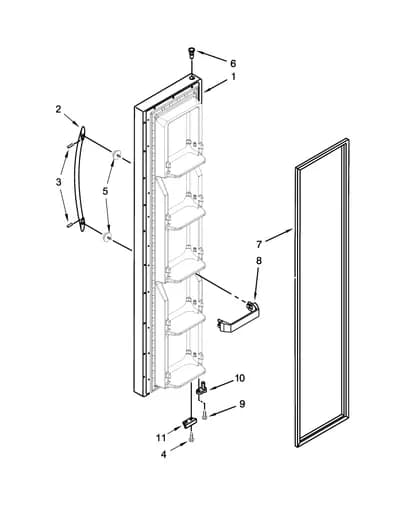

FREEZER DOOR PARTS
Parts in FREEZER DOOR PARTS
11 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 |  | W11049217replaces W10836411 FREEZER DOOR (INCLUDES ITEM #7) (WHITE) | - |
| 2 |  | W11093706replaces W10210937 Refrigerator Door Handle (White) | - |
| 3 |  | W11366418replaces W10010140 Refrigerator Screw | $10.67 Parts Dr |
| 4 |  | WP489483replaces 489420 SCREW | $11.77 PartSelect |
| 5 |  | WPW10661886replaces W10460893 SCREW | $4.13 Part Advantage |
| 6 |  | WP2182181replaces 2182181 Refrigerator Door Hinge Bushing | $3.55 Part Advantage |
| 7 |  | 2159072replaces 2309604 Refrigerator Gasket Panel | $89.31 Part Advantage |
| 8 |  | WP2309717replaces 2309717 Refrigerator Freezer Door Shelf Rail | $40.52 Parts Dr |
| 9 |  | WP3400012replaces 3400012 Refrigerator Door Hinge Screw | $7.47 PartSelect |
| 10 |  | WP2182179replaces 2182178 Refrigerator Door Cam (Black) | $2.96 Amazon |
| 11 |  | Refrigerator Door Stop Bracket, Right | - |
