ModelKenmore
106.41159210Refrigerator (Kenmore 10641159210)
10 diagrams206 parts
Parts Sections (10)
Diagram

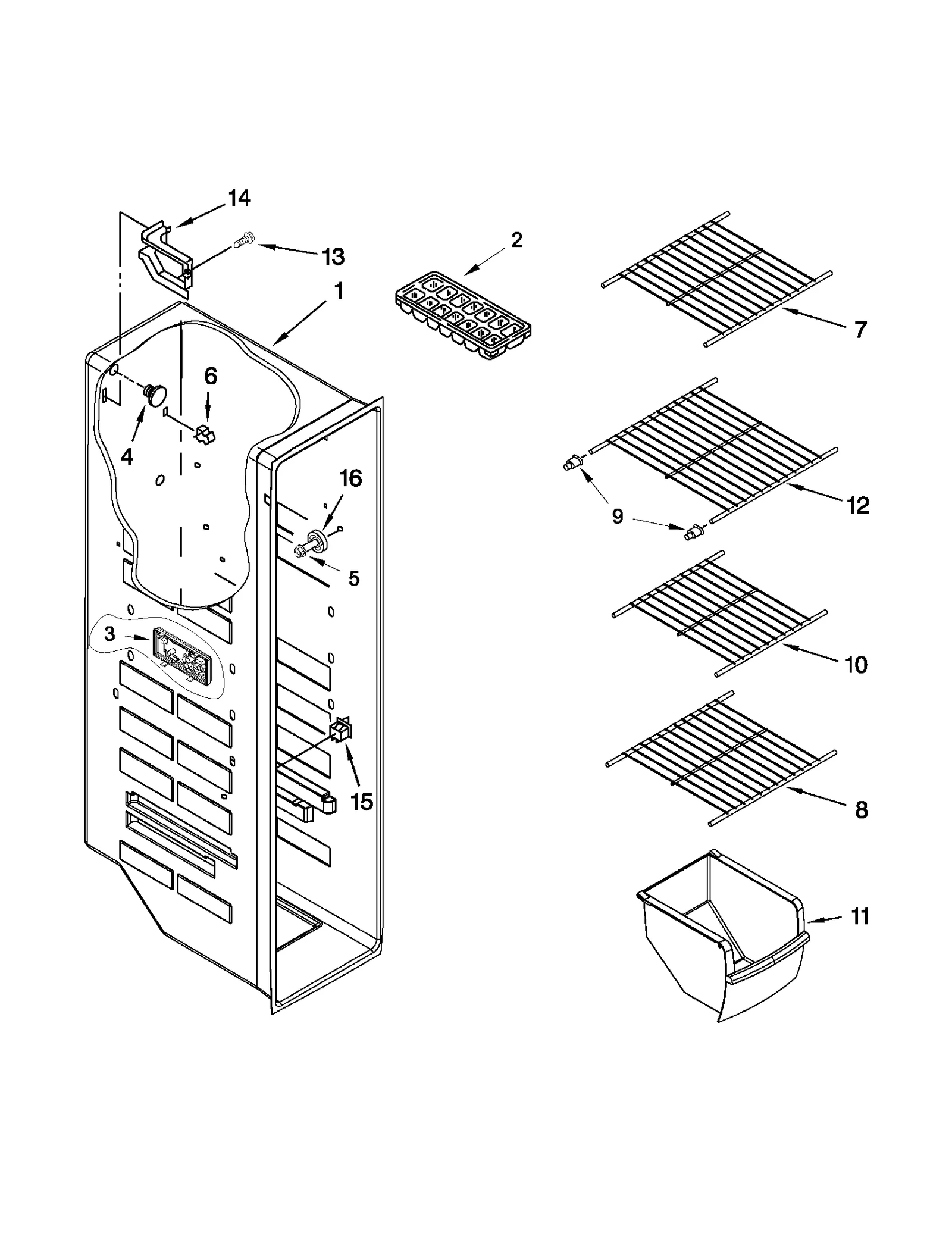

FREEZER LINER PARTS
Parts in FREEZER LINER PARTS
16 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | N/P FOR FIELD INSTALLABLE ICEMAKER REPAIR PARTS LIST, REFER TO MODEL 106.8560 | - |
| 2 |  | WP841180Areplaces 841180 Refrigerator Tray | $6.35 Parts Dr |
| 3 |  | W11104452replaces W10550215 Refrigerator LED Light and Cover Assembly | $39.98 Part Advantage |
| 4 |  | Refrigerator Ice Maker Fill Tube Plug | - |
| 5 |  | WPW10191952replaces W10191952 Refrigerator Screw | - |
| 6 |  | 2215823replaces 2315163 Refrigerator Clip | $11.71 ApplianceParts Pro |
| 7 |  | Refrigerator Glass Shelf | - |
| 8 |  | WPW10318947replaces W10318947 Refrigerator Glass Shelf | $37.58 Part Advantage |
| 9 |  | WPW10130299replaces W10130299 Refrigerator Freezer Shelf Support Cup | $8.69 Part Advantage |
| 10 |  | WPW10318961replaces W10318961 Refrigerator Freezer Wire Shelf | $43.23 Part Advantage |
| 11 |  | W11577967replaces 2309757 Refrigerator Freezer Bin | $58.47 Parts Dr |
| 12 |  | WPW10318948replaces W10318948 Refrigerator Freezer Wire Shelf | $135.64 PartSelect |
| 13 |  | WP489478replaces 489478 Refrigerator Screw | $5.00 RepairClinic |
| 14 | – | 2160912 Refrigerator Wire Cover | - |
| 15 |  | W11384469replaces 1118894 Refrigerator Light Switch | $14.41 Part Advantage |
| 16 |  | W11527119replaces W10173127 Refrigerator Shelf Stud | $5.49 Parts Dr |
