Model
Kenmore 106.44102300
Refrigerator (Kenmore 10644102300)
Parts Sections (11)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelKenmore
106.44102300Refrigerator (Kenmore 10644102300)
11 diagrams294 parts
Parts Sections (11)
Diagram

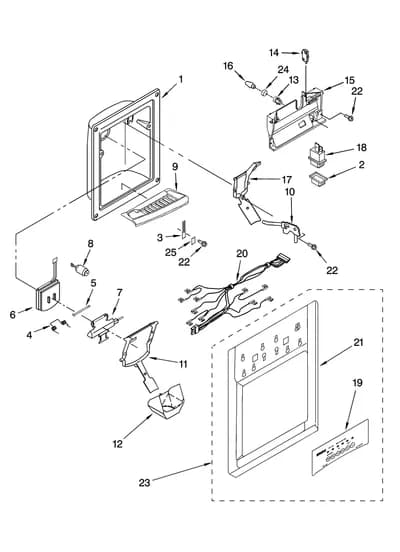

DISPENSER FRONT PARTS
Parts in DISPENSER FRONT PARTS
27 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | N/P FOR FIELD INSTALLABLE ICEMAKER REPAIR PARTS LIST, REFER TO MODEL 106.8560 | - |
| 2 |  | Refrigerator Cover | - |
| 3 |  | WP2194719replaces 2194719 Refrigerator Dispenser Lever Retainer | $3.72 Part Advantage |
| 4 |  | WPW10224328replaces 2180209 Refrigerator Spring | $31.40 Part Advantage |
| 5 |  | WP2196195replaces 2196195 Refrigerator Ice Chute Door Hinge Pin | $8.56 RepairClinic |
| 6 | | Refrigerator Door Chute | - |
| 7 |  | Refrigerator Mechanism | Discontinued |
| 8 | | Refrigerator Mechanism | Discontinued |
| 9 | – | 8206772 Refrigerator Grille | - |
| 9A | | 8206773NLA Refrigerator Grille | Discontinued |
| 10 | | Refrigerator Fitting | - |
| 11 |  | Refrigerator Arm Dispenser (White) | Discontinued |
| 11A | | Refrigerator Arm Dispenser (Black) | Discontinued |
| 12 |  | WP2180224replaces 2180224 Refrigerator Ice Chute | $6.75 Part Advantage |
| 13 | | Refrigerator Light Socket | - |
| 14 |  | WP2162361replaces 2162361 Refrigerator Dispenser Switch | $8.06 Part Advantage |
| 15 | | Refrigerator Bracket | - |
| 16 |  | WP22002263replaces 8206780 Refrigerator Light Bulb | $7.60 Part Advantage |
| 17 |  | WPW10152858replaces 2195090W Refrigerator Arm Dispenser (White) | $40.01 Parts Dr |
| 17A |  | WPW10152859replaces 2195090B Refrigerator Arm Dispenser (Black) | $56.33 PartSelect |
| 18 | – | 8206777 Refrigerator Switch | - |
| 20 | | Refrigerator Wire Harness | - |
| 22 |  | WP3400906replaces 489000 Refrigerator Screw | $7.43 ApplianceParts Pro |
| 23 | | Refrigerator Cover | - |
| 23A | | 8206775NLA Refrigerator Dispenser Control Panel | Discontinued |
| 24 | – | 8206781 Refrigerator Gasket | - |
| 25 |  | WP2195051replaces 2195051 Refrigerator Dispenser Lever Strain Relief Clip | $7.48 ApplianceParts Pro |
