Model
Kenmore 106.44109300
Refrigerator (Kenmore 10644109300)
Parts Sections (11)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelKenmore
106.44109300Refrigerator (Kenmore 10644109300)
11 diagrams294 parts
Parts Sections (11)
Diagram

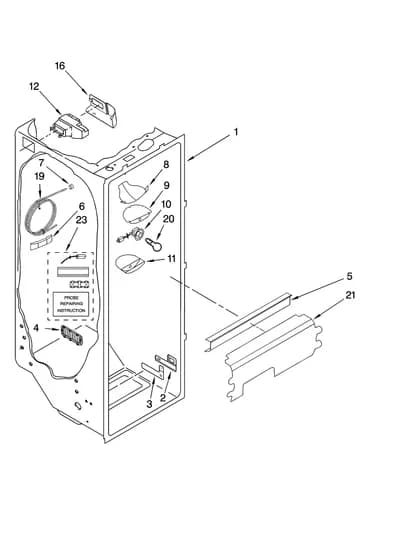

REFRIGERATOR LINER PARTS
Parts in REFRIGERATOR LINER PARTS
17 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | N/P FOR FIELD INSTALLABLE ICEMAKER REPAIR PARTS LIST, REFER TO MODEL 106.8560 | - |
| 2 |  | Refrigerator Escutcheon | - |
| 3 |  | Refrigerator Deli Drawer Temperature Control Slide | - |
| 4 | | 2182147NLA Cabinet Louver | Discontinued |
| 5 | – | 8206757 Refrigerator Trim | - |
| 6 | – | 8206759 Refrigerator Support | - |
| 7 | | 4318011replaces 1129179 Refrigerator Nut | - |
| 8 | – | 8206760 Refrigerator Cover | - |
| 9 | – | 8206761 Refrigerator Light Bracket | - |
| 10 | | Refrigerator Socket Assembly | - |
| 11 | – | 8206763 Refrigerator Housing | - |
| 12 |  | WP2216112replaces 2216112 Refrigerator Air Diffuser | $104.72 Part Advantage |
| 16 | – | 8206758 Refrigerator Cover | - |
| 19 |  | WP2256126replaces 4317969 Refrigerator Reservoir | $60.38 Part Advantage |
| 20 | | 8206749NLA Refrigerator Light Bulb | Discontinued |
| 21 | – | 8206755 Refrigerator Light Lens | - |
| 23 |  | Refrigerator Thermistor | - |
