Model
Kenmore 106.51769511
Refrigerator (Kenmore 10651769511)
Parts Sections (11)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelKenmore
106.51769511Refrigerator (Kenmore 10651769511)
11 diagrams274 parts

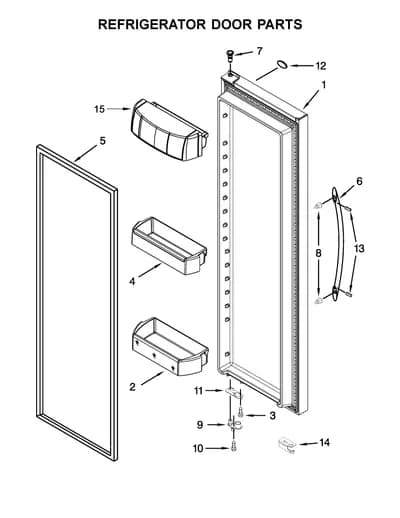

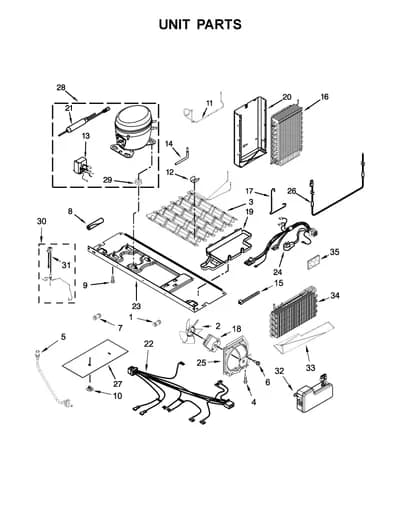

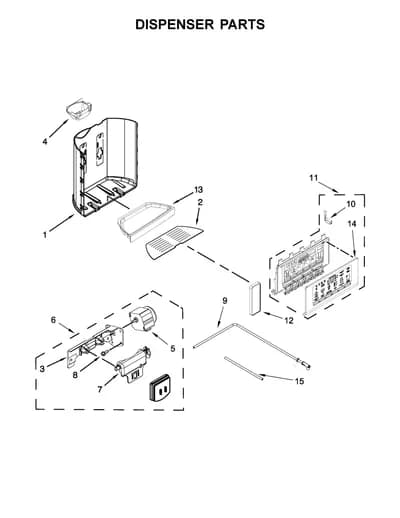

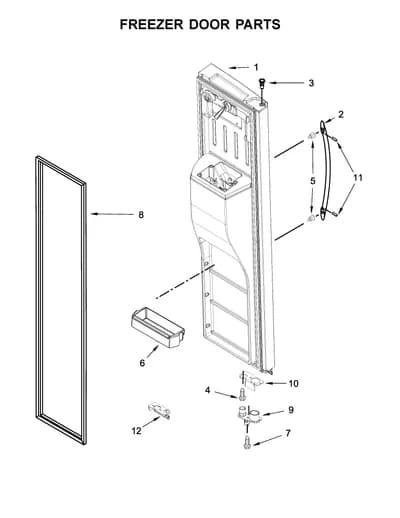

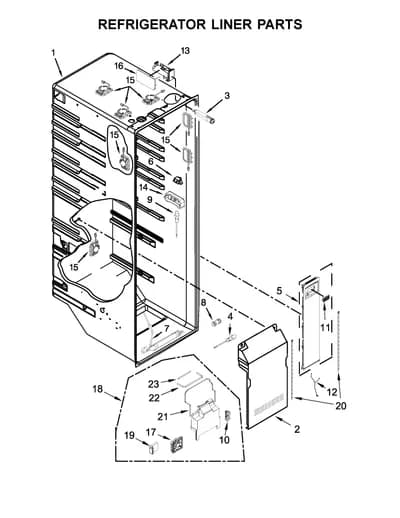

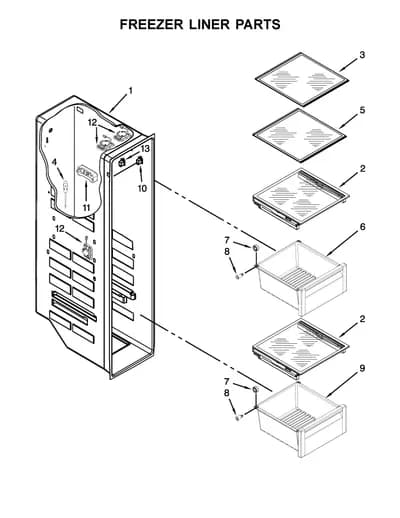

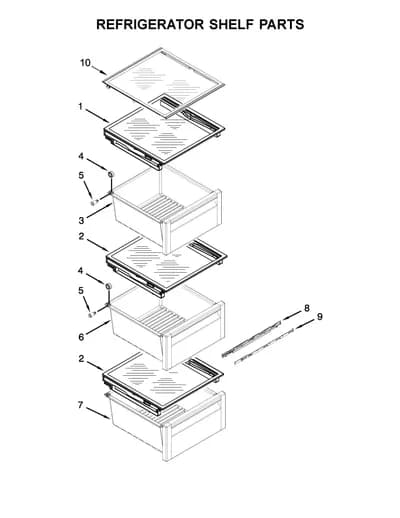

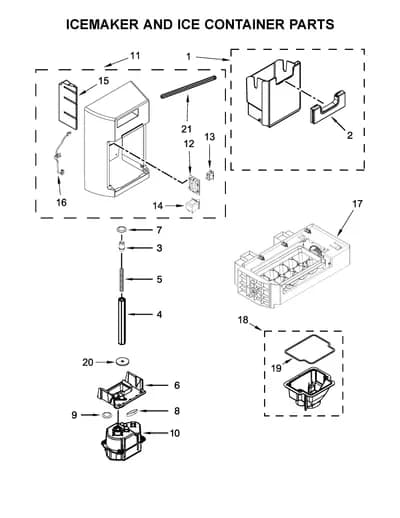

Parts Sections (11)
Diagram

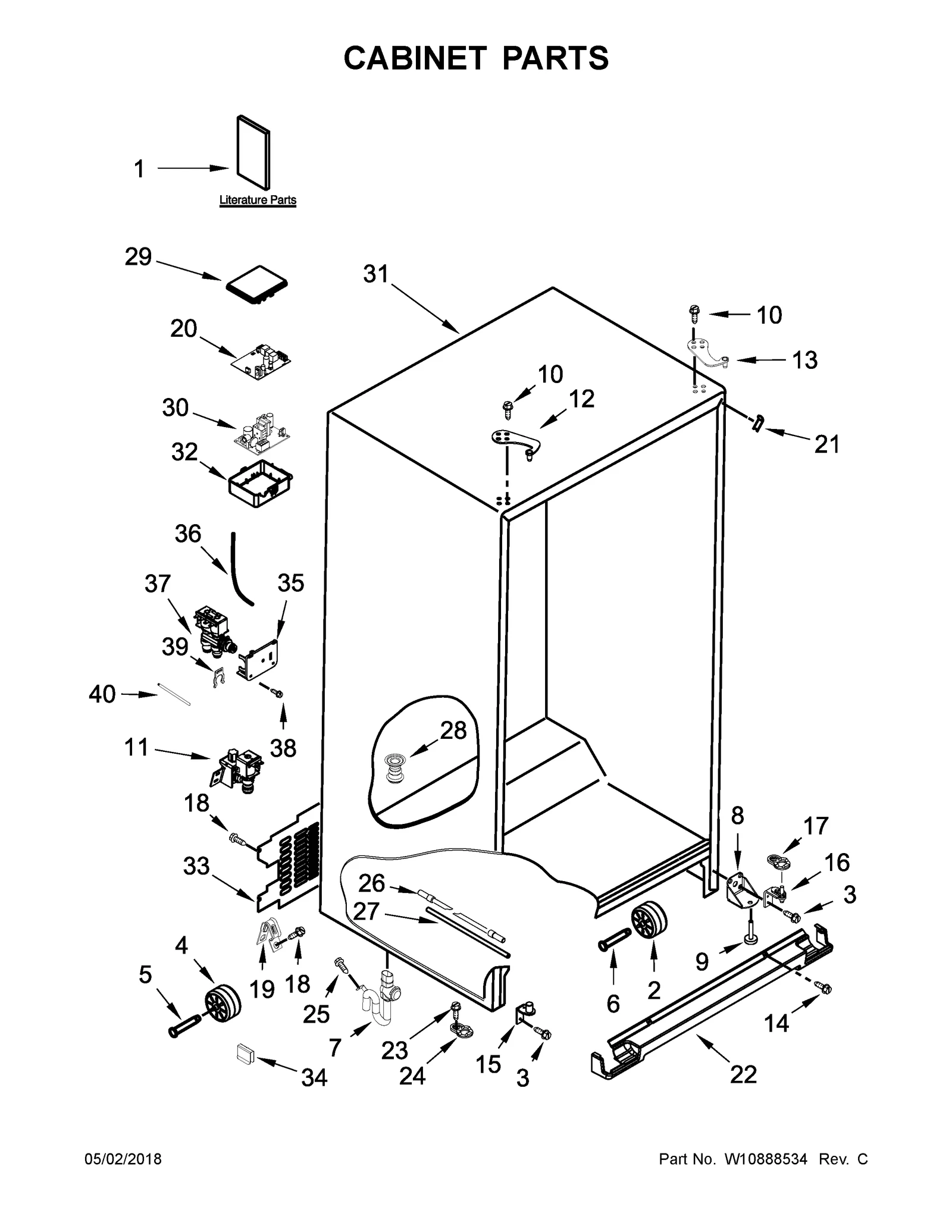

CABINET PARTS
Parts in CABINET PARTS
65 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|

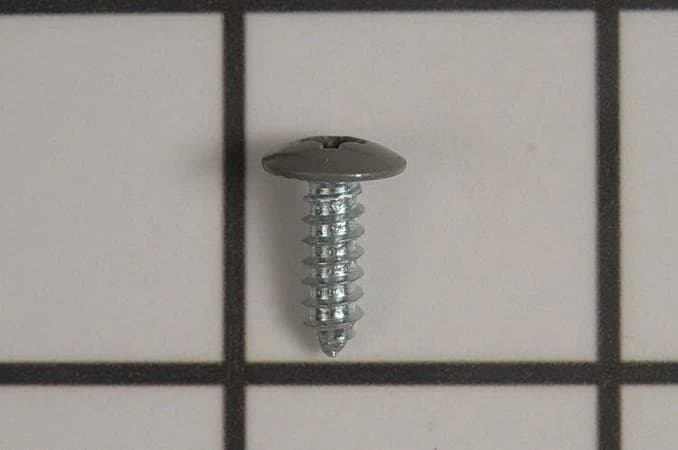

| 1 | – | W10768949 Refrigerator Use and Care Guide | - |
| 1A | – | W10751695 SERVICE & WIRING SHEET | - |
| 1B | – | W11098947 Energy Guide | - |
| 2 |  | WPW10475495replaces 2150304 Cabinet Roller | $10.55 Part Advantage |
| 3 |  | WPW10297485replaces W10297485 Refrigerator Screw | $7.43 ApplianceParts Pro |
| 4 |  | WP67005149replaces 12477102 Refrigerator Roller | $9.85 Part Advantage |
| 5 |  | 67006434replaces 12477202 Axle- Roll | $3.38 Part Advantage |
| 6 |  | W11208384replaces 981125 Refrigerator Roller Wheel Axle | $8.63 Parts Dr |
| 7 |  | W11519143replaces W10369091 Refrigerator Extension | $11.92 Part Advantage |

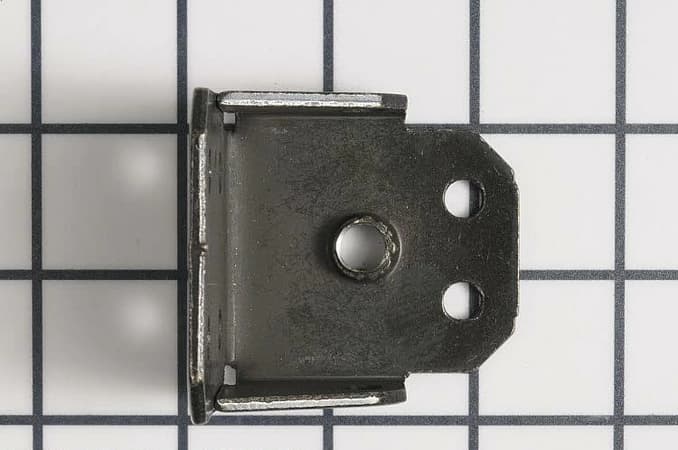

| 8 |  | W11266052replaces W10900758 BRACKET - LE | $28.83 Parts Dr |
| 9 |  | WPW10141622replaces W10141622 Brake Lower Foot | $3.55 Part Advantage |

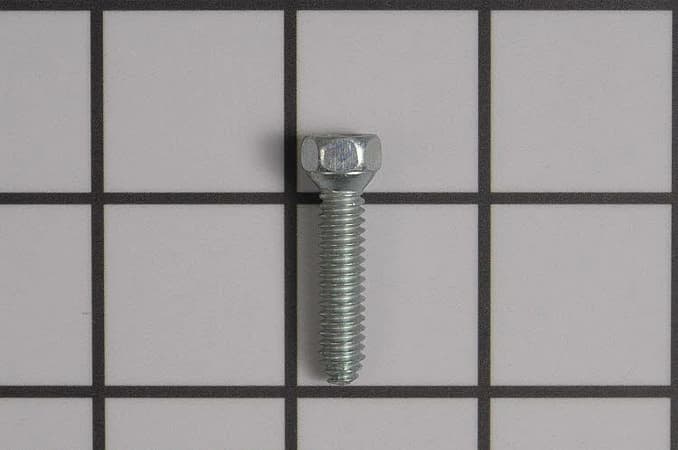

| 10 |  | WPW10308751replaces W10308751 Appliance Screw | $8.55 PartSelect |

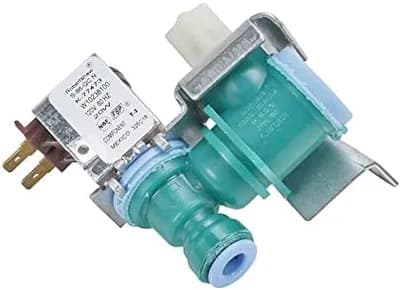

| 11 |  | WPW10238100replaces W10498992 Refrigerator Inlet Valve | $64.39 Part Advantage |

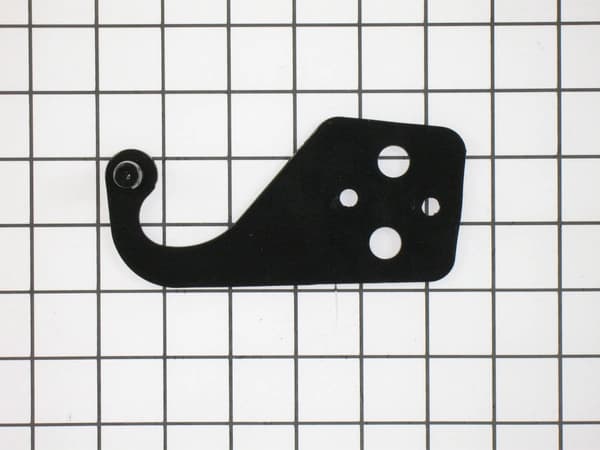

| 12 |  | Refrigerator Freezer Door Hinge, Upper (White) | - |
| 12A |  | HINGE, TOP (FREEZER) (BLACK) | $46.34 PartSelect |
| 12B |  | HINGE, TOP (FC) (BISCUIT) | - |
| 12C |  | W11590581replaces W10901054 Refrigerator Freezer Door Hinge, Top (Gray) | $14.68 ApplianceParts Pro |

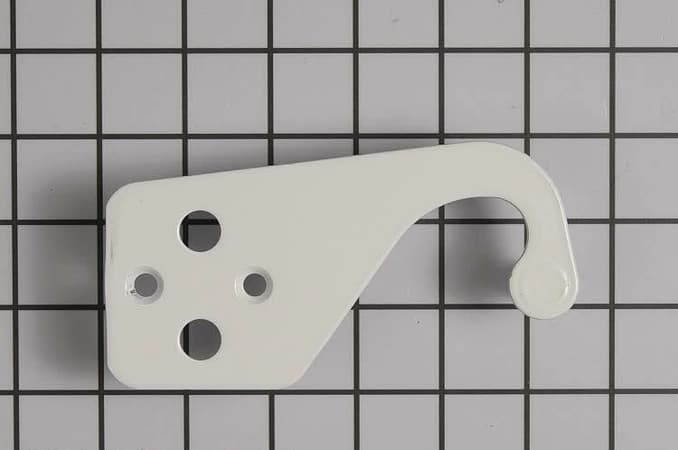

| 13 |  | W11573587replaces W10901046 Refrigerator Door Hinge (White) | $18.02 Parts Dr |
| 13A |  | W11568758replaces W10901047 Refrigerator Freezer Door Hinge, Upper (Black) | $14.68 ApplianceParts Pro |
| 13B | | HINGE, TOP (RC) (BISCUIT) | - |

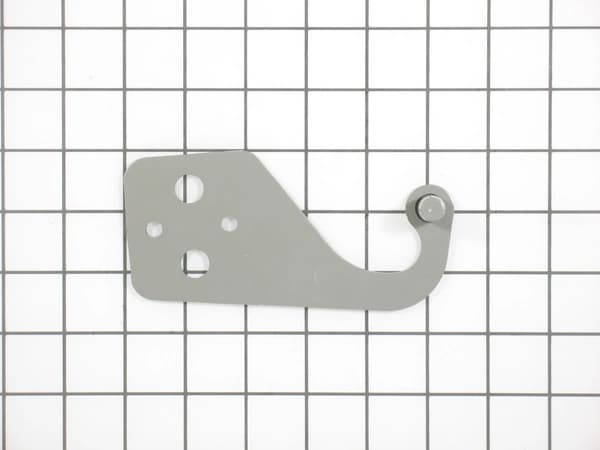

| 13C |  | W11409290replaces W10901049 Refrigerator Door Hinge, Top (Gray) | $28.73 Parts Dr |
| 14 |  | WPW10308489replaces W10308489 Refrigerator Screw | $9.57 ApplianceParts Pro |
| 15 |  | W11293373replaces W11088197 HINGE, BOTTOM (FREEZER) (WHITE) | - |
| 15A | | HINGE, BOTTOM (FREEZER) (BLACK) | - |
| 15B |  | W11126851replaces W11088195 BOTTOM HINGE (FC) (BISCUIT) | - |
| 15C |  | W11293374replaces W11088194 HINGE, BOTTOM (FREEZER) (GREY) | $29.53 Parts Dr |
| 16 |  | W11320488replaces W11084349 ADJUSTMENT HINGE ASSEMBLY | $26.03 Part Advantage |
| 16A |  | W11311416replaces W11084348 ADJUSTMENT HINGE ASSEMBLY | $29.02 Parts Dr |
| 16B | | W11251005replaces W11084347 BOTTOM HINGE (RC) (BISCUIT) | - |
| 16C |  | W11292872replaces W11084346 Refrigerator Door Hinge, Lower (Gray) | $27.04 Part Advantage |
| 17 |  | W11311685replaces W10738913 Refrigerator Closure | $8.41 RepairClinic |
| 17A |  | W11311686replaces W10738914 Refrigerator Door Closure | $4.48 Part Advantage |
| 17B |  | W11311687replaces W10738911 Refrigerator Door Closure | $4.02 Part Advantage |
| 18 | | W10141645NLA Refrigerator Screw | Discontinued |
| 19 |  | Clamp | - |

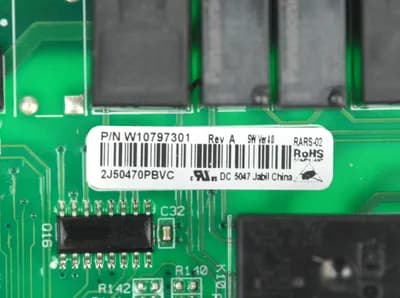

| 20 |  | WPW10226427replaces W10226427 Refrigerator Electronic Control Board | $220.08 Part Advantage |
| 21 |  | Refrigerator Corner Trim | - |
| 21A |  | 67003485replaces 12587703B Corner Cover | - |
| 21B | | Corner Cover | - |
| 21C |  | WP12587703APreplaces 12587703AP Refrigerator Filler | $9.57 ApplianceParts Pro |
| 22 |  | WPW10713160replaces W10713160 Refrigerator Toe Grille | $52.33 Parts Dr |
| 22A |  | WPW10713158replaces W10713158 Refrigerator Toe Grille (Black) | $62.80 RepairClinic |
| 22B | | Refrigerator Toe Grille | - |
| 22C |  | WPW10713153replaces W10713153 Refrigerator Toe Grille | $51.98 Part Advantage |
| 23 |  | WP489483replaces W10142234 Refrigerator Screw | $11.77 PartSelect |
| 24 |  | W10876198replaces W10770896 Cam Closer | $4.65 Part Advantage |
| 24A |  | Cam Closer | $10.45 RepairClinic |
| 24B |  | W10876191replaces W10770893 Refrigerator Cam Closure | $11.79 Parts Dr |
| 25 |  | WP489464replaces W10001250 Refrigerator Screw | $9.62 PartSelect |

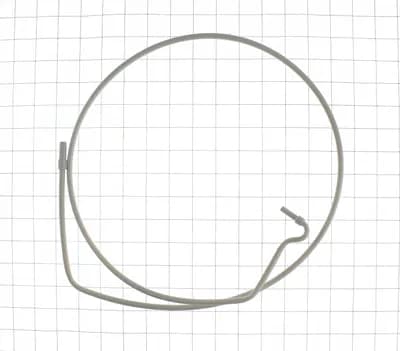

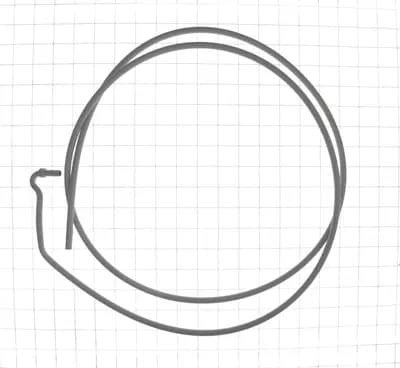

| 26 |  | WPW10279882replaces W10279882 Refrigerator Water Tubing | $27.43 Part Advantage |
| 27 |  | WPW10279885replaces W10279885 Refrigerator Water Tubing | $42.98 Part Advantage |

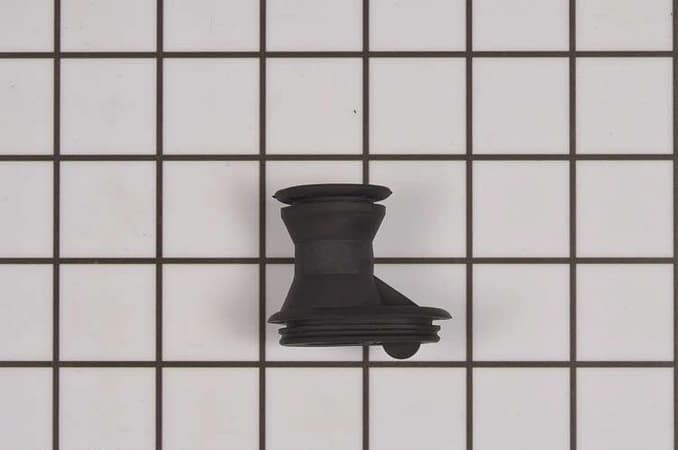

| 28 |  | Refrigerator Fitting | - |
| 29 | | W11226688replaces 12957702 Refrigerator Wire Cover | - |
| 30 |  | W11172798replaces W10797301 Refrigerator Electronic Control | $207.05 PartSelect |
| 31 | – | N/P FOR FIELD INSTALLABLE ICEMAKER REPAIR PARTS LIST, REFER TO MODEL 106.8560 | - |
| 32 |  | WPW10247993replaces W10247993 Refrigerator Control Box | $45.53 Part Advantage |

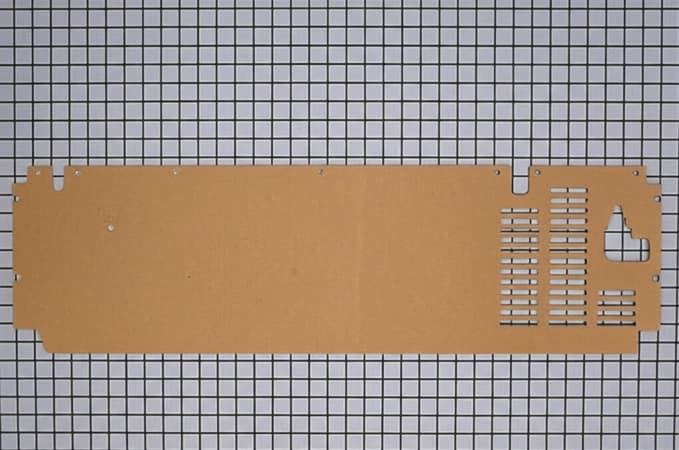

| 33 |  | Cover Unit | $59.70 Parts Dr |
| 34 |  | W11545866replaces 2223388 Refrigerator Clip | $5.78 Parts Dr |
| 35 |  | W10847867replaces W10237915 Refrigerator Bracket | $53.20 PartSelect |
| 36 |  | WPW10238092replaces W10238092 Refrigerator Water Tubing | $49.43 Part Advantage |

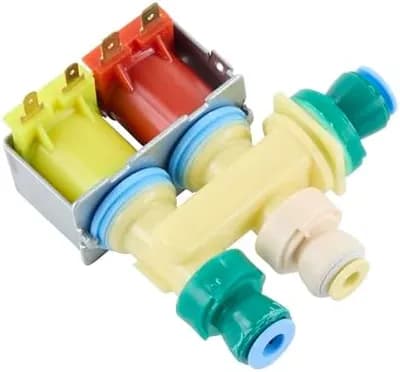

| 37 |  | WPW10341320replaces W10341320 Refrigerator Water Inlet Valve | $104.06 Part Advantage |
| 38 |  | WPW10141625replaces W10141625 Refrigerator Screw | $21.34 ApplianceParts Pro |

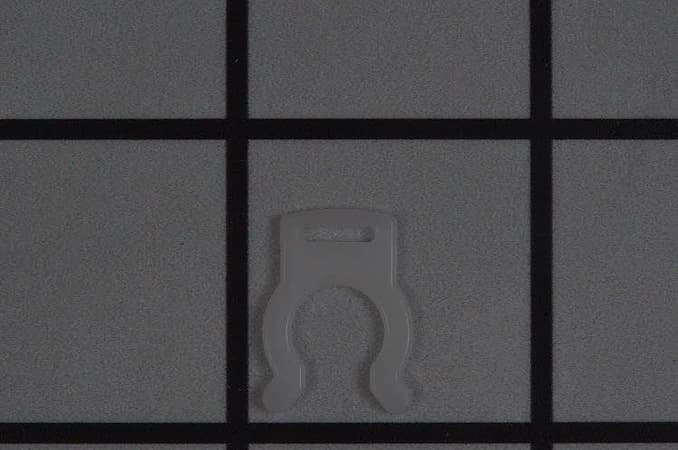

| 39 |  | W11676611replaces W11175632 Refrigerator Retainer Clip, 1/4-in | $13.95 ApplianceParts Pro |
| 39A | | W11678575replaces W11175631 LOCKING RING (5/16) | $7.42 Part Advantage |
| 40 | | W10811572NLA INSULATING TUBE | Discontinued |
