Model
Kenmore 106.51789413
Refrigerator (Kenmore 10651789413)
Parts Sections (11)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelKenmore
106.51789413Refrigerator (Kenmore 10651789413)
11 diagrams207 parts
Parts Sections (11)
Diagram
AIR FLOW PARTS
Parts in AIR FLOW PARTS
17 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 |  | Refrigerator Evaporator Fan Motor Bracket | $13.34 Parts Dr |
| 2 |  | W11671527replaces W10260421 Refrigerator Retainer | $21.95 ApplianceParts Pro |
| 3 | | Ikea Refrigerator Air Duct, Upper | $30.95 RepairClinic |
| 4 |  | WPW10225581replaces W10260437 Refrigerator Defrost Bi-Metal | $17.85 Part Advantage |
| 5 |  | Refrigerator Air Duct | $36.43 RepairClinic |
| 6 |  | WP489478replaces W10001260 Refrigerator Screw | $5.00 RepairClinic |
| 7 |  | WP2315549replaces 2315549 Refrigerator Evaporator Fan Motor | $137.34 Part Advantage |
| 8 |  | WP2169142replaces 2169142 Refrigerator Evaporator Fan Blade | $12.49 Part Advantage |

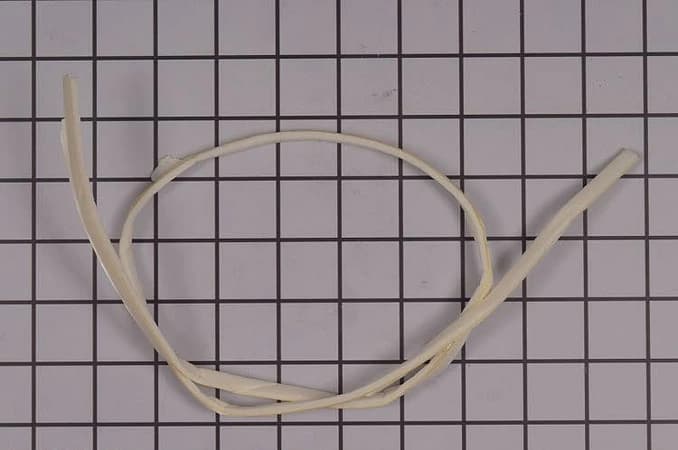

| 9 |  | Refrigerator Evaporator Cover Gasket | $17.41 ApplianceParts Pro |
| 10 |  | WP2176759replaces 2176759 Refrigerator Grommet | $3.38 Part Advantage |
| 11 | | Refrigerator Clip | $10.70 PartSelect |
| 12 |  | W11551372replaces W10242409 Refrigerator Wire Harness | $34.33 Parts Dr |
| 13 |  | WP693995replaces W10142292 Refrigerator Screw | $1.73 Part Advantage |
| 14 | | WPW10388268replaces W10388268 Refrigerator Evaporator Cover | $69.13 RepairClinic |

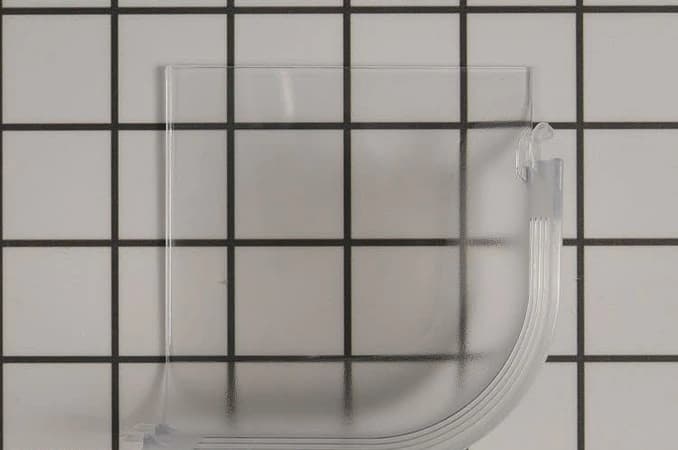

| 15 |  | Refrigerator Freezer Light Cover | - |
| 16 |  | W11216993replaces W10820003 LED - LAMP 1 | $22.68 Part Advantage |
| 17 |  | 4387478replaces 2162085 Light Socket | $31.36 Part Advantage |
