Model
Kenmore 106.53582300
Refrigerator (Kenmore 10653582300)
Parts Sections (11)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelKenmore
106.53582300Refrigerator (Kenmore 10653582300)
11 diagrams328 parts
Parts Sections (11)
Diagram

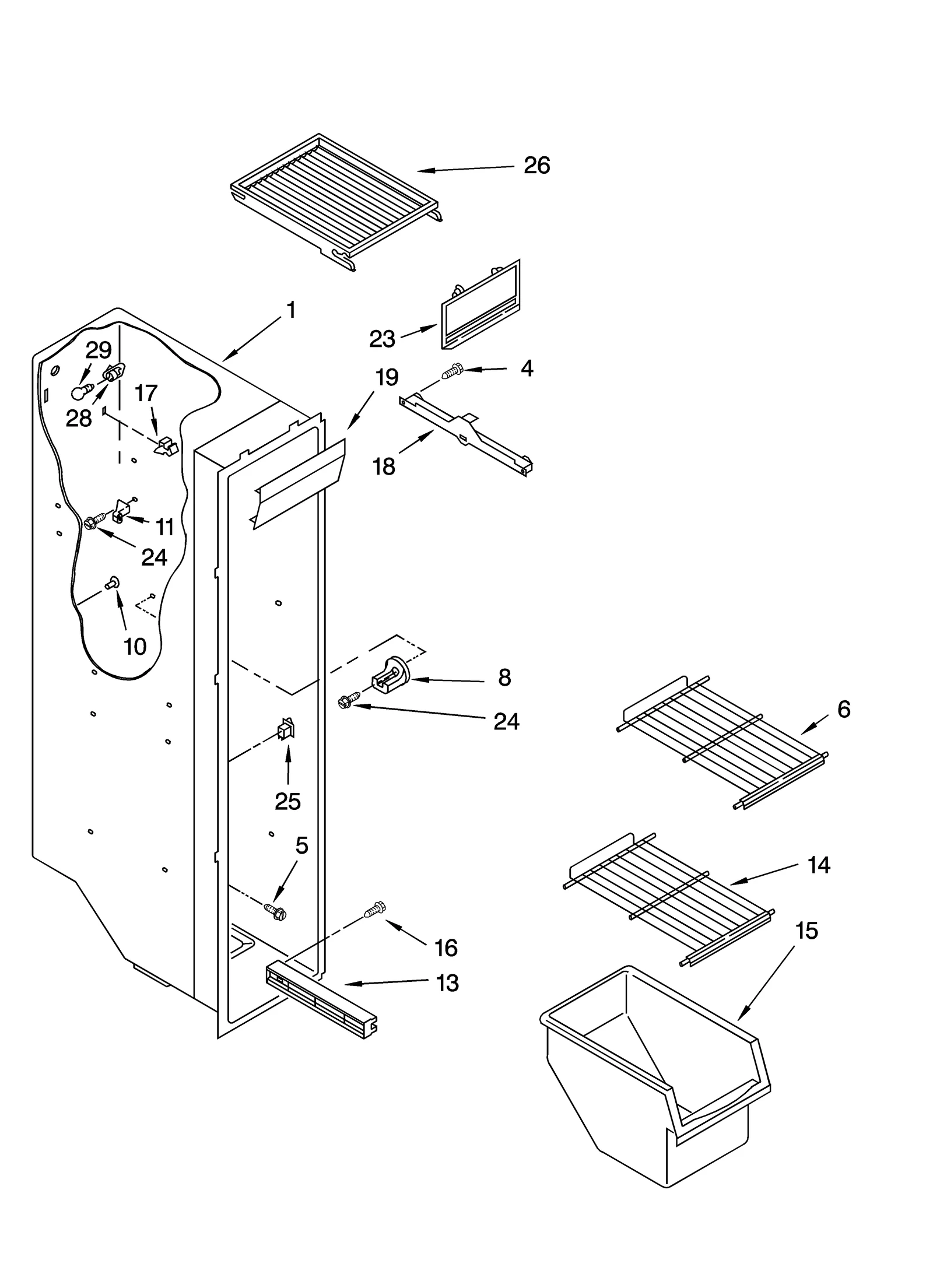

FREEZER LINER PARTS
Parts in FREEZER LINER PARTS
22 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | N/P FOR FIELD INSTALLABLE ICEMAKER REPAIR PARTS LIST, REFER TO MODEL 106.8560 | - |
| 4 |  | 718257replaces 489100 Refrigerator Screw | - |
| 5 |  | WP489478replaces 489478 Refrigerator Screw | $5.00 RepairClinic |
| 6 |  | WP2174267replaces 2174267 Refrigerator Glass Shelf | $67.82 PartSelect |
| 8 |  | 2196207NLA Refrigerator Shelf Stud | Discontinued |
| 10 | | Refrigerator Freezer Shelf Support Grommet | - |
| 11 |  | Refrigerator Shelf Stud | Discontinued |
| 13 | | 2181760NLA Refrigerator Track | Discontinued |
| 13A | | 2181759NLA Refrigerator Track | Discontinued |
| 14 | | 2174268NLA Refrigerator Wire Shelf | Discontinued |
| 15 |  | WP2182971replaces 2182971 Refrigerator Freezer Bin | $91.22 PartSelect |
| 16 |  | W10759522replaces 486298 SCREW | $3.72 Parts Dr |
| 17 |  | 2215823replaces 842534 Refrigerator Air Duct Clip | $11.71 ApplianceParts Pro |
| 18 |  | W10845583replaces 1119293 Refrigerator Ice Container Slide Rail | $66.78 ApplianceParts Pro |
| 18A |  | W10845585replaces 1119237 Refrigerator Slide | $73.95 ApplianceParts Pro |
| 19 |  | 2171705NLA Refrigerator Light Lens | Discontinued |
| 23 | – | 2204285 Refrigerator Ice Door | - |
| 24 | | WP3400893replaces 3400893 Refrigerator Shelf Stud Screw | - |
| 25 |  | W11457217replaces 1115373 Refrigerator Freeer Door Switch | $14.41 Part Advantage |
| 26 | | Refrigerator Shelf | Discontinued |
| 28 |  | 4387478replaces 2162085 Light Socket | $31.36 Part Advantage |
| 29 |  | 8009replaces 527949 Light Bulb | $7.53 Part Advantage |
