Model
Kenmore 106.53592300
Refrigerator (Kenmore 10653592300)
Parts Sections (11)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelKenmore
106.53592300Refrigerator (Kenmore 10653592300)
11 diagrams328 parts
Parts Sections (11)
Diagram

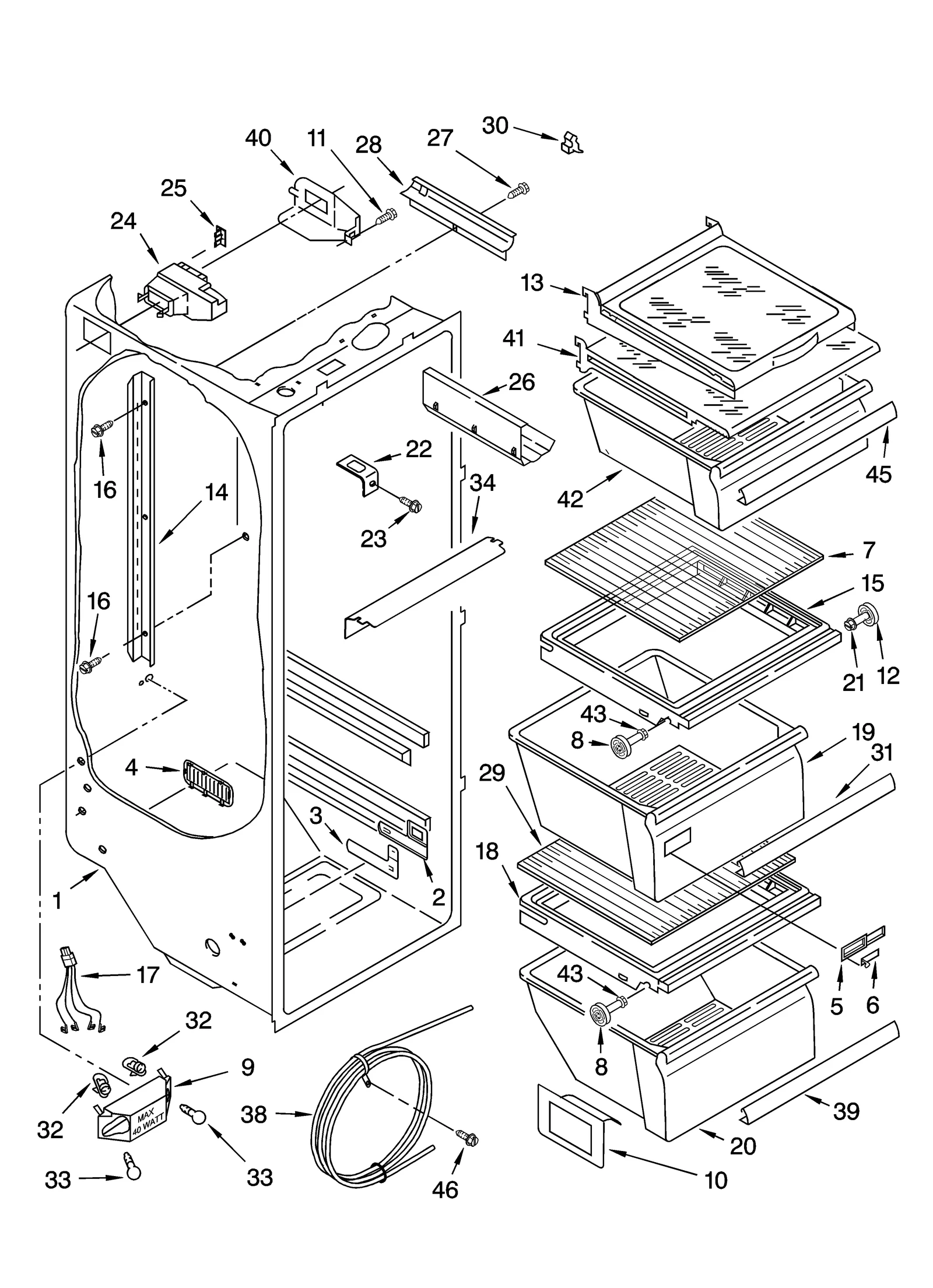

REFRIGERATOR LINER PARTS
Parts in REFRIGERATOR LINER PARTS
40 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | N/P FOR FIELD INSTALLABLE ICEMAKER REPAIR PARTS LIST, REFER TO MODEL 106.8560 | - |
| 2 |  | Refrigerator Deli Drawer Temperature Control Slide | - |
| 3 |  | Refrigerator Deli Drawer Temperature Control Slide | - |
| 4 |  | 2182147NLA Cabinet Louver | Discontinued |
| 5 |  | WP2179343replaces 2179343 Refrigerator Crisper Drawer Humidity Controller | $23.33 RepairClinic |
| 6 |  | WP2179342replaces 2179342 Refrigerator Crisper Drawer Humidity Control | $15.82 Parts Dr |
| 7 |  | W10864399replaces 2216108 Refrigerator Glass Shelf | $84.04 Part Advantage |
| 8 |  | W11223328replaces 2196485 Refrigerator Crisper Support Post | $10.70 Parts Dr |
| 9 | | Refrigerator Crisper Drawer Light Socket Bracket | - |
| 10 |  | Refrigerator Deli Drawer Air Deflector | $47.40 PartSelect |
| 11 |  | W10759522replaces 486298 SCREW | $3.72 Parts Dr |
| 12 |  | WP2196483replaces 2196483 Refrigerator Shelf Support | $10.70 PartSelect |
| 13 | – | 2204386 Refrigerator Cantilever Shelf | - |
| 14 | | WP2319866replaces 2206273 Refrigerator Ladder | - |
| 15 |  | W10508993replaces 2209698 Refrigerator Cover | $112.87 Part Advantage |
| 16 |  | WP488729replaces 487539 Screw | $2.41 Part Advantage |
| 17 |  | 2311637replaces 2256037 Refrigerator Wire Harness | - |
| 18 | | W10508993replaces 2217039 Refrigerator Cover | $112.87 Part Advantage |
| 19 |  | WP2188656replaces 2196160 Refrigerator Crisper Pan | $54.25 Part Advantage |
| 20 |  | WP2188664replaces 2196162 Refrigerator Meat Pan | $37.49 Part Advantage |
| 21 |  | WP3400806replaces 8281158 Refrigerator Screw | $2.30 Part Advantage |
| 22 | | WP2256085replaces 1123919 Refrigerator Retainer | $9.17 RepairClinic |
| 23 |  | WP488488replaces 489290 Refrigerator Screw | $5.00 RepairClinic |
| 24 |  | WPW10151374replaces 2209753 Refrigerator Diffuser | $34.02 Part Advantage |
| 25 |  | Refrigerator Air Damper Cover | - |
| 26 |  | W10777924replaces 2179404 Refrigerator Beverage Shelf | $10.25 Parts Dr |
| 28 |  | Refrigerator Wire Harness Cover | - |
| 29 | | W10864399replaces 2179259 Refrigerator Glass Shelf | $84.04 Part Advantage |
| 30 |  | 2215823replaces 842534 Refrigerator Air Duct Clip | $11.71 ApplianceParts Pro |
| 31 |  | WP2179234replaces 2194976 Refrigerator Pan Trim | $46.95 ApplianceParts Pro |
| 32 |  | 4387478replaces 2162085 Light Socket | $31.36 Part Advantage |
| 33 |  | 8009replaces 527949 Light Bulb | $7.53 Part Advantage |
| 34 | | Refrigerator Light Lens | Discontinued |
| 38 |  | WP2256126replaces 2217199 Refrigerator Reservoir | $60.38 Part Advantage |
| 39 | | WP2179234replaces 2194649 Refrigerator Pan Trim | $46.95 ApplianceParts Pro |
| 41 | | 2206370NLA Refrigerator Cantilever Shelf | Discontinued |
| 42 |  | W11497323replaces 2196163 Refrigerator Snack Pan | $118.65 Parts Dr |
| 43 |  | WP3-24004-109replaces 3400894 Refrigerator Shelf Stud Screw | $3.69 Parts Dr |
| 45 |  | WP2179243replaces 2179243 Refrigerator Crisper Cover Trim | $55.95 ApplianceParts Pro |
| 46 | | Screw | - |
