Model
Kenmore 106.54512300
Side-By-Side Refrigerator (Kenmore 10654512300)
Parts Sections (11)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelKenmore
106.54512300Side-By-Side Refrigerator (Kenmore 10654512300)
11 diagrams309 parts

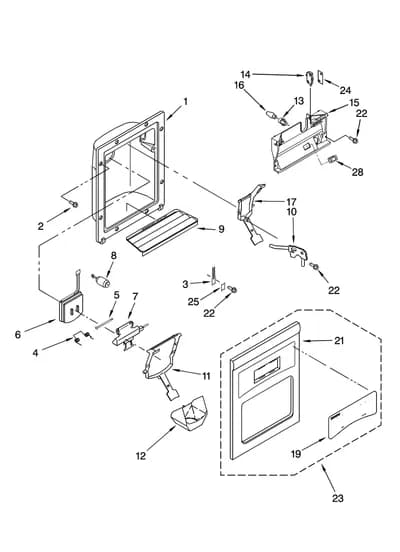

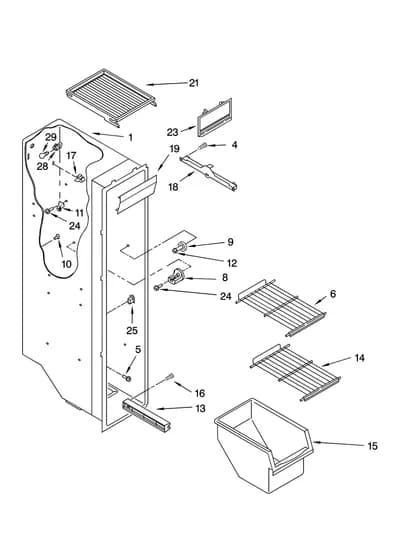

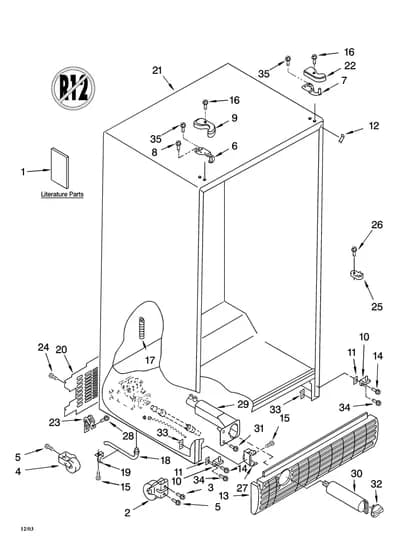

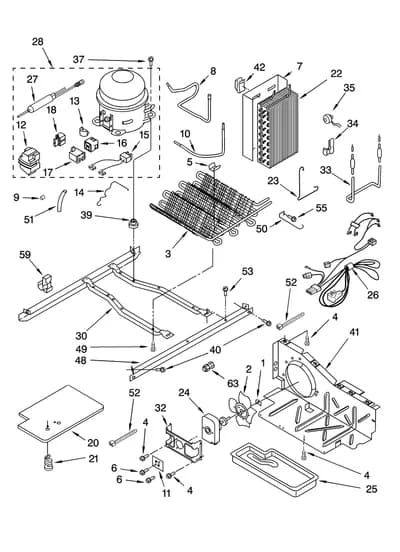

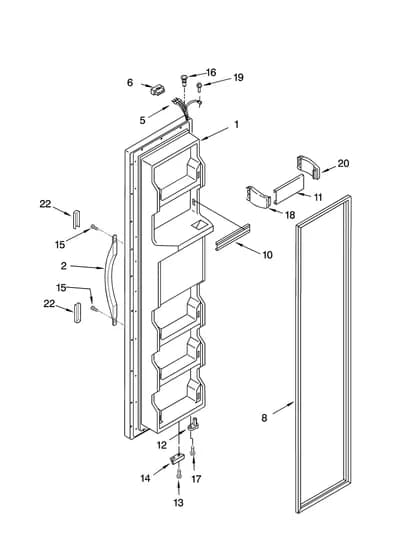

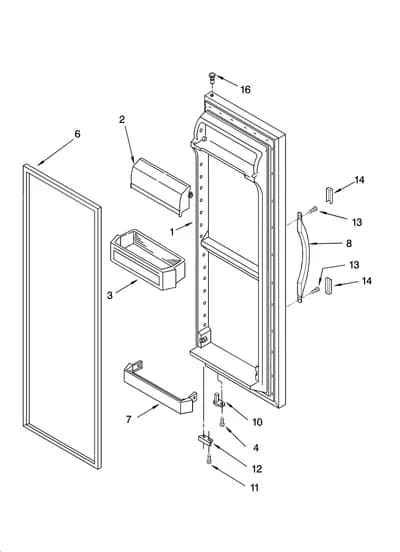

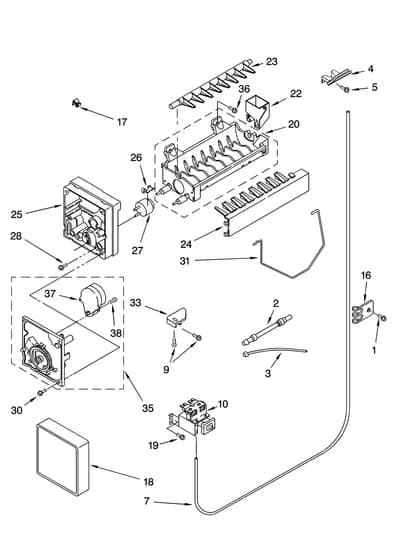

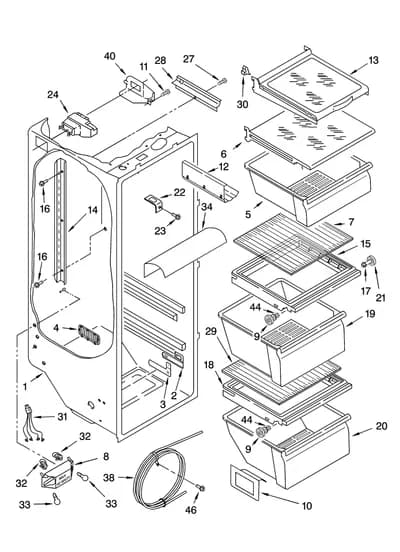

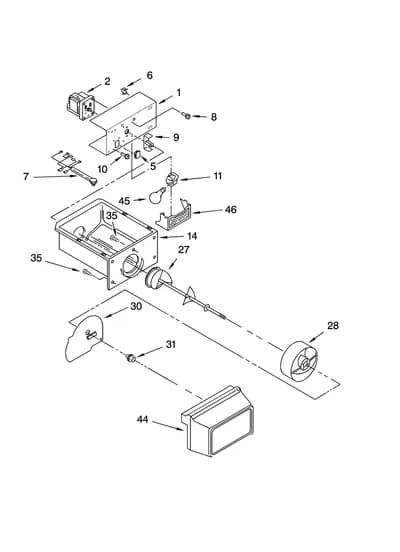

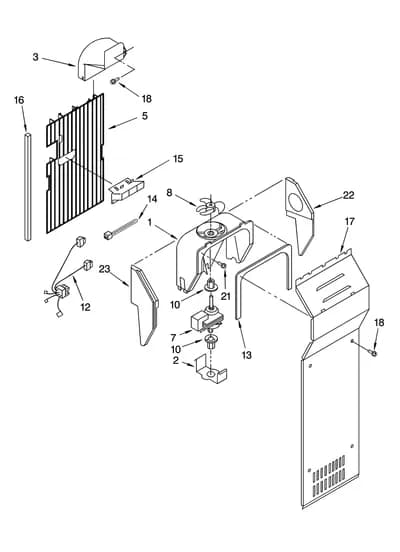

Parts Sections (11)
Diagram

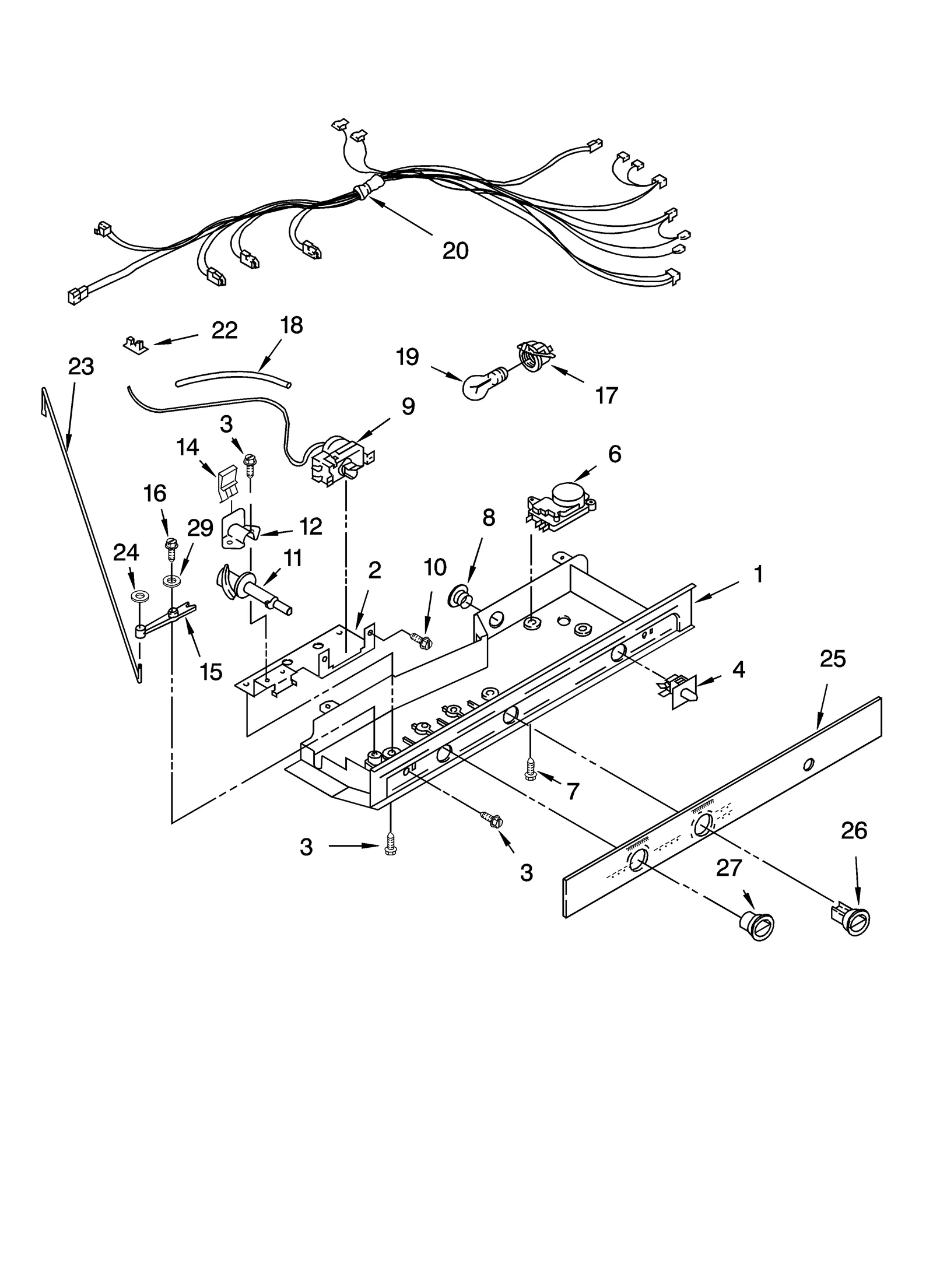

CONTROL PARTS
Parts in CONTROL PARTS
25 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 |  | Refrigerator Control Box | - |
| 2 | | Refrigerator Thermistor Bracket | - |
| 3 |  | WP3196557replaces 3196537 Refrigerator Screw | $2.30 Part Advantage |
| 4 |  | WP2149705replaces 2149705 Refrigerator Door Switch | $20.44 Part Advantage |
| 6 |  | W10822278replaces 2188375 Refrigerator Defrost Timer | $17.76 Part Advantage |
| 7 |  | 489392replaces 489398 Refrigerator Screw | - |
| 8 | | Refrigerator Control Panel Hole Plug | - |

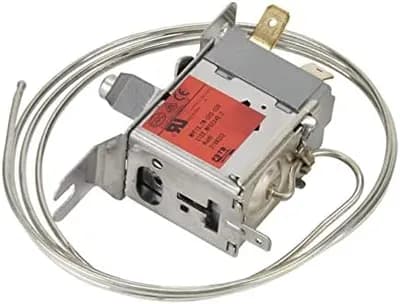

| 9 |  | WP2198202replaces 2198202 Refrigerator Thermostat | $47.24 Part Advantage |
| 10 |  | WP965173replaces 487869 Screw | $6.77 ApplianceParts Pro |
| 11 |  | WP2182195replaces 2182195 Refrigerator Air Control Cam Body | - |
| 12 |  | Refrigerator Air Damper Control Clip | $6.15 Parts Dr |
| 14 |  | WP2196062replaces 2196062 Refrigerator Damper Control Clip | $7.60 ApplianceParts Pro |
| 15 | | 1110559NLA Refrigerator Damper Control Pivot Arm | Discontinued |
| 16 |  | Refrigerator Screw | - |
| 17 |  | 4387478replaces 2162085 Light Socket | $31.36 Part Advantage |
| 18 |  | WP2196003replaces 2196001 Refrigerator Barrier | $5.95 ApplianceParts Pro |
| 19 |  | 8009replaces 527949 Light Bulb | $7.53 Part Advantage |
| 20 |  | 2311636replaces 2206512 Refrigerator Wire Harness | - |
| 22 | | Refrigerator Retainer Clip | - |
| 23 | | Refrigerator Damper Control Rod | - |
| 24 | | Refrigerator Air Damper Control Clip | - |
| 25 | – | 2203839 Refrigerator Escutcheon | - |
| 26 |  | Refrigerator Temperature Control Knob | - |
| 27 | | 2197871NLA Refrigerator Temperature Control Knob | Discontinued |
| 29 | | Washer | - |
