Model
Kenmore 106.55502400
Side-By-Side Refrigerator (Kenmore 10655502400)
Parts Sections (11)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelKenmore
106.55502400Side-By-Side Refrigerator (Kenmore 10655502400)
11 diagrams339 parts
Parts Sections (11)
Diagram

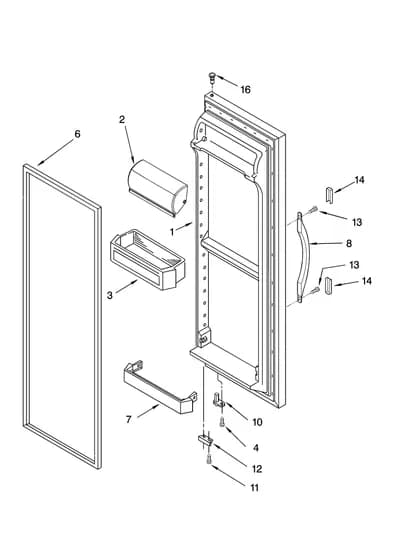

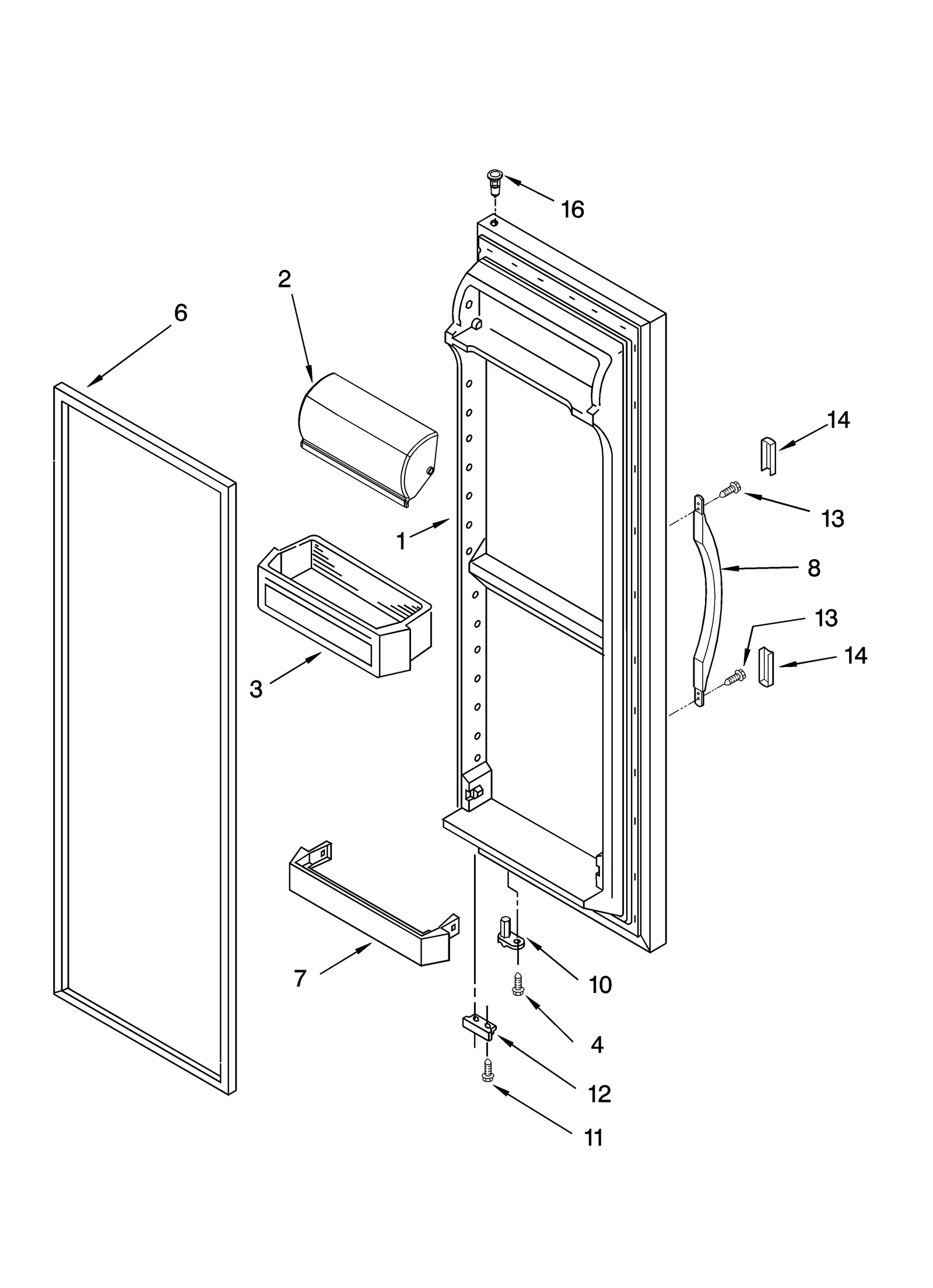

REFRIGERATOR DOOR PARTS
Parts in REFRIGERATOR DOOR PARTS
21 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | 2206825W Refrigerator Door Assembly (White) | - |
| 1A | – | 2206825T Refrigerator Door Assembly (Biscuit) | - |
| 1B | – | 2206825B Refrigerator Door Assembly (Black) | - |
| 2 |  | WP2256101replaces 2256101 Refrigerator Door Shelf Compartment Cover | $39.75 Part Advantage |
| 3 |  | WP2187172replaces 2187172 Refrigerator Door Bin | $21.98 Part Advantage |
| 4 |  | WP3400012replaces 3400012 Refrigerator Door Hinge Screw | $7.47 PartSelect |
| 6 |  | 2159075replaces 2221302 Refrigerator Gasket Panel (White) | $116.86 Part Advantage |
| 6A |  | 2159083replaces 2221313 Refrigerator Gasket Panel (Black) | $102.38 Part Advantage |
| 7 |  | WP2177962Kreplaces 2177962 Refrigerator Door Trim | $50.56 PartSelect |
| 8 |  | 2207206WNLA Refrigerator Door Handle Assembly | Discontinued |
| 8A | | 2207206TNLA Refrigerator Handle (Off-White) | Discontinued |
| 8B |  | Refrigerator Handle (Black) | Discontinued |
| 10 |  | WP2182179replaces 2182178 Refrigerator Door Cam (Black) | $2.96 Amazon |
| 11 |  | WP489483replaces 489420 SCREW | $11.77 PartSelect |
| 12 |  | WP2206629Breplaces 2206629 Refrigerator Door Stop Bracket | $14.98 Parts Dr |
| 12A | | WP2206629Breplaces 2206629B Refrigerator Bracket (Black) | $14.98 Parts Dr |
| 13 |  | WP489491replaces 489491 Refrigerator Screw | $3.66 Parts Dr |
| 14 | | 2194272WNLA Refrigerator Door Handle Trim Cap | Discontinued |
| 14A | | Refrigerator Door Handle End Cap | - |
| 14B |  | WP2194272Breplaces 2194272B Refrigerator End Cap Handle (Black) | $9.27 Parts Dr |
| 16 |  | WP2182181replaces 2182180 Refrigerator Thimble | $3.55 Part Advantage |
