Model
Kenmore 106.55622500
Side-By-Side Refrigerator (Kenmore 10655622500)
Parts Sections (11)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelKenmore
106.55622500Side-By-Side Refrigerator (Kenmore 10655622500)
11 diagrams308 parts
Parts Sections (11)
Diagram

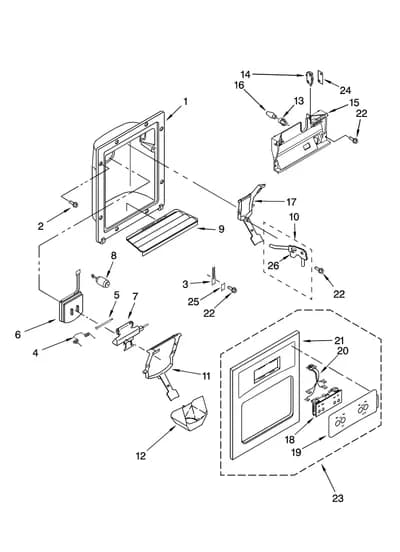

DISPENSER FRONT PARTS
Parts in DISPENSER FRONT PARTS
23 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | N/P FOR FIELD INSTALLABLE ICEMAKER REPAIR PARTS LIST, REFER TO MODEL 106.8560 | - |
| 2 |  | WP3196557replaces 3196537 Refrigerator Screw | $2.30 Part Advantage |
| 3 |  | WP2194719replaces 2194719 Refrigerator Dispenser Lever Retainer | $3.72 Part Advantage |
| 4 |  | WPW10224328replaces 2256199 Refrigerator Spring | $31.40 Part Advantage |
| 5 |  | WP2196195replaces 2196195 Refrigerator Ice Chute Door Hinge Pin | $8.56 RepairClinic |
| 6 |  | WP2180353replaces 2180353 Refrigerator Ice Dispenser Door | $6.99 Part Advantage |
| 7 |  | Refrigerator Mechanism | Discontinued |
| 8 | | Refrigerator Mechanism | Discontinued |
| 9 |  | WP2206670Wreplaces 2206670W Refrigerator Dispenser Overflow Grille | $53.20 PartSelect |
| 10 |  | 8201537replaces 2209718 Refrigerator Fitting (Black) | $50.49 Part Advantage |
| 11 |  | Refrigerator Arm Dispenser (White) | Discontinued |
| 12 |  | WP2180224replaces 2180224 Refrigerator Ice Chute | $6.75 Part Advantage |
| 13 |  | Refrigerator Light Socket | - |
| 14 |  | WP2162361replaces 2162361 Refrigerator Dispenser Switch | $8.06 Part Advantage |
| 15 |  | WP2180226replaces 2183771 Refrigerator Bracket | $5.98 Part Advantage |
| 16 |  | WP22002263replaces 3406124 Dispenser Bulb | $7.60 Part Advantage |
| 17 |  | WPW10152858replaces 2195090W Refrigerator Arm Dispenser (White) | $40.01 Parts Dr |
| 20 | | Refrigerator Wire Harness | - |
| 22 |  | WP3400906replaces 489000 Refrigerator Screw | $7.43 ApplianceParts Pro |
| 23 | – | 2301455W Refrigerator Cover | - |
| 24 | | 625834NLA Spacer | Discontinued |
| 25 |  | WP2195051replaces 2195051 Refrigerator Dispenser Lever Strain Relief Clip | $7.48 ApplianceParts Pro |
| 26 |  | WP2304673replaces 2188355 Refrigerator Bracket | $7.92 Parts Dr |
