Model
Kenmore 106.56584500
Refrigerator (Kenmore 10656584500)
Parts Sections (11)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelKenmore
106.56584500Refrigerator (Kenmore 10656584500)
11 diagrams354 parts
Parts Sections (11)
Diagram

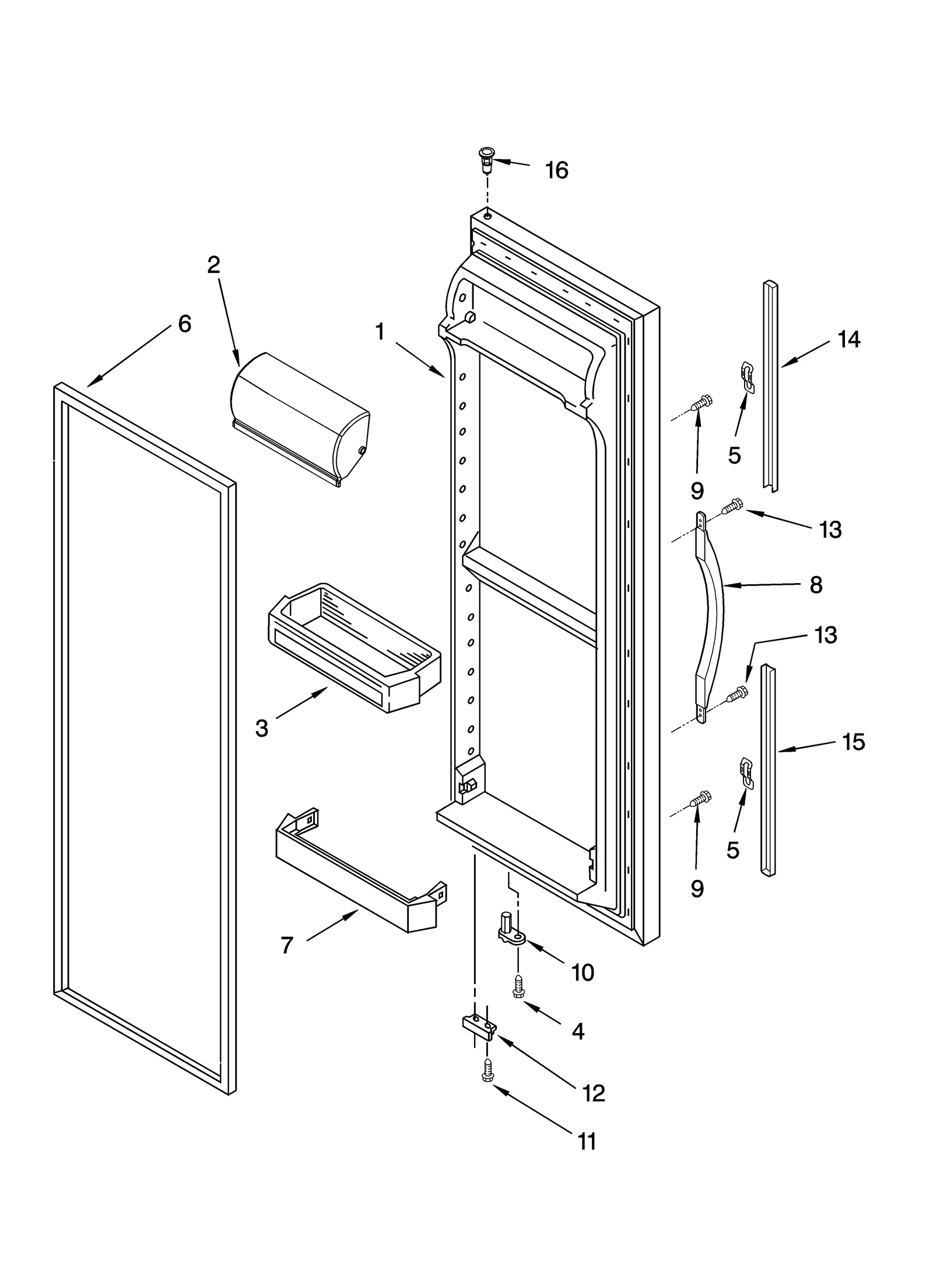

REFRIGERATOR DOOR PARTS
Parts in REFRIGERATOR DOOR PARTS
27 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | 2206682W Refrigerator Door Assembly (White) | - |
| 1A | – | 2206682T Refrigerator Door Assembly (Biscuit) | - |
| 1B | – | 2206682B Refrigerator Door Assembly (Black) | - |
| 1C | – | 2206682L Refrigerator Door Assembly (Stainless) | - |
| 2 |  | WP2256101replaces 2256101 Refrigerator Door Shelf Compartment Cover | $39.75 Part Advantage |
| 3 |  | WPW10321304replaces 2198449 Refrigerator Cantilever Shelf | $24.24 Part Advantage |
| 4 |  | WP3400012replaces 3400012 Refrigerator Door Hinge Screw | $7.47 PartSelect |
| 5 |  | WP2195327replaces 2195327 Refrigerator Door Trim Clip | $5.95 ApplianceParts Pro |
| 6 |  | 2159075replaces 2221302 Refrigerator Gasket Panel (White) | $116.86 Part Advantage |
| 6A |  | 2159083replaces 2221313 Refrigerator Gasket Panel (Black) | $102.38 Part Advantage |
| 7 |  | WP2156022replaces 2156022 Refrigerator Door Bin | $36.34 Part Advantage |
| 8 |  | 2304413WNLA Refrigerator Handle Assembly | Discontinued |
| 8A | | 2304413TNLA Refrigerator Handle | Discontinued |
| 8B |  | Refrigerator Handle (Black) | Discontinued |
| 9 |  | WP3400852replaces 3400852 Refrigerator Screw | $7.95 ApplianceParts Pro |
| 10 |  | WP2182179replaces 2182178 Refrigerator Door Cam (Black) | $2.96 Amazon |
| 11 |  | WP489483replaces 489420 SCREW | $11.77 PartSelect |
| 12 |  | WP2206629Breplaces 2206629 Refrigerator Door Stop Bracket | $14.98 Parts Dr |
| 12A | | WP2206629Breplaces 2206629B Refrigerator Bracket (Black) | $14.98 Parts Dr |
| 13 |  | WP489491replaces 489491 Refrigerator Screw | $3.66 Parts Dr |
| 14 | | 2194707WNLA Refrigerator Door Handle Trim | Discontinued |
| 14A | | 2194707TNLA Refrigerator Extension | Discontinued |
| 14B | | 2194707BNLA Refrigerator Extension | Discontinued |
| 15 | | 2194705WNLA Refrigerator Door Handle Trim | Discontinued |
| 15A | | 2194705TNLA Refrigerator Extension | Discontinued |
| 15B | | WP2194705Breplaces 2194705B Refrigerator Door Trim (Black) | - |
| 16 |  | WP2182181replaces 2308091 Refrigerator Thimble | $3.55 Part Advantage |
