Model
Kenmore 106.56586500
Side-By-Side Refrigerator (Kenmore 10656586500)
Parts Sections (11)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelKenmore
106.56586500Side-By-Side Refrigerator (Kenmore 10656586500)
11 diagrams354 parts
Parts Sections (11)
Diagram

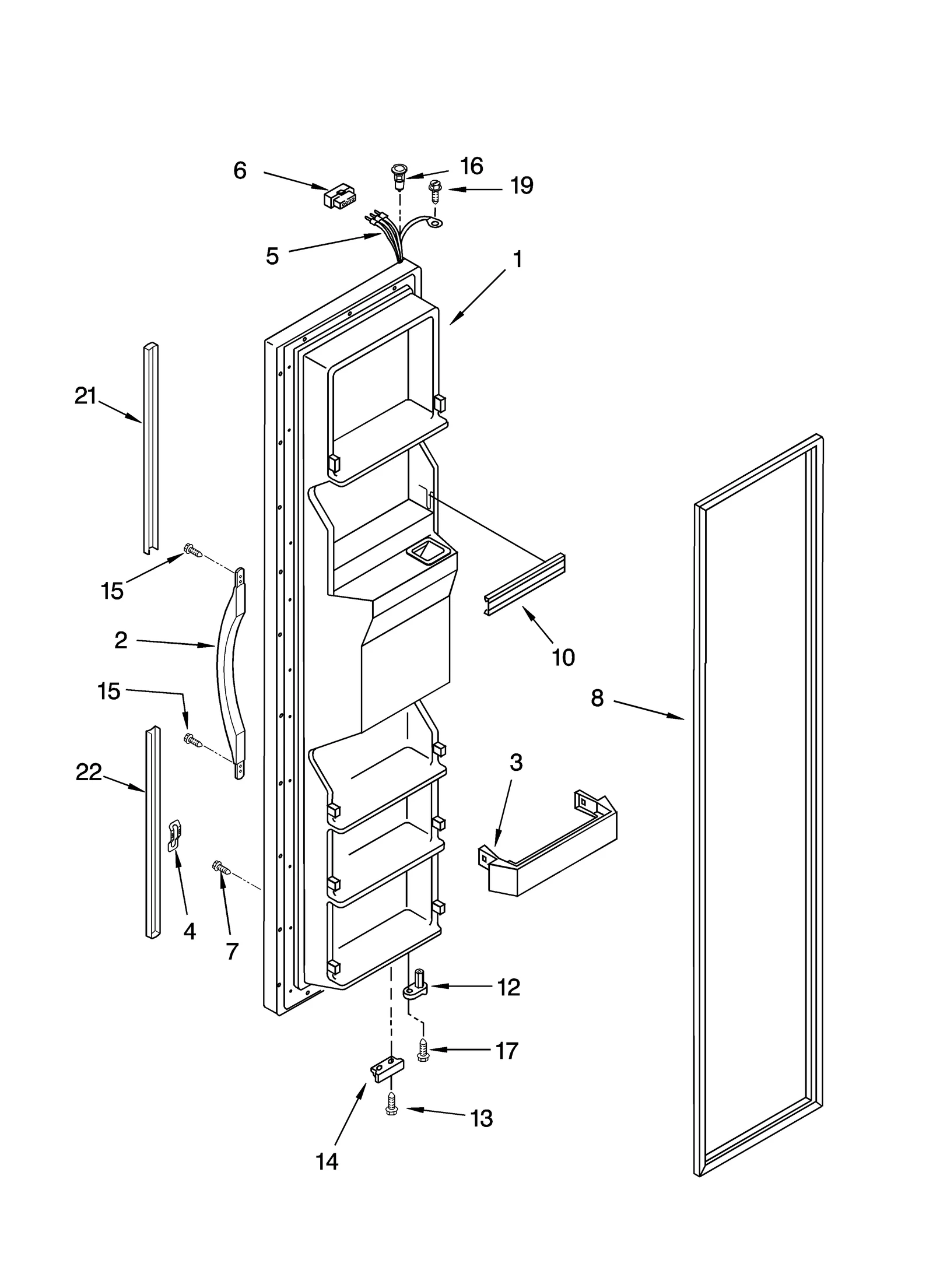

FREEZER DOOR PARTS
Parts in FREEZER DOOR PARTS
29 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | 2305808W Freezer Door Assembly (White) | - |
| 1A | – | 2305808T Door Assy-fc | - |
| 1B | – | 2305808B Door Assy-fc | - |
| 1C | – | 2305808L Refrigerator Door | - |
| 2 |  | 2304413WNLA Refrigerator Handle Assembly | Discontinued |
| 2A | | 2304413TNLA Refrigerator Handle | Discontinued |
| 2B |  | Refrigerator Handle (Black) | Discontinued |
| 3 |  | WP2171157replaces 2171157 Refrigerator Freezer Door Shelf Trim | $55.29 PartSelect |
| 4 |  | WP2195327replaces 2195327 Refrigerator Door Trim Clip | $5.95 ApplianceParts Pro |
| 5 |  | 2311641replaces 2206601 Refrigerator Wire Harness | - |
| 6 |  | WP2154473replaces 2154473 Refrigerator Wire Harness Connector | $15.95 ApplianceParts Pro |
| 7 |  | WP3400852replaces 3400852 Refrigerator Screw | $7.95 ApplianceParts Pro |
| 8 |  | 2159074replaces 2221303 Refrigerator Gasket Panel | $146.38 Parts Dr |
| 8A |  | 2159082replaces 2221314 Refrigerator Gasket Panel | $133.69 Parts Dr |
| 10 |  | WPW10307490replaces 2209681 Refrigerator Door Trim | $7.87 Part Advantage |
| 12 |  | WP2182179replaces 2182179 Refrigerator Door Closer Cam | $2.96 Amazon |
| 13 |  | WP489483replaces 489420 SCREW | $11.77 PartSelect |
| 14 |  | WP2206629Breplaces 2206629 Refrigerator Door Stop Bracket | $14.98 Parts Dr |
| 14A | | WP2206629Breplaces 2206629B Refrigerator Bracket (Black) | $14.98 Parts Dr |
| 15 |  | WP489491replaces 489491 Refrigerator Screw | $3.66 Parts Dr |
| 16 |  | WP2182181replaces 2182181 Refrigerator Door Hinge Bushing | $3.55 Part Advantage |
| 17 |  | WP3400012replaces 3400012 Refrigerator Door Hinge Screw | $7.47 PartSelect |
| 19 |  | WP489128replaces 8281149 Refrigerator Screw | $5.96 Parts Dr |
| 21 | | 2194707WNLA Refrigerator Door Handle Trim | Discontinued |
| 21A | | 2194707TNLA Refrigerator Extension | Discontinued |
| 21B | | 2194707BNLA Refrigerator Extension | Discontinued |
| 22 | | 2194705WNLA Refrigerator Door Handle Trim | Discontinued |
| 22A | | 2194705TNLA Refrigerator Extension | Discontinued |
| 22B | | WP2194705Breplaces 2194705B Refrigerator Door Trim (Black) | - |
