Model
Kenmore 106.56734600
Side-By-Side Refrigerator (Kenmore 10656734600)
Parts Sections (11)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelKenmore
106.56734600Side-By-Side Refrigerator (Kenmore 10656734600)
11 diagrams342 parts
Parts Sections (11)
Diagram

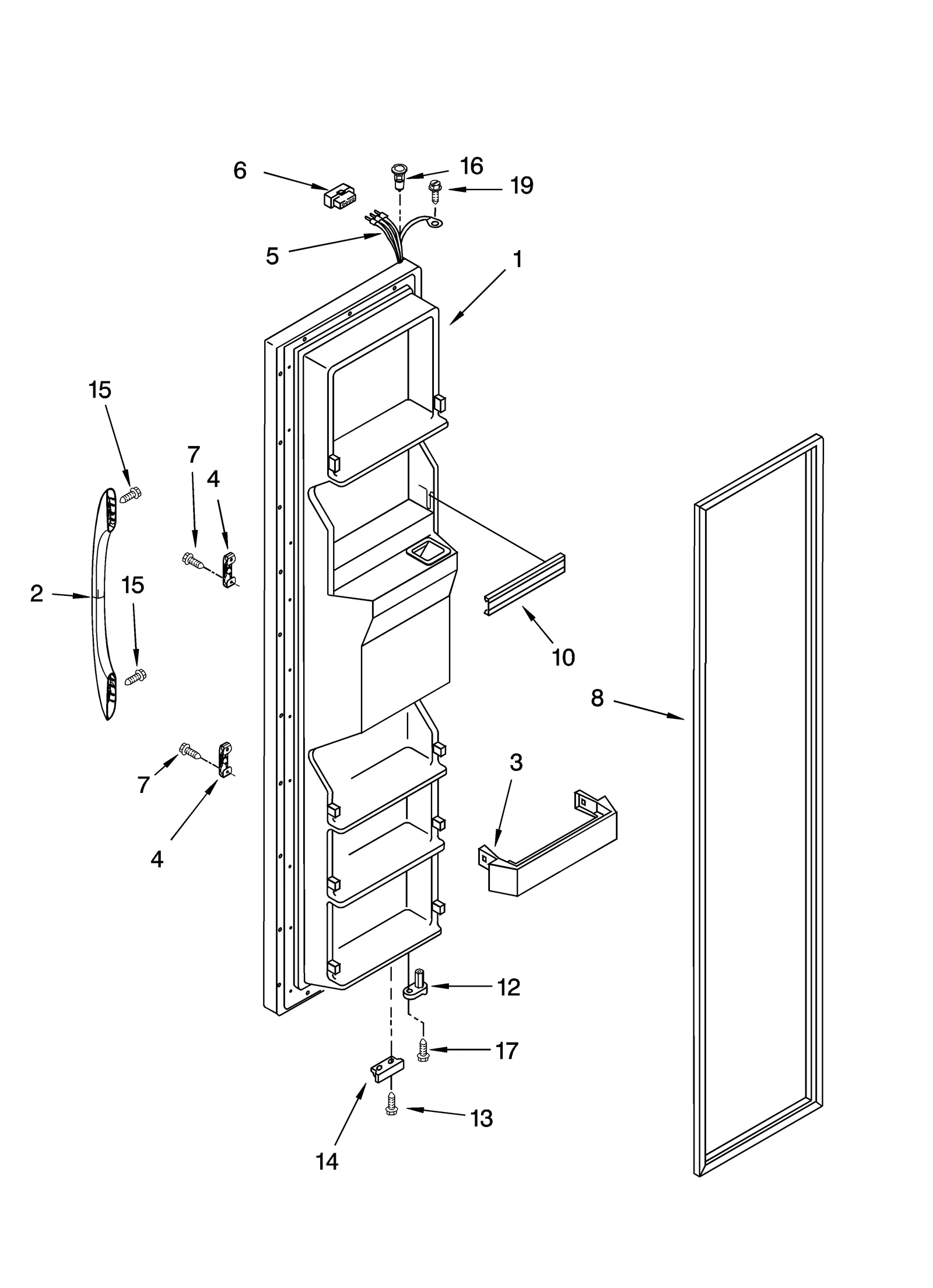

FREEZER DOOR PARTS
Parts in FREEZER DOOR PARTS
23 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | 2315362W Freezer Door Assembly (White) | - |
| 1A | – | 2315362T Freezer Door Assembly (Bisque) | - |
| 1B | – | 2315362B Freezer Door Assembly (Black) | - |
| 1C | – | 2315362LG Freezer Door Assembly (Stainless) | - |
| 2 |  | 2255515WNLA Refrigerator Handle (White) | Discontinued |
| 2A | | 2255515TNLA Door Handle | Discontinued |
| 2B | | 2255515BNLA Refrigerator Handle | Discontinued |
| 3 |  | WP2156021replaces 2156021K Refrigerator Door Trim | - |
| 4 |  | WP2255411replaces 2255411 Refrigerator Door Handle Clip | $11.18 Part Advantage |
| 5 |  | 2311642replaces 2206602 Refrigerator Wire Harness | - |
| 6 |  | WP2154473replaces 2154473 Refrigerator Wire Harness Connector | $15.95 ApplianceParts Pro |
| 7 |  | WP489491replaces 489491 Refrigerator Screw | $3.66 Parts Dr |
| 8 |  | 2159072replaces 2221301 Refrigerator Gasket Panel | $89.31 Part Advantage |
| 8A |  | 2159080replaces 2221312 Refrigerator Gasket Panel (Black) | $142.47 Parts Dr |
| 10 |  | WPW10307490replaces 2209680 Refrigerator Door Trim | $7.87 Part Advantage |
| 12 |  | WP2182179replaces 2182179 Refrigerator Door Closer Cam | $2.96 Amazon |
| 13 |  | WP489483replaces 489420 SCREW | $11.77 PartSelect |
| 14 |  | WP2206629Breplaces 2206629 Refrigerator Door Stop Bracket | $14.98 Parts Dr |
| 14A | | WP2206629Breplaces 2206629B Refrigerator Bracket (Black) | $14.98 Parts Dr |
| 15 |  | WP8533920replaces 8533920 Refrigerator Door Handle Mounting Screw | $3.45 ApplianceParts Pro |
| 16 |  | WP2182181replaces 2182181 Refrigerator Door Hinge Bushing | $3.55 Part Advantage |
| 17 |  | WP3400012replaces 3400012 Refrigerator Door Hinge Screw | $7.47 PartSelect |
| 19 |  | WP489128replaces 8281149 Refrigerator Screw | $5.96 Parts Dr |
