Model
Kenmore 106.56734603
Side-By-Side Refrigerator (Kenmore 10656734603)
Parts Sections (11)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelKenmore
106.56734603Side-By-Side Refrigerator (Kenmore 10656734603)
11 diagrams342 parts

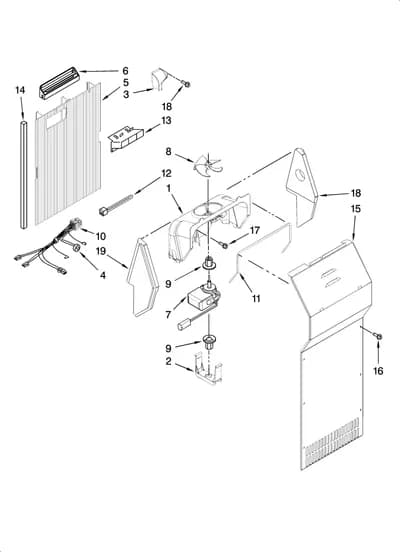

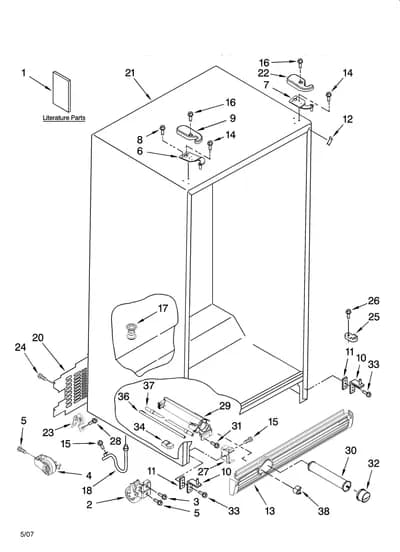

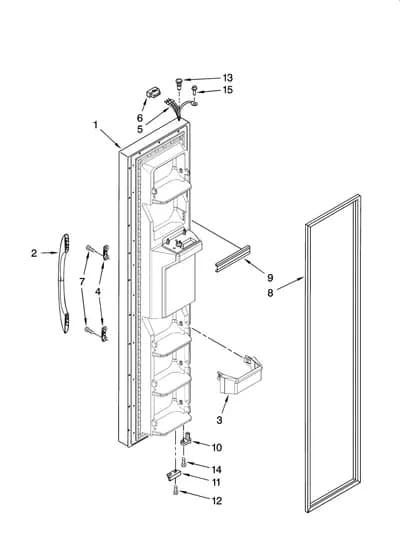

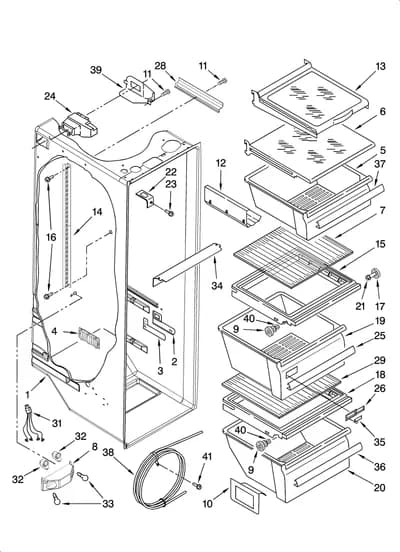

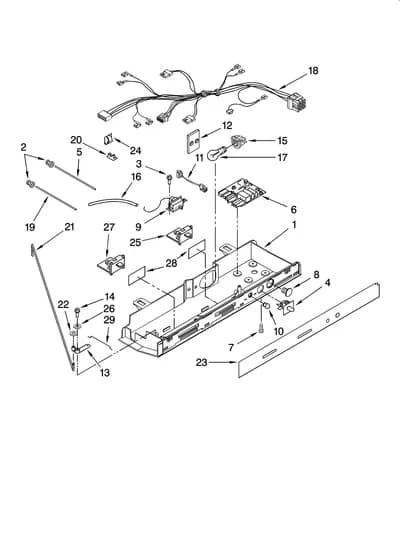

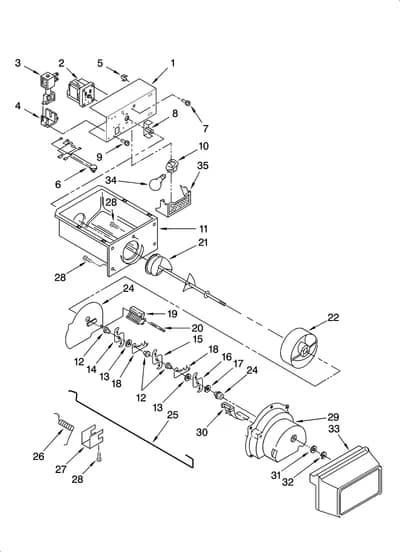

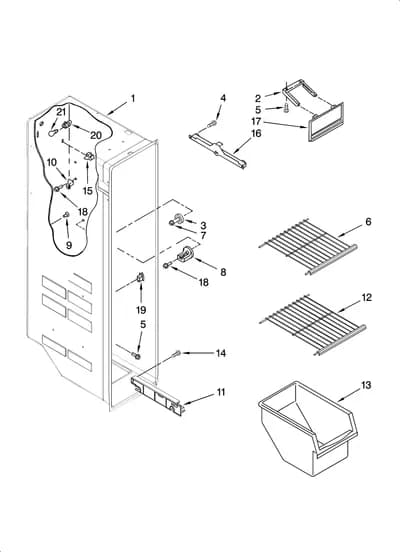

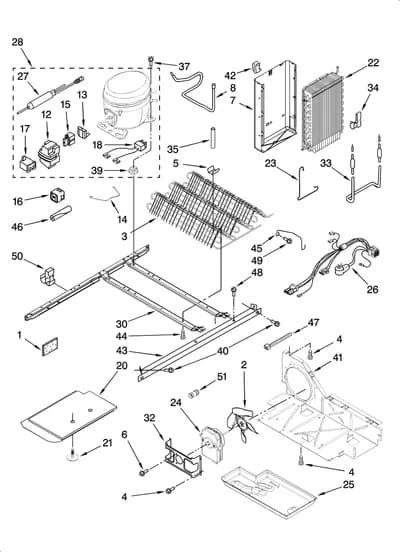

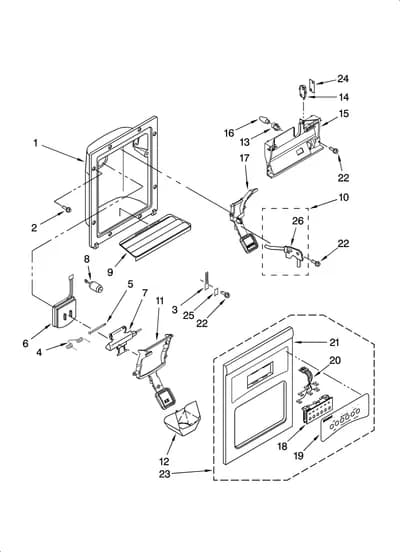

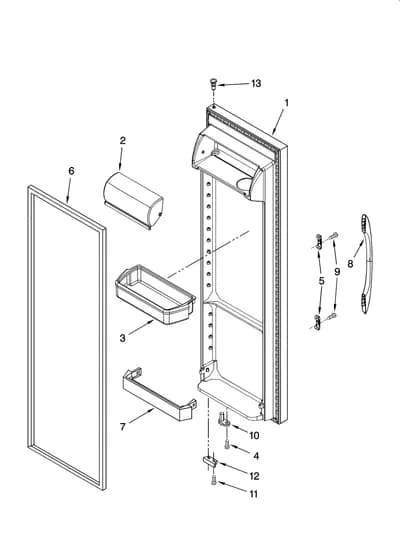

Parts Sections (11)
Diagram

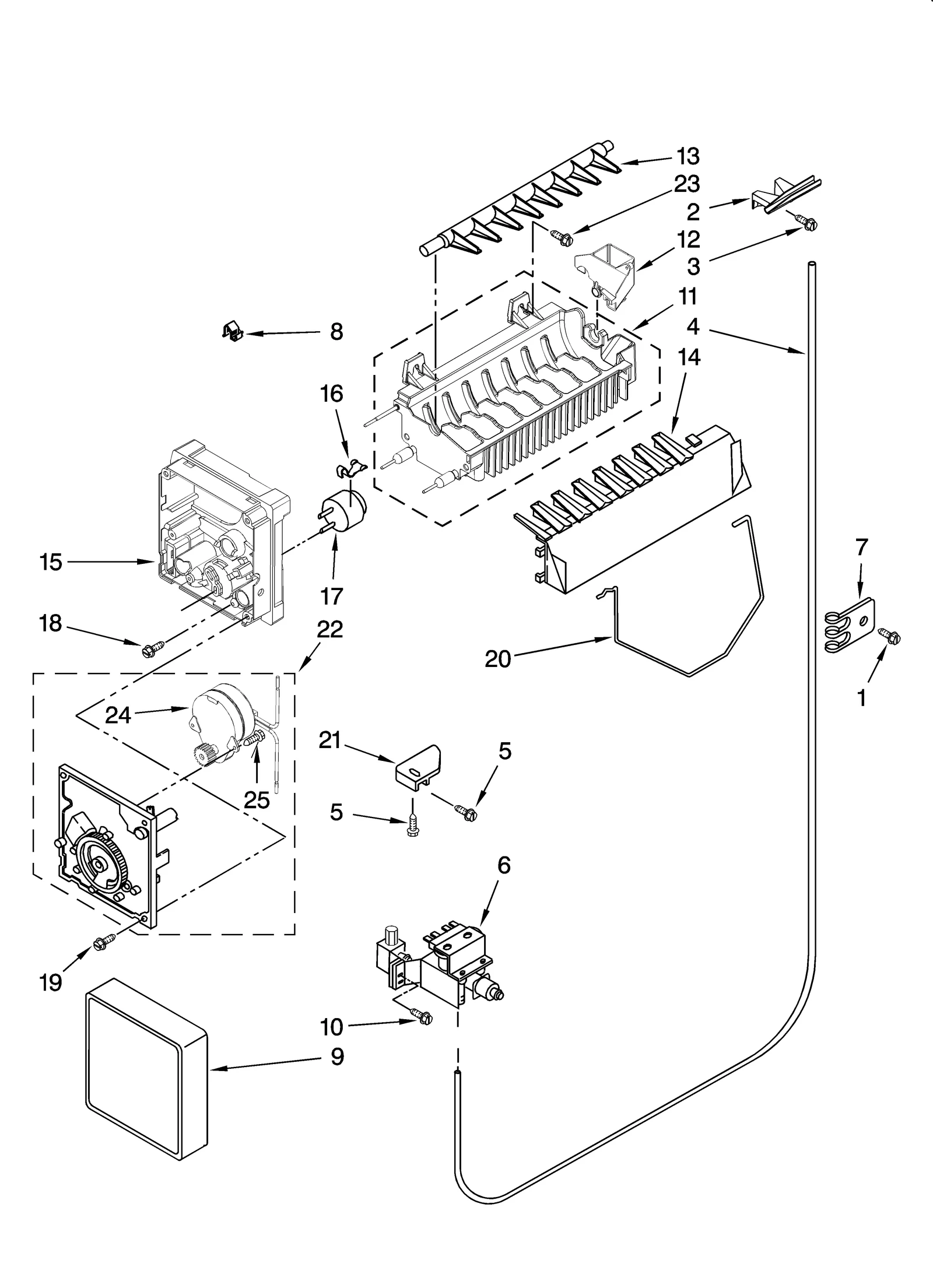

ICEMAKER PARTS, OPTIONAL PARTS (NOT INCLUDED)
Parts in ICEMAKER PARTS, OPTIONAL PARTS (NOT INCLUDED)
46 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|

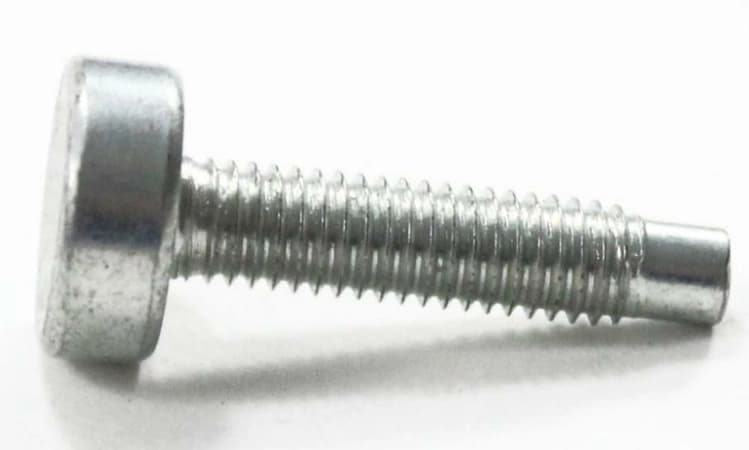

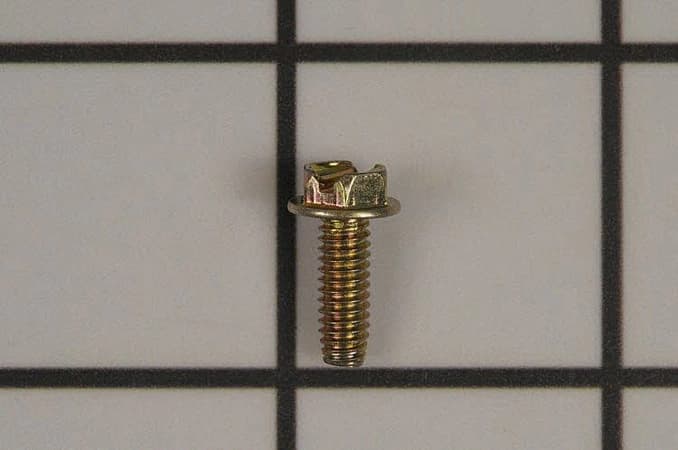

| 1 |  | Screw | $9.62 PartSelect |
| 2 |  | W11505385replaces 2209774 Refrigerator Ice Maker Fill Tube | $8.90 Part Advantage |
| 3 |  | WP489478replaces 489478 Refrigerator Screw | $5.00 RepairClinic |
| 4 |  | W10823511replaces 2304859 Refrigerator Water Tube | $12.22 Part Advantage |
| 6 |  | W10408179replaces 2188708 Refrigerator Water Inlet Valve | $52.99 Parts Dr |
| 7 |  | WP488366replaces 2208136 Clip | $5.75 Parts Dr |
| 8 |  | WP628379replaces 628379 Refrigerator Thermal Fuse Clip | - |
| 9 |  | WPW10289690replaces 2174155 Refrigerator Cover | $7.47 PartSelect |
| 10 |  | WPW10141625replaces 488649 Screw | $21.34 ApplianceParts Pro |
| 11 |  | WPW10190929replaces 628228 Refrigerator Ice Mold | $146.64 Parts Dr |
| 12 |  | W10122561replaces 628515 Refrigerator Fill Cup | $9.34 Part Advantage |
| 13 |  | WP627843replaces 627843 Refrigerator Ice Maker Cube Ejector | $29.33 Part Advantage |
| 14 |  | WP2182124replaces 2182124 Refrigerator Ice Maker Cube Ejector | $28.80 Parts Dr |
| 15 |  | WP2195914replaces 2194712 Ice Maker Housing | $41.03 Parts Dr |
| 16 |  | WP2315522replaces 2315522 Refrigerator Ice Maker Thermostat Retainer | - |

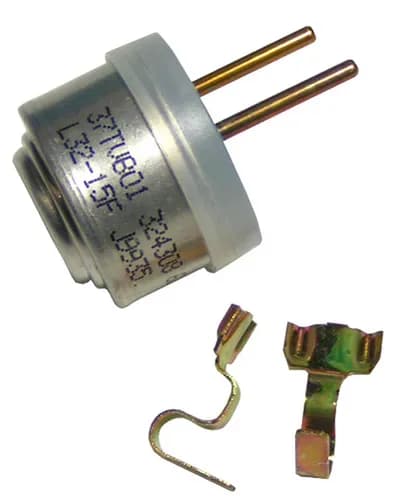

| 17 |  | WP627985replaces 628397 Refrigerator Thermostat | $42.69 Part Advantage |
| 18 |  | Kirkland Refrigerator Ice Maker Support Screw | $8.78 Part Advantage |
| 19 |  | WP681249replaces 489276 SCREW | $2.30 Part Advantage |
| 20 |  | W11342242replaces 2304354 Refrigerator Ice Maker Shut-Off Arm | $25.98 Part Advantage |
| 21 |  | W11500948replaces 628320 Refrigerator Ice Maker Leveling Bracket | $11.27 Part Advantage |
| 22 |  | 8201515replaces 626691 Motor Mold | $60.91 Part Advantage |
| 23 |  | WP488163replaces 488208 SCREW | $3.38 Part Advantage |
| 24 | | 8201515replaces 626683 Ice Motor | $60.91 Part Advantage |
| 25 |  | Refrigerator Ice Maker Motor Screw | $7.09 RepairClinic |

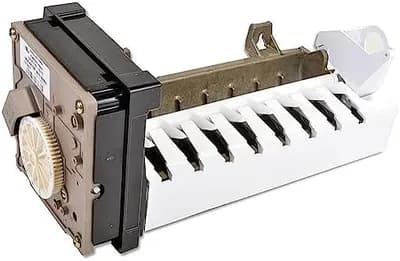

| 100 |  | WPW10190965replaces 626662 Refrigerator Ice Maker | $58.51 Part Advantage |

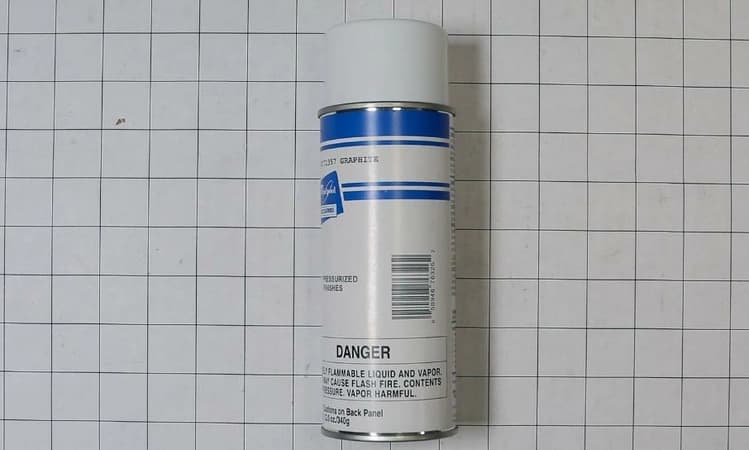

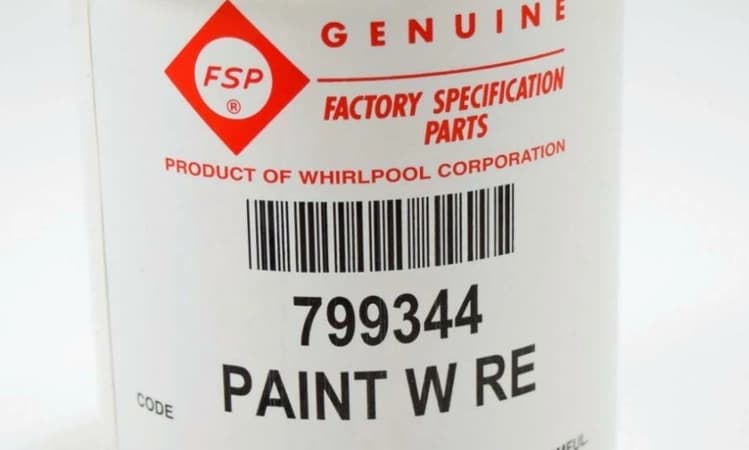

| NI | | Paint (Graphite) | - |
| NI | | 1117510NLA Refrigerator Ice Maker Torx Key Wrench | Discontinued |
| NI |  | Sears Refrigerator Permagum Sealer | $27.68 Part Advantage |
| NI |  | Spray Paint (White) | $11.79 Amazon |
| NI |  | Spray Paint | $18.35 Parts Dr |
| NI | | 4392900NLA Paint, Bsq | Discontinued |
| NI |  | Bisq Paint | $36.96 Parts Dr |
| NI | | W11238399replaces 479502 Refrigerator Vinyl Tape | - |
| NI |  | WP503695replaces 503695 Refrigerator Permagum Sealer | $42.84 Parts Dr |
| NI |  | WP542638replaces 542638 Appliance Silicone Lubricant | $22.46 Part Advantage |

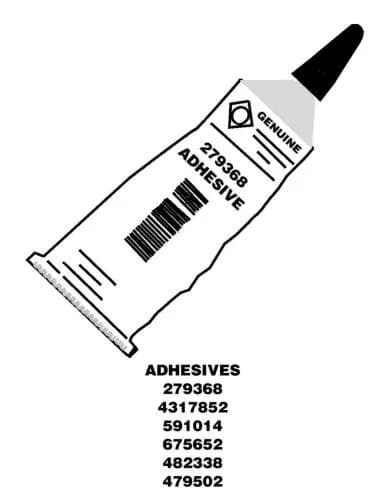

| NI |  | Adhesive | Discontinued |
| NI | – | 799340 Pnt-blk-qrt | - |
| NI |  | Appliance Porcelain Touch-Up Paint, 1-qt (White) | - |
| NI | | 799833NLA Epoxy | Discontinued |
| NI |  | 4210463RWreplaces 8129 Refrigerator Coil Cleaning Brush | $13.01 Part Advantage |
| NI |  | Spray | - |
| NI |  | Refrigerator Compressor Wire Terminal Kit | $15.72 Parts Dr |
| NI |  | Appliance Touch-Up Paint, 0.6-oz (Black) | $5.12 Part Advantage |
| NI |  | 285006replaces 350939 Spray Paint (White) | $29.58 Parts Dr |
| NI |  | Appliance Touch-Up Paint, 0.6-oz (Biscuit) | $6.60 Part Advantage |
| NI |  | Danby Appliance Touch-Up Paint, 0.6-oz (White) | $3.58 Part Advantage |
