ModelKenmore
106.56786603Side-By-Side Refrigerator (Kenmore 10656786603)
11 diagrams348 parts

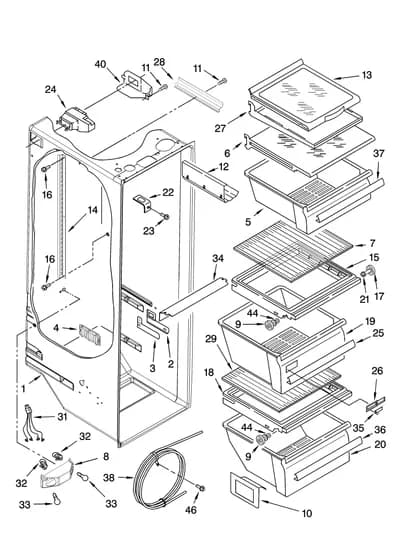

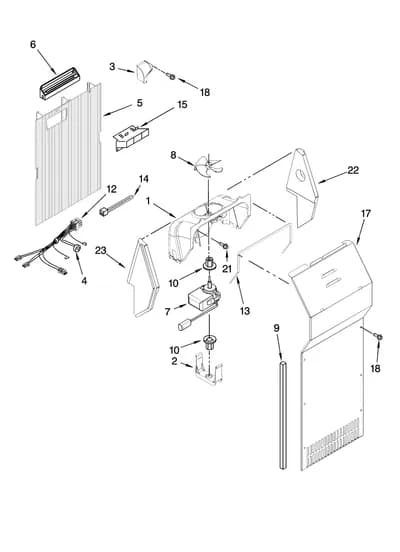

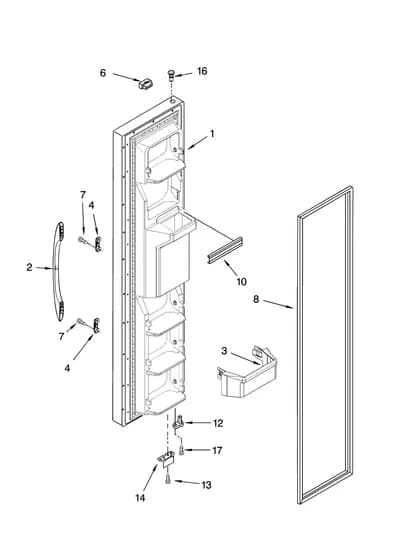

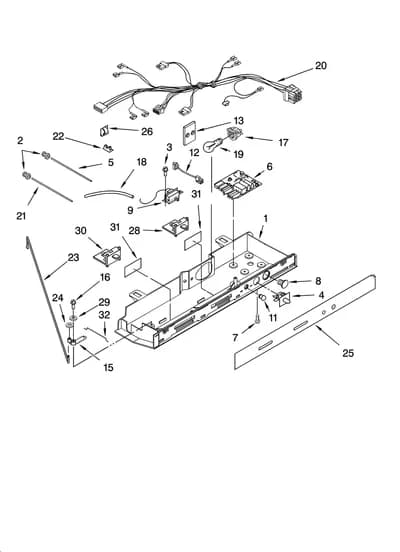

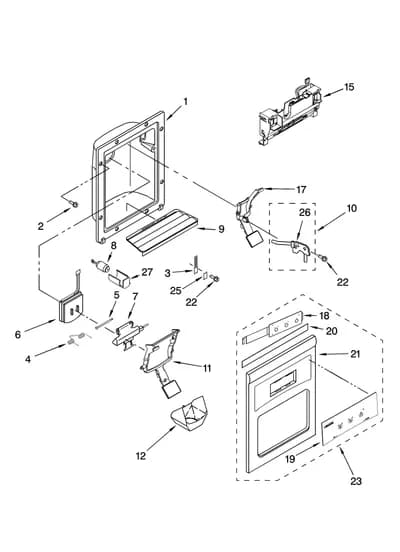

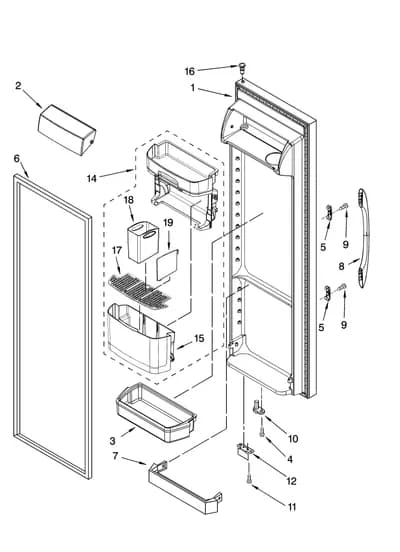

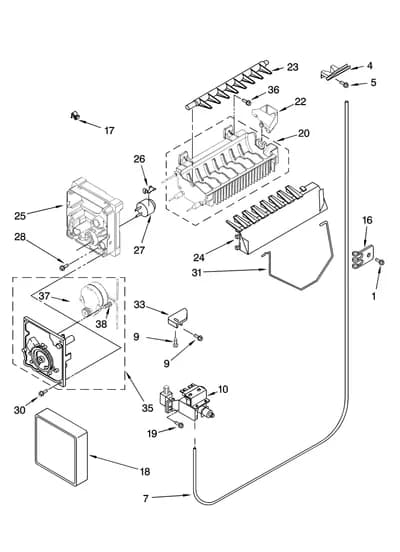

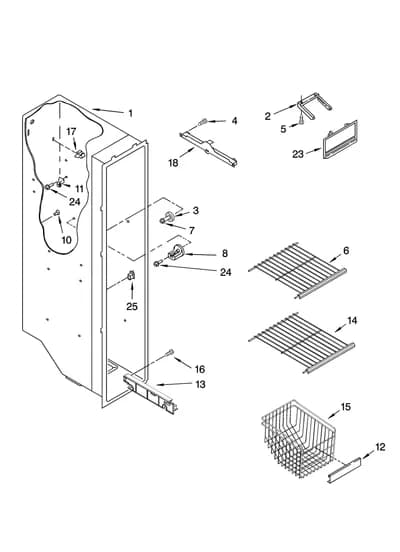

Parts Sections (11)

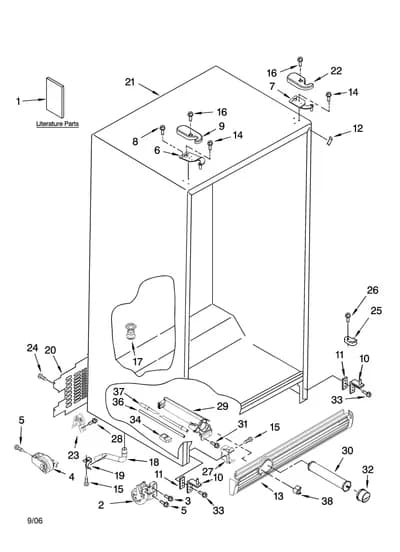

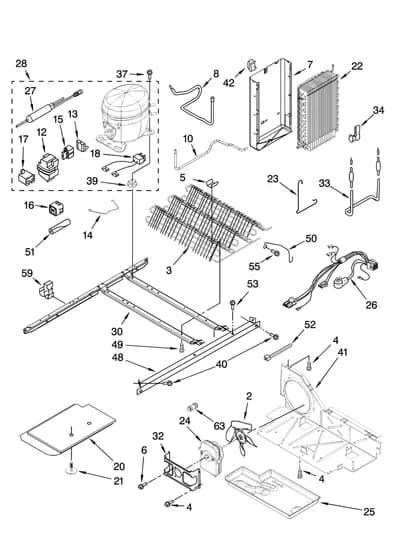

Diagram

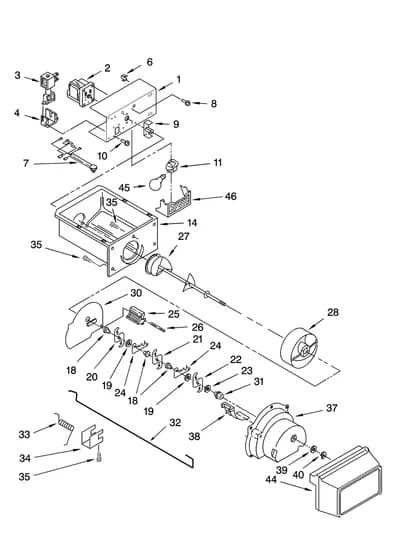

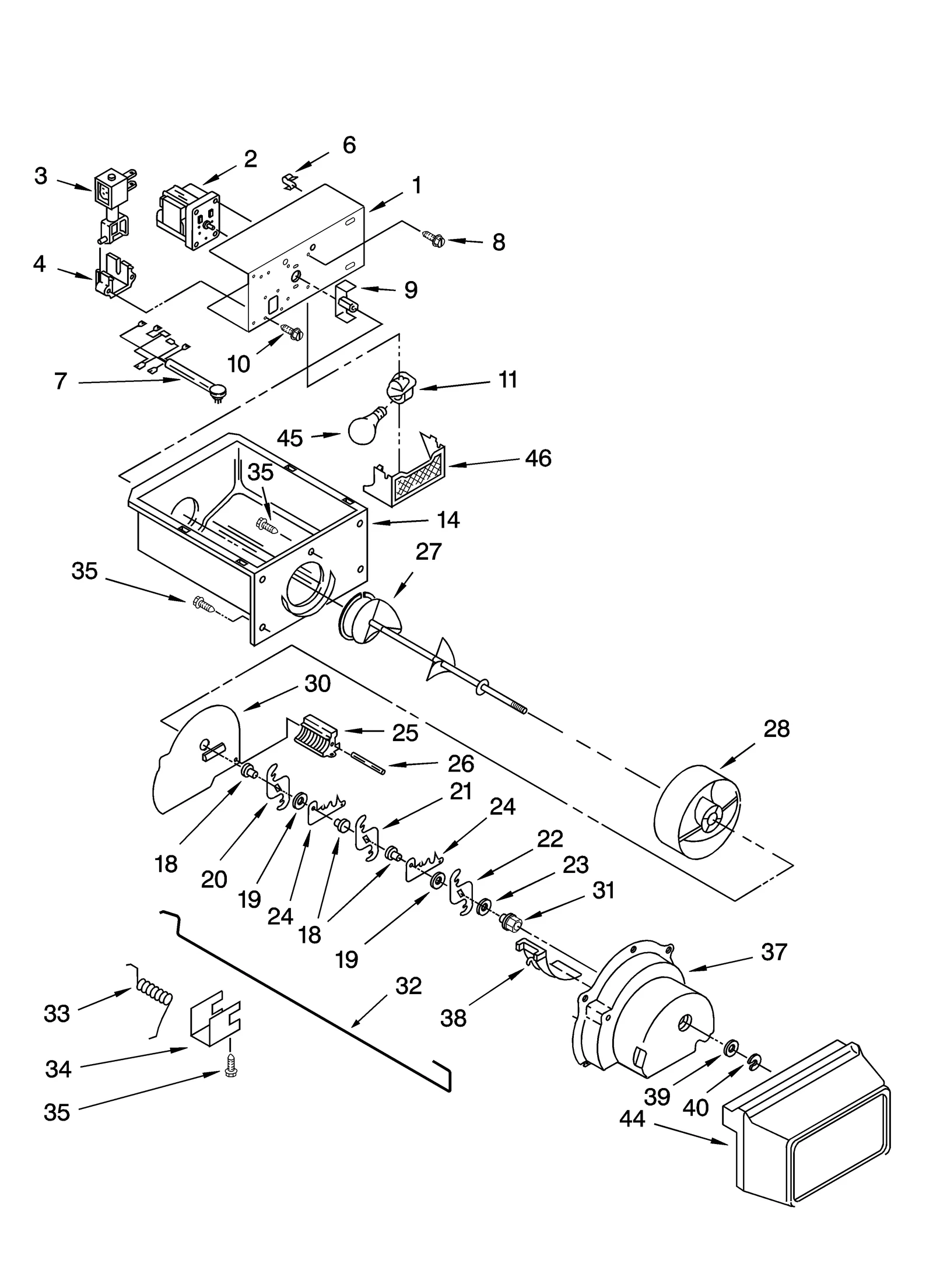

MOTOR AND ICE CONTAINER PARTS
Parts in MOTOR AND ICE CONTAINER PARTS
36 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|

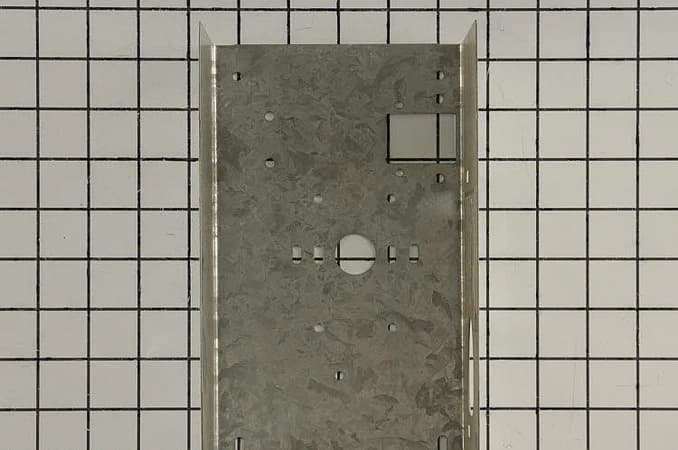

| 1 |  | WPW10284487replaces 2183728 Refrigerator Motor Bracket | - |
| 2 |  | WP2188242replaces 2188385 Refrigerator Motor | $141.93 Part Advantage |
| 3 |  | WP2152713replaces 2152713 Refrigerator Ice Dispenser Solenoid | $97.39 Part Advantage |
| 4 |  | W10850503replaces 2149100 Refrigerator Guide | $7.95 ApplianceParts Pro |
| 6 |  | WP1115374replaces 1115374 Refrigerator Wire Harness Retainer | $5.95 ApplianceParts Pro |
| 7 |  | 2311639replaces 2206501 Refrigerator Auger Motor Wire Harness | - |
| 8 |  | WP489399replaces 489399 Refrigerator Ice Maker Dispenser Motor Bracket Screw | $2.30 Part Advantage |
| 9 |  | WPW10169511replaces 2205716 Refrigerator Ice Maker Dispenser Motor Coupler | $8.87 Part Advantage |
| 10 |  | WP489478replaces 489478 Refrigerator Screw | $5.00 RepairClinic |
| 11 |  | 4387478replaces 2162085 Light Socket | $31.36 Part Advantage |
| 14 |  | WP2196089replaces 2196089 Refrigerator Ice Bin | $76.06 Part Advantage |
| 18 |  | WP1119005replaces 1119005 Refrigerator Spacer | $6.02 Parts Dr |
| 19 |  | WP1119007replaces 1119007 Refrigerator Ice Dispenser Crusher Blade Spacer | $9.95 ApplianceParts Pro |
| 20 |  | W10278731replaces 2257022 Refrigerator Blade | $62.48 RepairClinic |
| 21 |  | W10278732replaces 2257023 Refrigerator Ice Crusher Rotary Blade | - |
| 22 |  | W10278733replaces 2257024 Refrigerator Ice Crusher Rotary Blade | $53.20 PartSelect |
| 23 |  | WP489235replaces 489235 Refrigerator Washer | $5.98 Parts Dr |
| 24 |  | Refrigerator Ice Crusher Fixed Blade | - |
| 25 |  | Refrigerator Ice Crusher Blade Block | - |
| 26 |  | Refrigerator Ice Crusher Blade Block Roll Pin | - |
| 27 |  | W10422851replaces 2196295 Refrigerator Ice Auger | $106.48 Parts Dr |
| 28 |  | 4388736replaces 2209781 Refrigerator Drum | $31.28 Part Advantage |
| 30 |  | W10852691replaces 2171682 Refrigerator Ice Maker Floating Baffle | $14.32 Parts Dr |
| 31 |  | WP1119018replaces 1119018 Refrigerator Ice Crusher Bearing Nut | $9.57 ApplianceParts Pro |
| 32 |  | W11596045replaces 2155231 Refrigerator Ice Bin Control Arm | $13.26 Parts Dr |
| 33 |  | Refrigerator Ice Dispenser Actuator Spring | $12.58 RepairClinic |
| 34 |  | Refrigerator Auger Rod Clip | $6.05 Parts Dr |
| 35 |  | WP488787replaces 488886 SCREW | $11.71 ApplianceParts Pro |
| 37 |  | WPW10185018replaces 2180348 Refrigerator Housing | $52.46 Part Advantage |
| 38 |  | WP1119017replaces 1119017 Refrigerator Deflector | $5.00 RepairClinic |
| 39 |  | Refrigerator Ice Maker Crusher Housing Washer | $21.34 ApplianceParts Pro |
| 40 |  | WP489236replaces 489236 Refrigerator Ice Maker Crusher Housing Retainer Ring | $6.53 Parts Dr |
| 44 | | 2171709NLA Refrigerator Ice Bin Cover, Front | Discontinued |
| 45 |  | W11679940replaces 2255743 Refrigerator Light Bulb | $2.65 Part Advantage |
| 46 |  | WP2171706replaces 2171706 Refrigerator Light Cover | $53.20 PartSelect |
| 100 |  | WPW10317197replaces 2209779 Refrigerator Ice Container | $15.10 Part Advantage |
