Model
Kenmore 106.56993603
Side-By-Side Refrigerator (Kenmore 10656993603)
Parts Sections (11)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelKenmore
106.56993603Side-By-Side Refrigerator (Kenmore 10656993603)
11 diagrams351 parts
Parts Sections (11)
Diagram

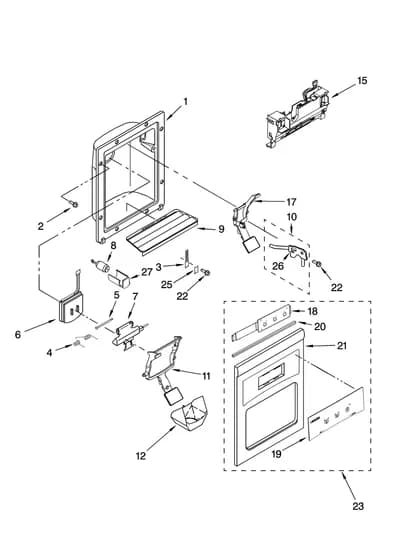

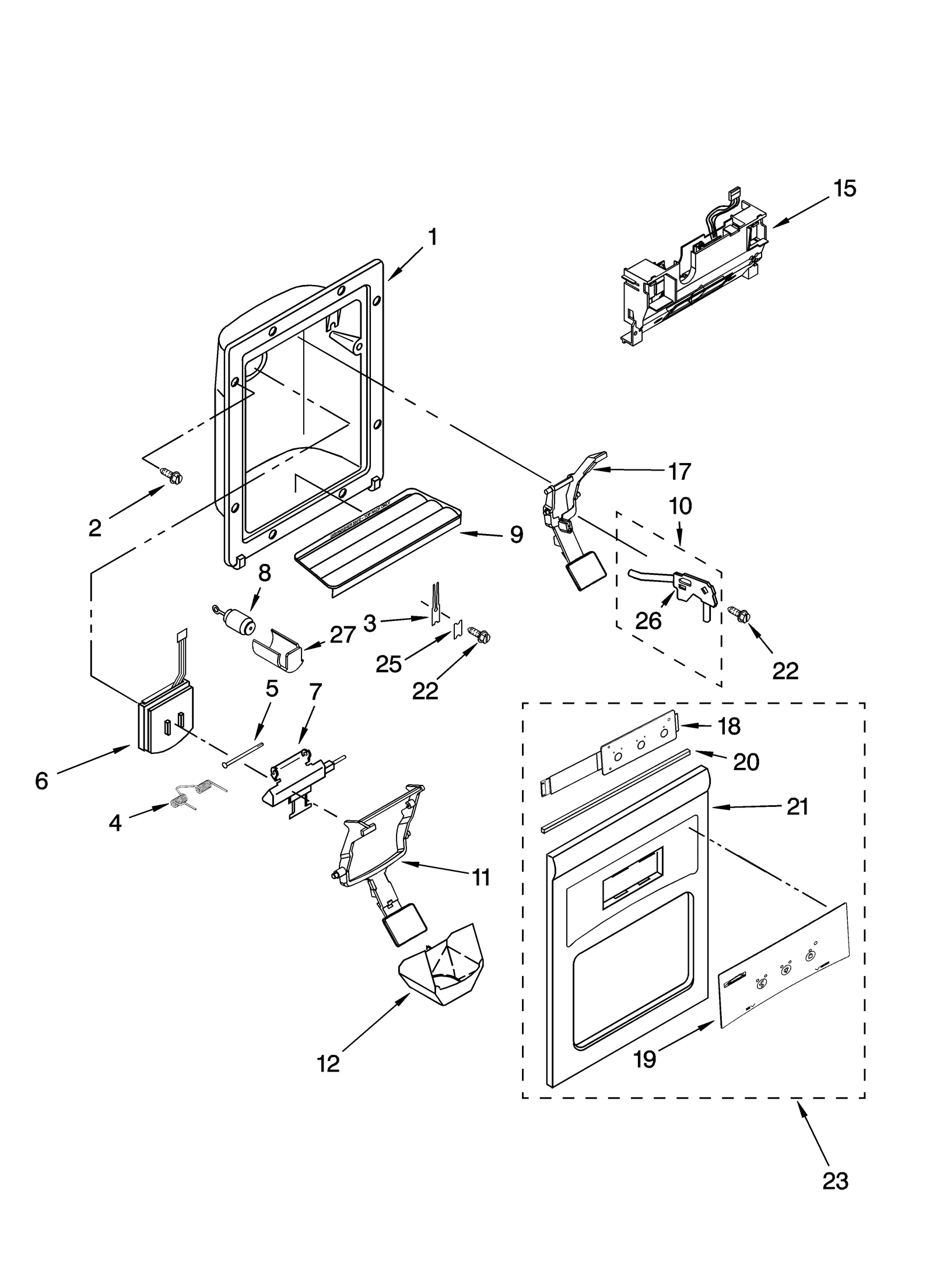

DISPENSER FRONT PARTS
Parts in DISPENSER FRONT PARTS
28 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | N/P FOR FIELD INSTALLABLE ICEMAKER REPAIR PARTS LIST, REFER TO MODEL 106.8560 | - |
| 2 |  | WP3196557replaces 3196537 Refrigerator Screw | $2.30 Part Advantage |
| 3 |  | WP2194719replaces 2194719 Refrigerator Dispenser Lever Retainer | $3.72 Part Advantage |
| 4 |  | WPW10224328replaces 2304772 Refrigerator Spring | $31.40 Part Advantage |
| 5 |  | WP2196195replaces 2196195 Refrigerator Ice Chute Door Hinge Pin | $8.56 RepairClinic |
| 6 |  | WP2180353replaces 2180353 Refrigerator Ice Dispenser Door | $6.99 Part Advantage |
| 7 |  | Refrigerator Mechanism | Discontinued |
| 8 | | Refrigerator Mechanism | Discontinued |
| 9 |  | WP2206670Wreplaces 2206670W Refrigerator Dispenser Overflow Grille | $53.20 PartSelect |
| 9A |  | WP2206670Treplaces 2206670T Refrigerator Dispenser Drip Tray | $52.95 ApplianceParts Pro |
| 9B |  | WP2206670Breplaces 2206670B Refrigerator Dispenser Overflow Grille | $19.57 Part Advantage |
| 10 |  | 8201537replaces 2304317 Refrigerator Fitting | $50.49 Part Advantage |
| 11 |  | Refrigerator Arm Dispenser (White) | Discontinued |
| 11A | | Refrigerator Arm Dispenser (Off-White) | Discontinued |
| 11B | | Refrigerator Arm Dispenser (Black) | Discontinued |
| 12 |  | WP2180224replaces 2180224 Refrigerator Ice Chute | $6.75 Part Advantage |
| 15 | – | 2304178 Refrigerator Bracket | - |
| 17 |  | WPW10152858replaces 2180271 Refrigerator Arm Dispenser (White) | $40.01 Parts Dr |
| 17A |  | Refrigerator Water Dispenser Level (Bisque) | - |
| 17B |  | WPW10152859replaces 2180273 Refrigerator Arm Dispenser (Black) | $56.33 PartSelect |
| 20 |  | Refrigerator Front Cover Gasket | - |
| 22 |  | WP3400906replaces 489000 Refrigerator Screw | $7.43 ApplianceParts Pro |
| 23 | – | 2318455W Refrigerator Cover (White) | - |
| 23A | – | 2318455T Refrigerator Cover | - |
| 23B | – | 2318455B Refrigerator Cover (Black) | - |
| 25 |  | WP2195051replaces 2195051 Refrigerator Dispenser Lever Strain Relief Clip | $7.48 ApplianceParts Pro |
| 26 |  | WP2304673replaces 2304673 Refrigerator Dispenser Bracket | $7.92 Parts Dr |
| 27 | | 2252127NLA Refrigerator Dispenser Ice Chute Door Motor Support | Discontinued |
