Model
Kenmore 106.57984701
Side-By-Side Refrigerator (Kenmore 10657984701)
Parts Sections (11)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelKenmore
106.57984701Side-By-Side Refrigerator (Kenmore 10657984701)
11 diagrams346 parts
Parts Sections (11)
Diagram

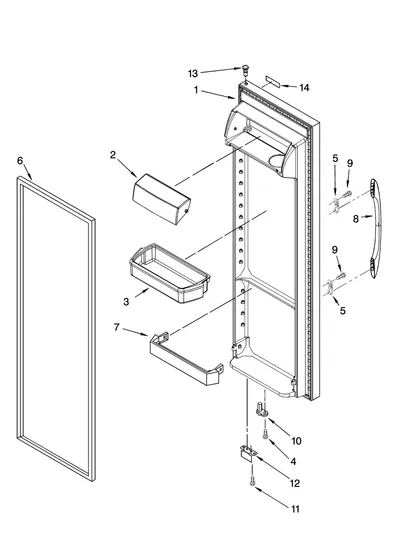

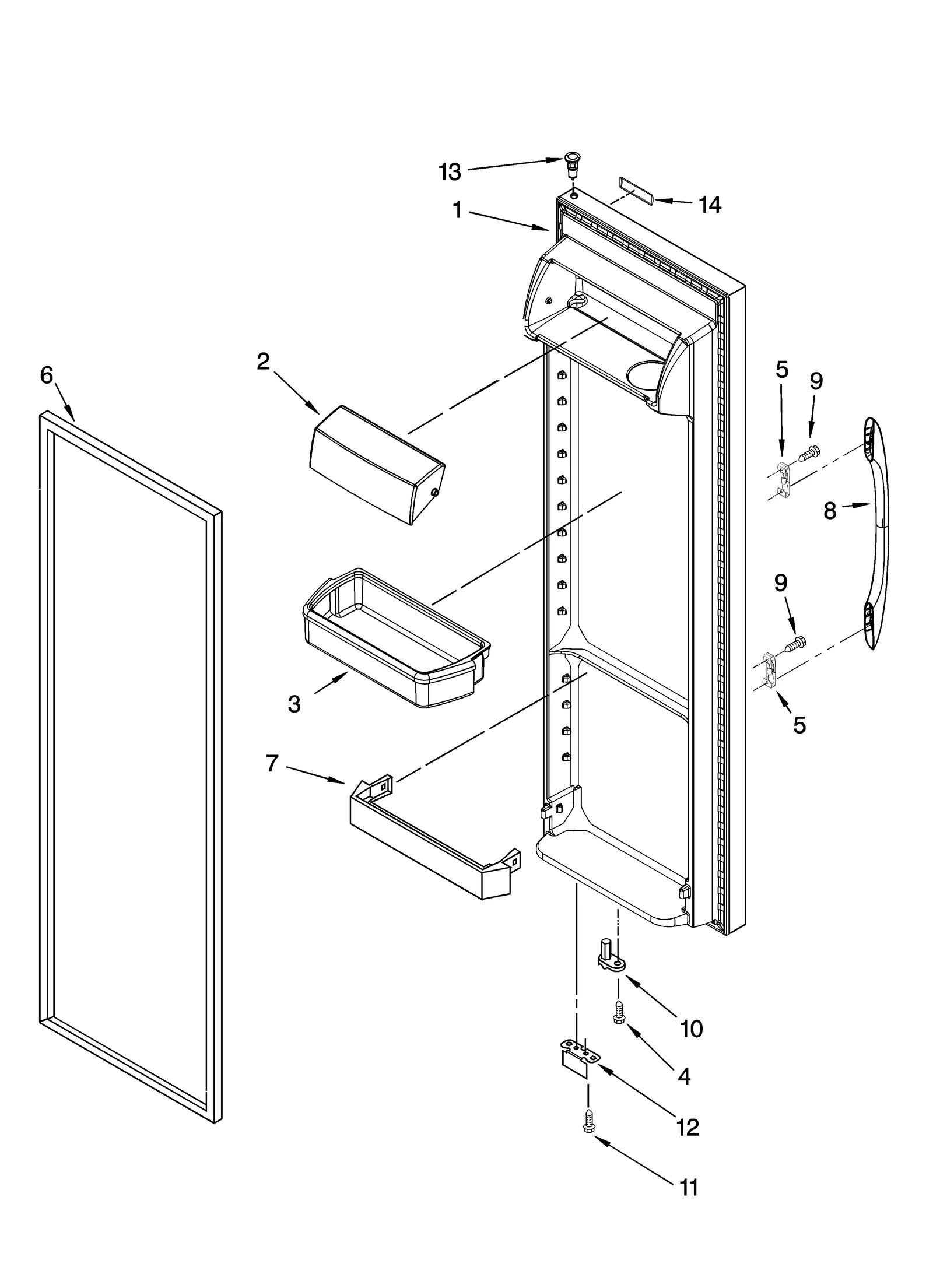

REFRIGERATOR DOOR PARTS
Parts in REFRIGERATOR DOOR PARTS
22 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | 2318481W Refrigerator Door Assembly (White) | - |
| 1A | – | 2318481T Refrigerator Door Assembly (Bisque) | - |
| 1B | – | 2318481B Refrigerator Door Assembly (Black) | - |
| 1C | – | 2318481SB Refrigerator Door Panel | - |
| 1D | – | 2318481LB Refrigerator Door Assembly (Stainless) | - |
| 2 |  | WP2256101replaces 2256101 Refrigerator Door Shelf Compartment Cover | $39.75 Part Advantage |
| 3 |  | WP2203828replaces 2203828K Refrigerator Cantilever Bin | $41.61 Part Advantage |
| 4 |  | WP3400012replaces 3400012 Refrigerator Door Hinge Screw | $7.47 PartSelect |
| 5 |  | WP2255411replaces 2255411 Refrigerator Door Handle Clip | $11.18 Part Advantage |
| 6 |  | 2159075replaces 2221302 Refrigerator Gasket Panel (White) | $116.86 Part Advantage |
| 6A |  | 2159083replaces 2221313 Refrigerator Gasket Panel (Black) | $102.38 Part Advantage |
| 7 |  | WP2156022replaces 2156022 Refrigerator Door Bin | $36.34 Part Advantage |
| 8 |  | 2319714WNLA Refrigerator Door Handle (White) | Discontinued |
| 8A | | WP2319714Treplaces 2319714T Refrigerator Handle Assembly | $24.10 RepairClinic |
| 8B |  | WP2319714Breplaces 2319714B Refrigerator Door Handle (Black) | - |
| 9 |  | WP489491replaces 489491 Refrigerator Screw | $3.66 Parts Dr |
| 10 |  | WP2182179replaces 2182178 Refrigerator Door Cam (Black) | $2.96 Amazon |
| 11 |  | WP489483replaces 489420 SCREW | $11.77 PartSelect |
| 12 | | 2200082NLA Refrigerator Door Stop Bracket | Discontinued |
| 12A | | Refrigerator Door Stop (Black) | - |
| 13 |  | WP2182181replaces 2200087 Refrigerator Thimble | $3.55 Part Advantage |
| 14 | | Nameplate-ke | - |
