Model
Kenmore 106.57999700
Side-By-Side Refrigerator (Kenmore 10657999700)
Parts Sections (11)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelKenmore
106.57999700Side-By-Side Refrigerator (Kenmore 10657999700)
11 diagrams347 parts
Parts Sections (11)
Diagram

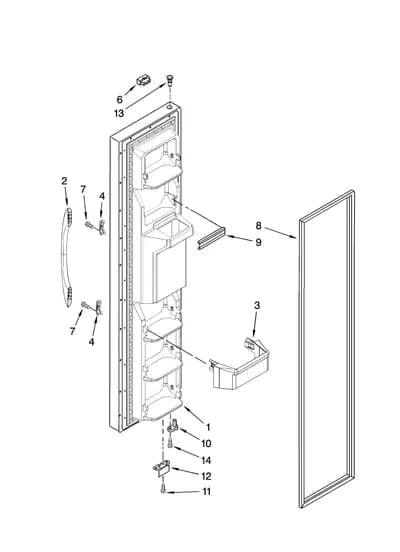

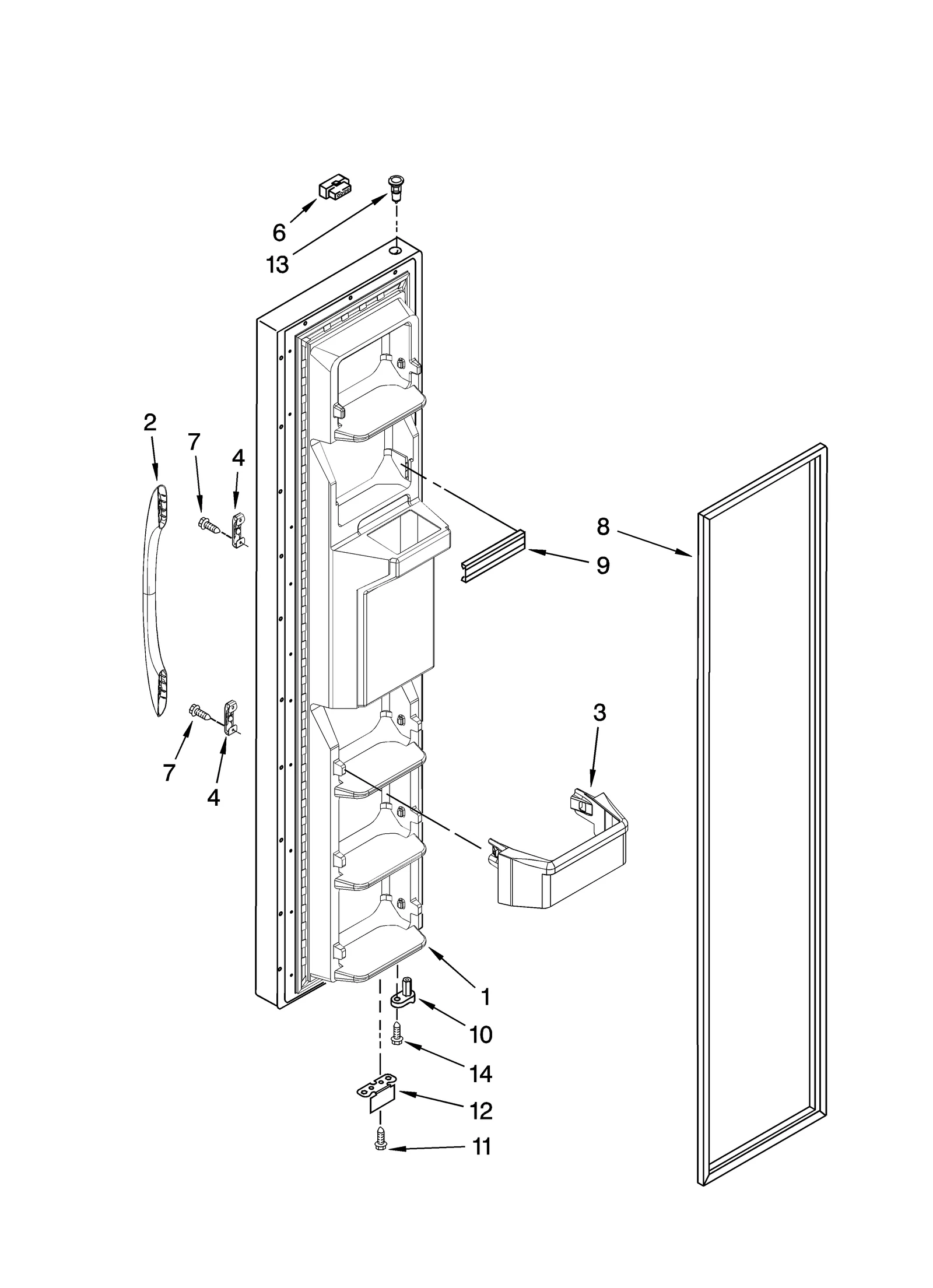

FREEZER DOOR PARTS
Parts in FREEZER DOOR PARTS
21 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | W10140732 Freezer Door Assembly (White) | - |
| 1A | – | W10140734 Refrigerator Door | - |
| 1B | – | W10140733 Freezer Door Assembly (Black) | - |
| 1C | – | W10140736 Refrigerator Door Panel | - |
| 1D | – | W10140735 Freezer Door Assembly (Stainless) | - |
| 2 |  | 2319714WNLA Refrigerator Door Handle (White) | Discontinued |
| 2A | | WP2319714Treplaces 2319714T Refrigerator Handle Assembly | $24.10 RepairClinic |
| 2B |  | WP2319714Breplaces 2319714B Refrigerator Door Handle (Black) | - |
| 3 |  | WP2171157replaces 2171157K Refrigerator Door Trim | $55.29 PartSelect |
| 4 |  | WP2255411replaces 2255411 Refrigerator Door Handle Clip | $11.18 Part Advantage |
| 6 |  | WP2154473replaces 2154473 Refrigerator Wire Harness Connector | $15.95 ApplianceParts Pro |
| 7 |  | WP489491replaces 489491 Refrigerator Screw | $3.66 Parts Dr |
| 8 |  | 2159074replaces 2221303 Refrigerator Gasket Panel | $146.38 Parts Dr |
| 8A |  | 2159082replaces 2221314 Refrigerator Gasket Panel | $133.69 Parts Dr |
| 9 |  | WPW10307490replaces 2209681 Refrigerator Door Trim | $7.87 Part Advantage |
| 10 |  | WP2182179replaces 2182179 Refrigerator Door Closer Cam | $2.96 Amazon |
| 11 |  | WP489483replaces 489420 SCREW | $11.77 PartSelect |
| 12 | | 2200082NLA Refrigerator Door Stop Bracket | Discontinued |
| 12A | | Refrigerator Door Stop (Black) | - |
| 13 |  | WP2182181replaces 2200086 Refrigerator Thimble | $3.55 Part Advantage |
| 14 |  | WP3400012replaces 3400012 Refrigerator Door Hinge Screw | $7.47 PartSelect |
